Introduction

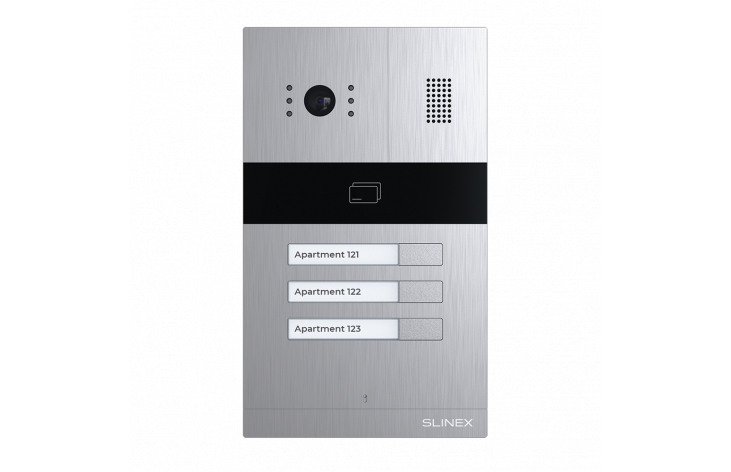

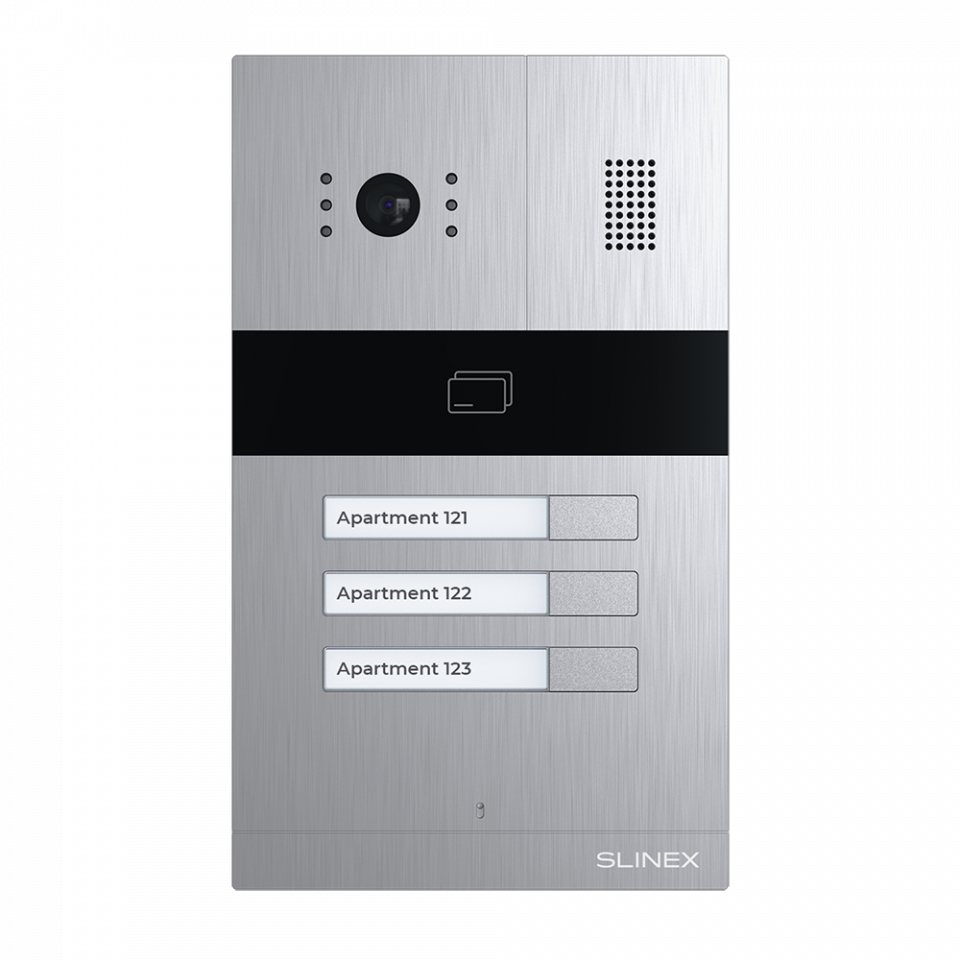

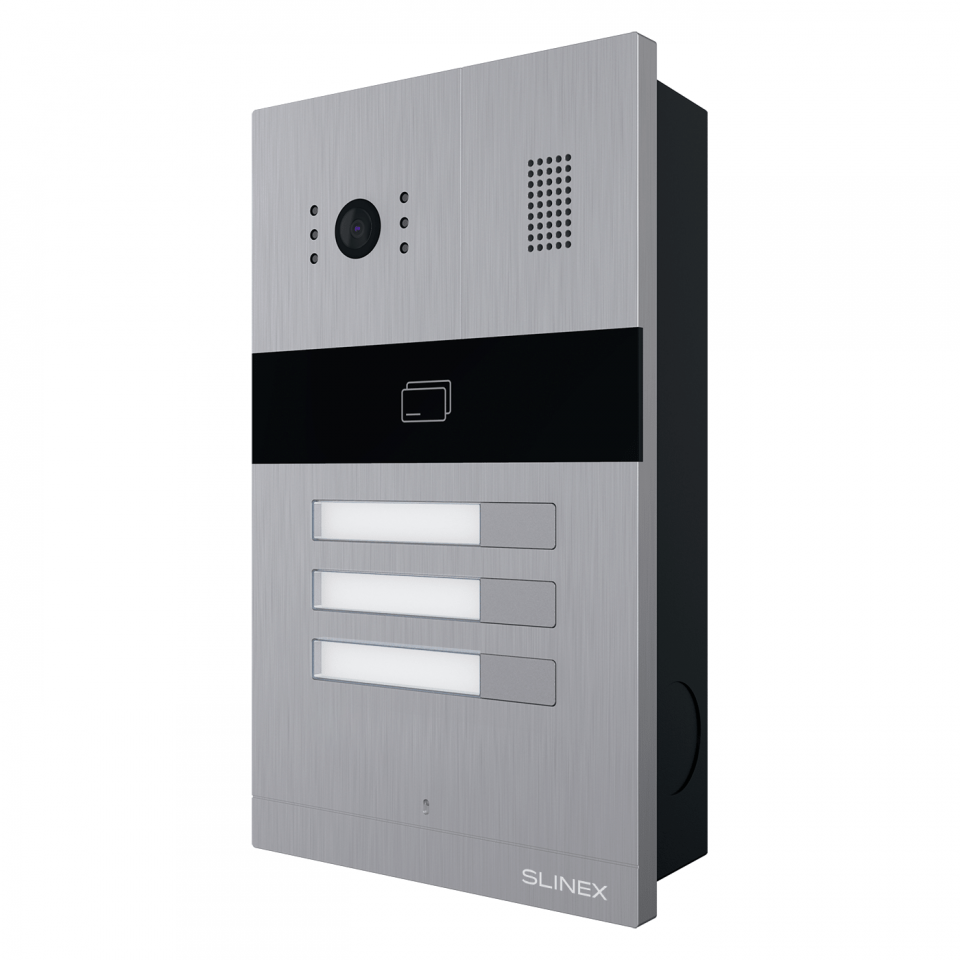

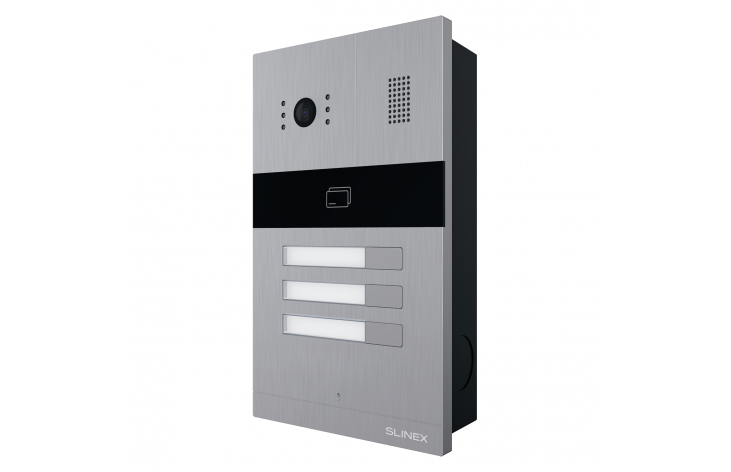

The Slinex MA-03CRHD is an innovative outdoor panel tailored specifically for three subscribers, combining advanced features with an elegant, contemporary design. It features a high-resolution 2MP color camera, an integrated EM-Marin/MIFARE card reader, a mechanical IR filter with six LEDs, and illuminated nameplates. This panel stands out in the market by offering advanced functionality and refined aesthetics compared to similar products.

Applications

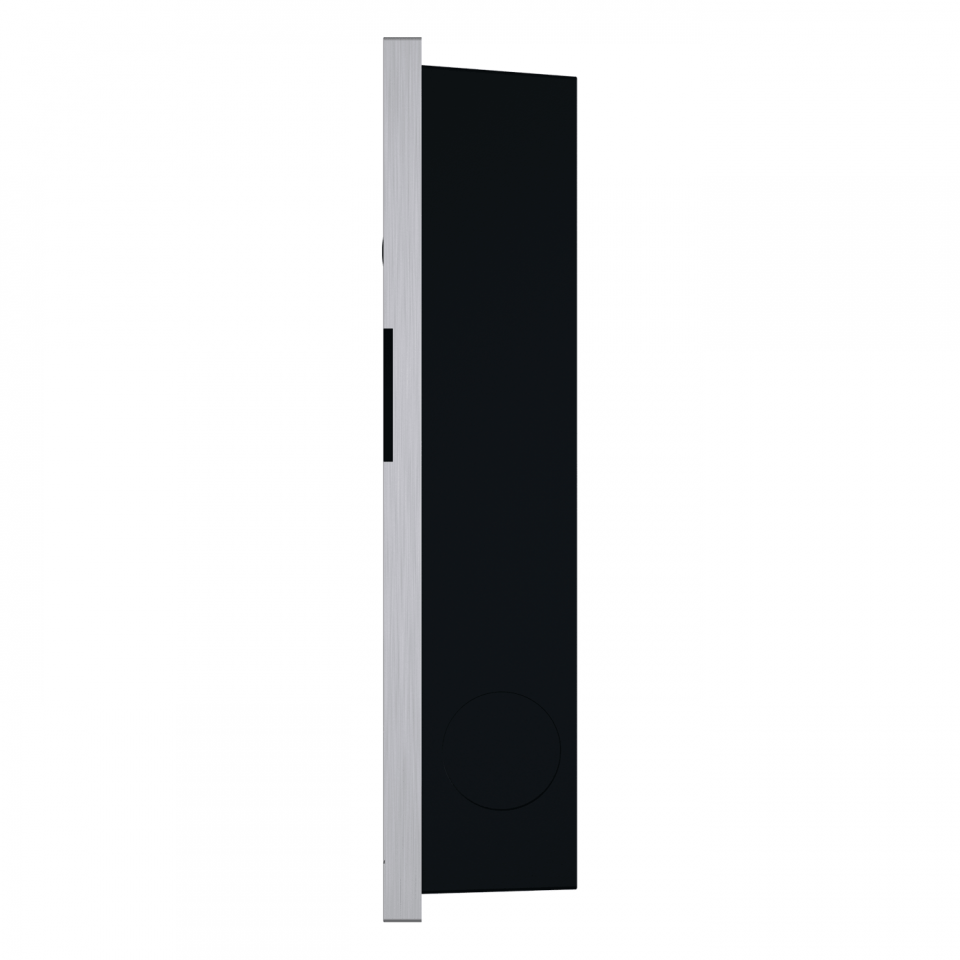

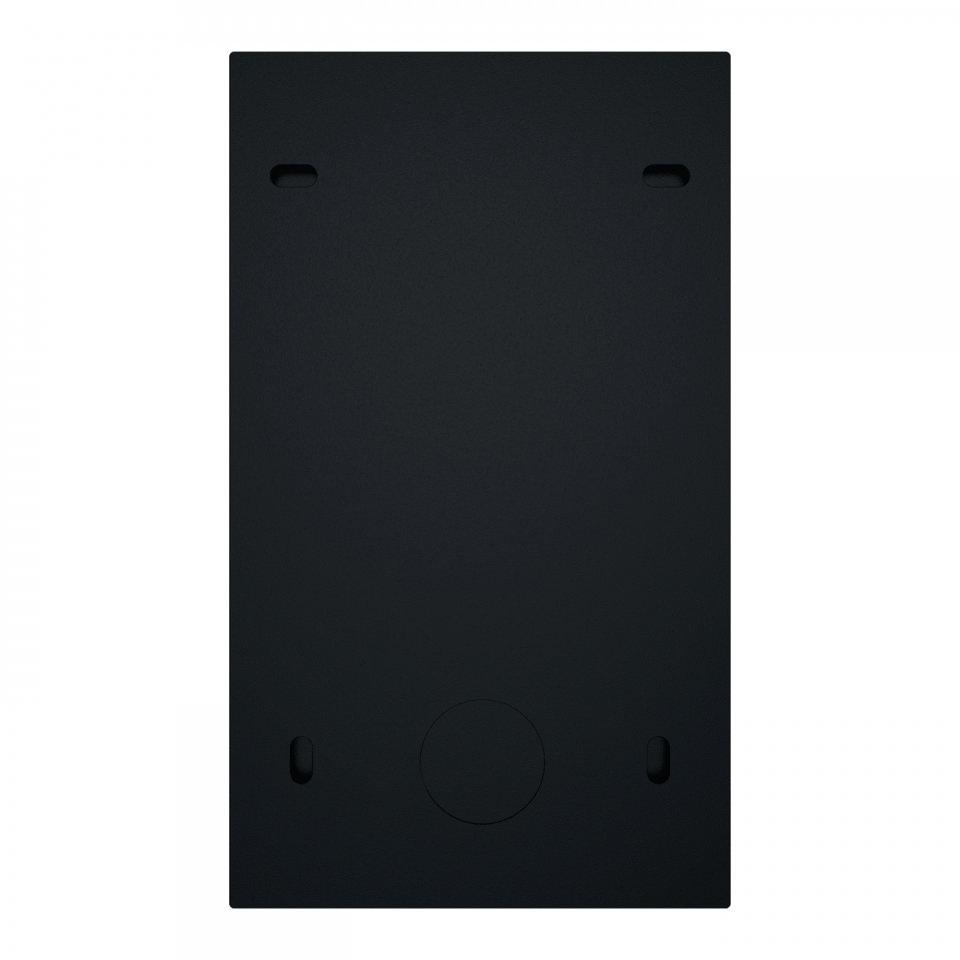

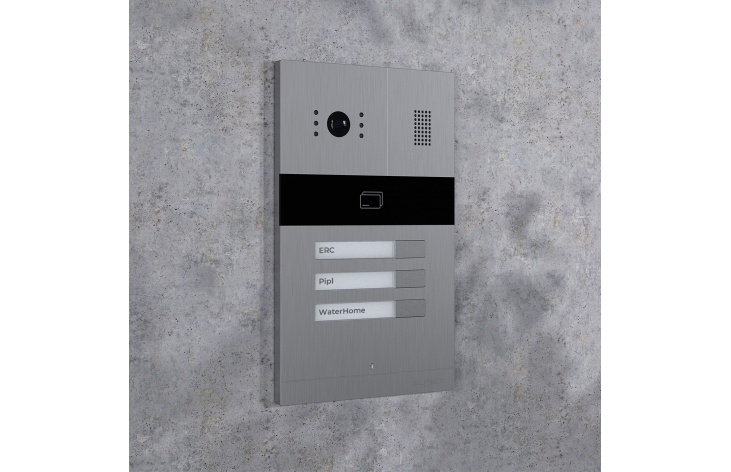

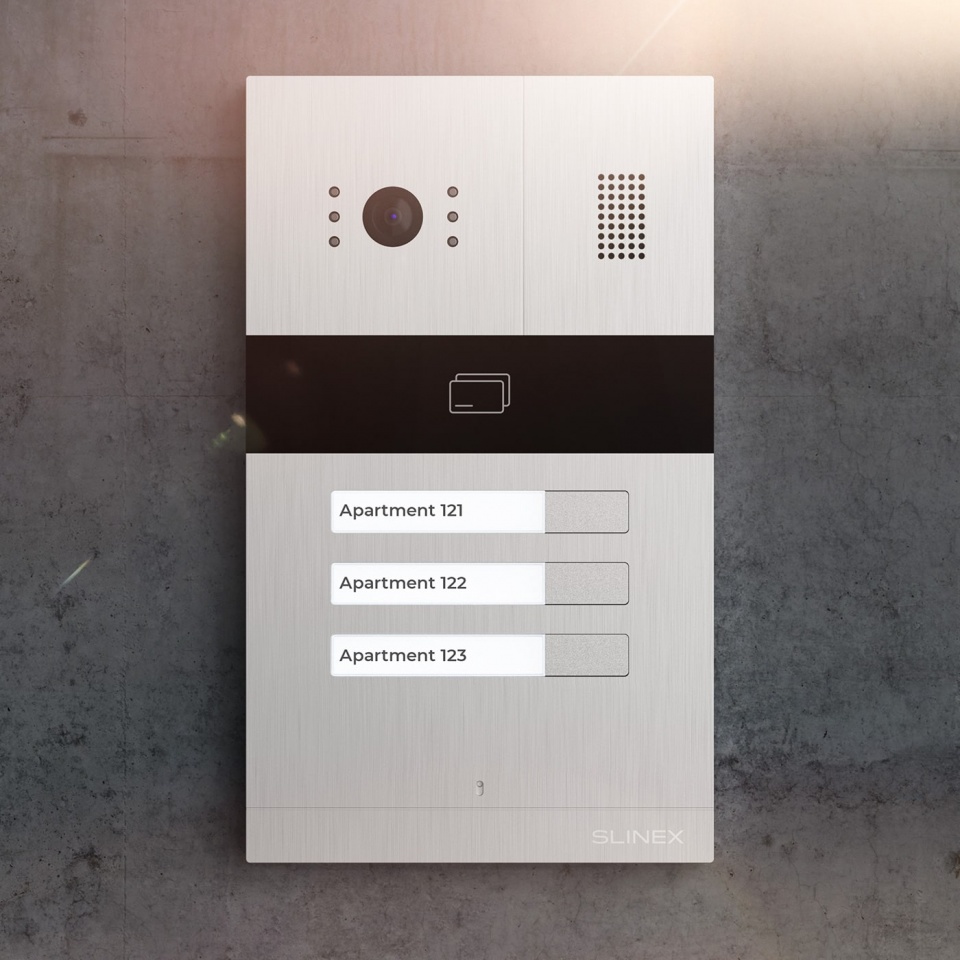

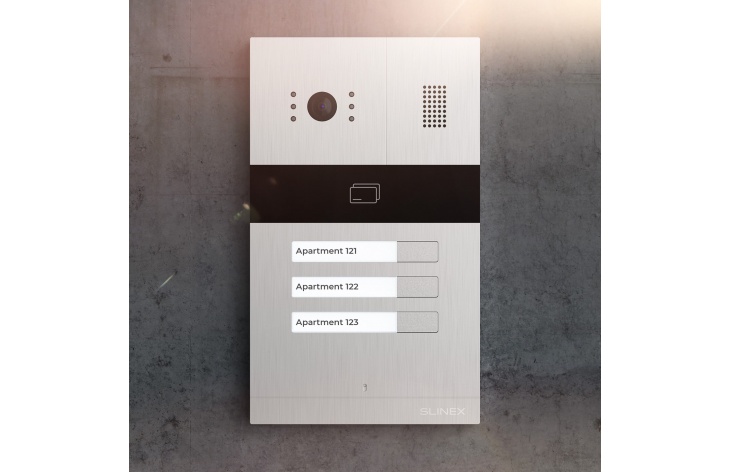

Particularly suited to small residential buildings or office complexes with fewer units, the MA-03CRHD also works well for office floors housing multiple businesses. Clearly visible illuminated nameplates allow easy identification of apartments, offices, or company names, even in low-light environments. Designed for flush mounting, it can be installed both indoors and outdoors and operates reliably in a wide temperature range from -40°C to +65°C. Its compact dimensions (110×185×34 mm) facilitate easy installation.

Technical Specifications

A notable feature of the MA-03CRHD is its integrated EM-Marin/MIFARE card reader, which provides secure, efficient access control. It can store data for up to 248 cards internally.

Additionally, the mechanical IR filter greatly improves nighttime visibility, ensuring clear visitor identification in any lighting condition.

Design and Camera

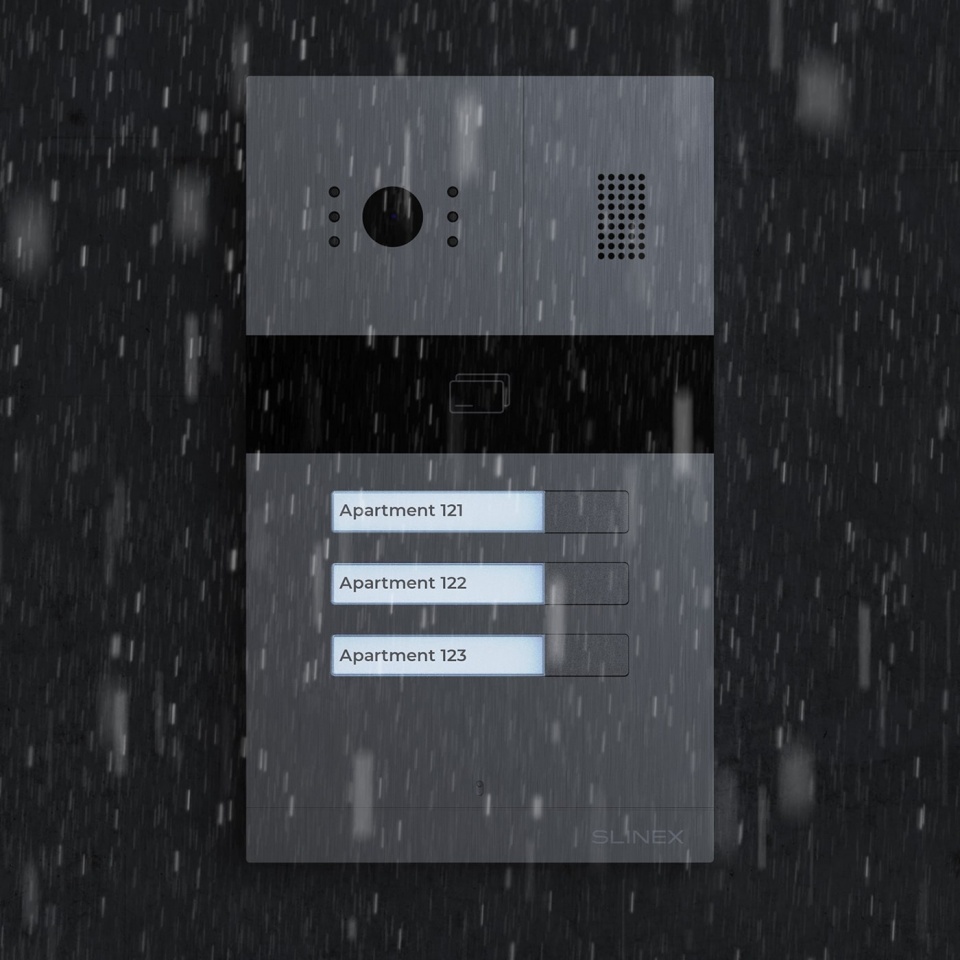

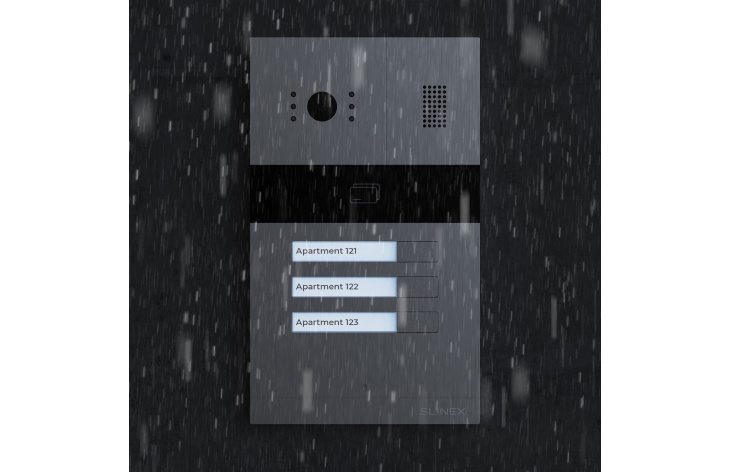

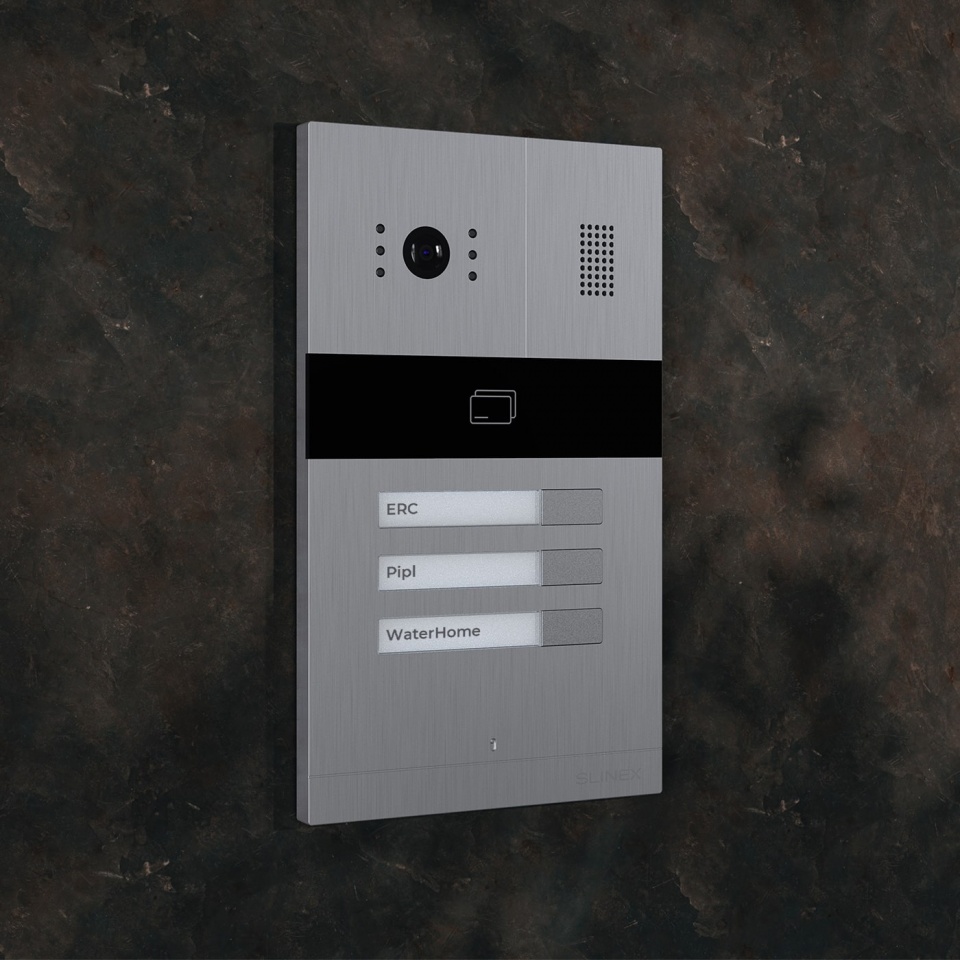

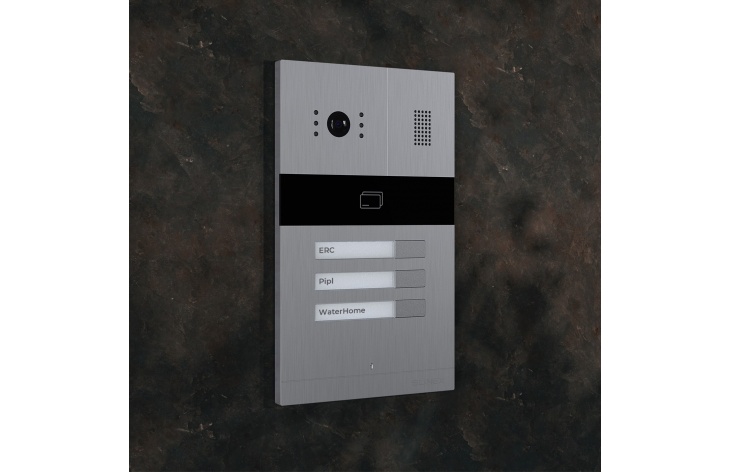

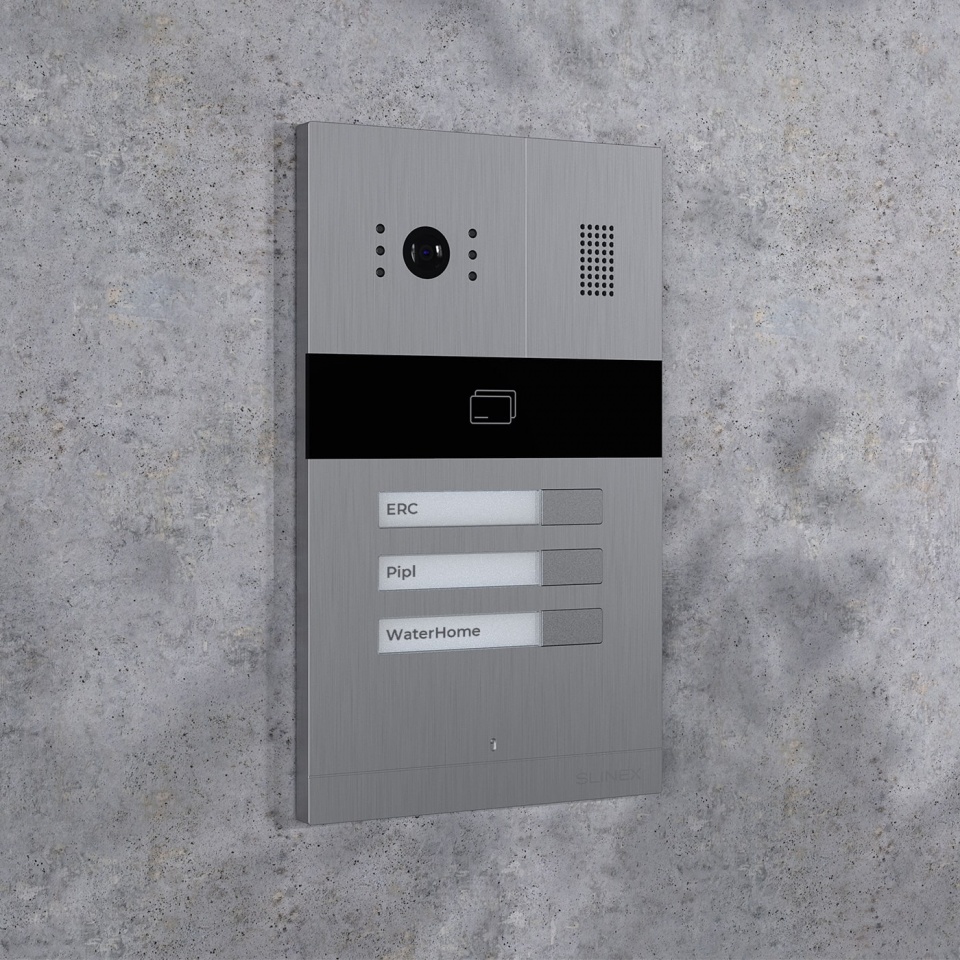

The panel is constructed from durable brushed aluminum with a sleek acrylic insert housing the card reader. With an IP65 protection rating, it is resistant to dust and moisture, suitable for diverse environmental conditions. The universal silver color complements various architectural designs.

Its integrated Full HD camera, featuring a 115° wide viewing angle, ensures high-quality imaging for internal monitors.

Compatibility with Additional Devices

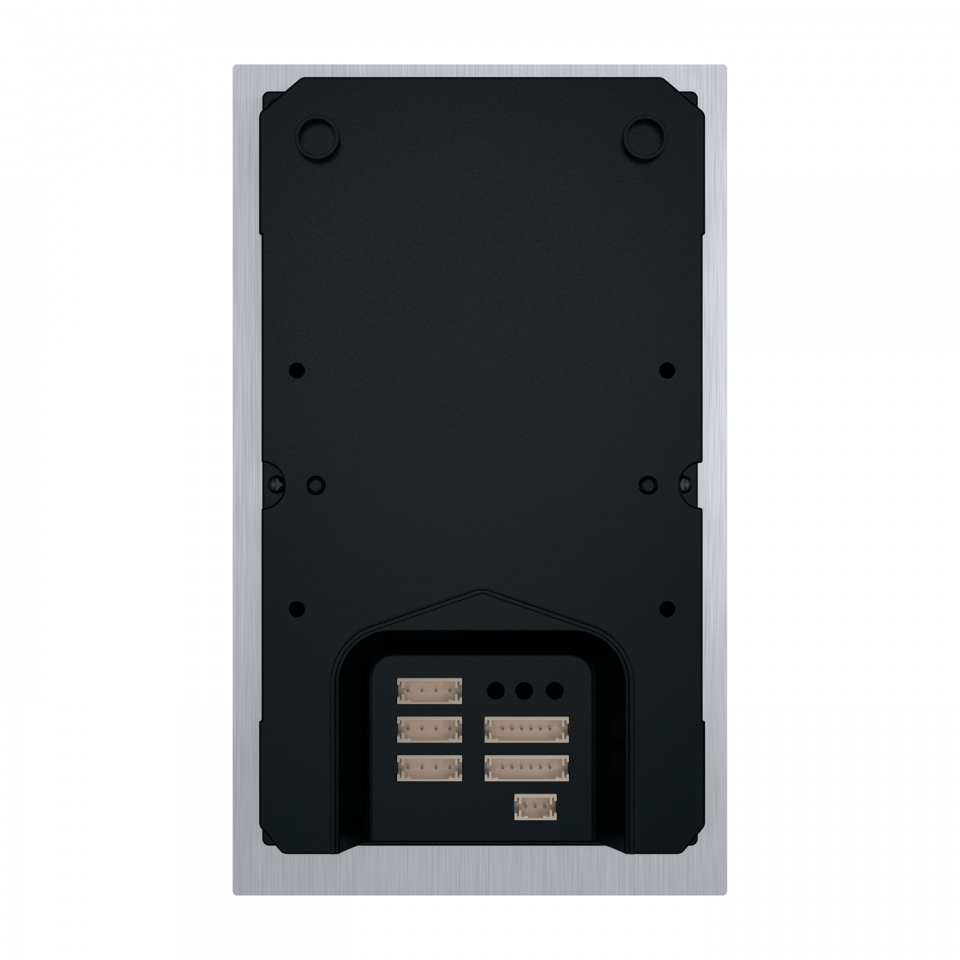

The MA-03CRHD outdoor panel integrates smoothly with any 4-wire intercom systems. To increase the number of supported apartments, users can add up to two optional MA-08 extension modules, each accommodating eight additional subscribers, allowing a total expansion to 19 subscribers.
