Introduction

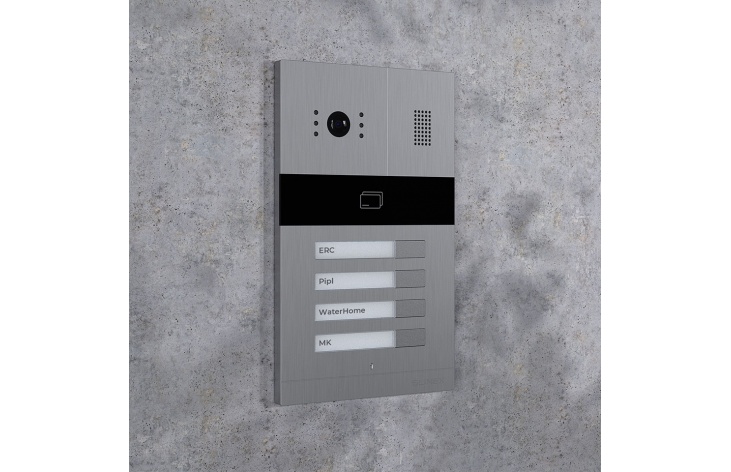

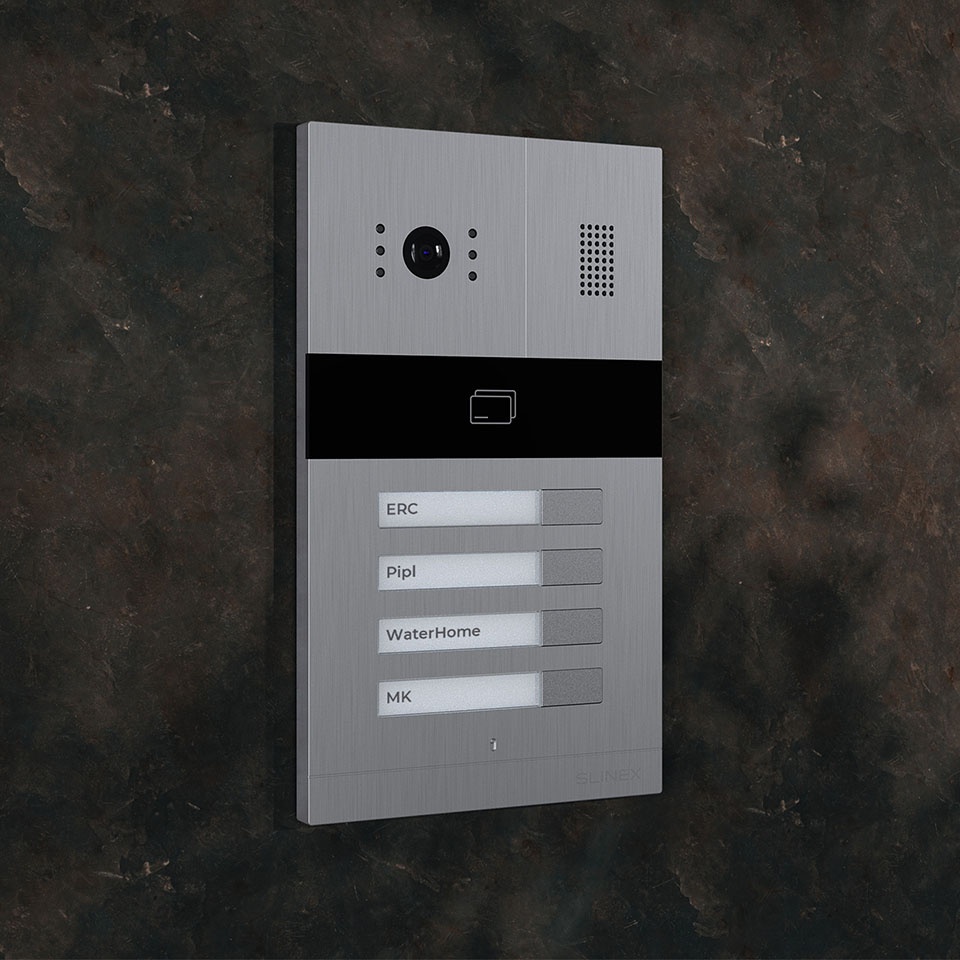

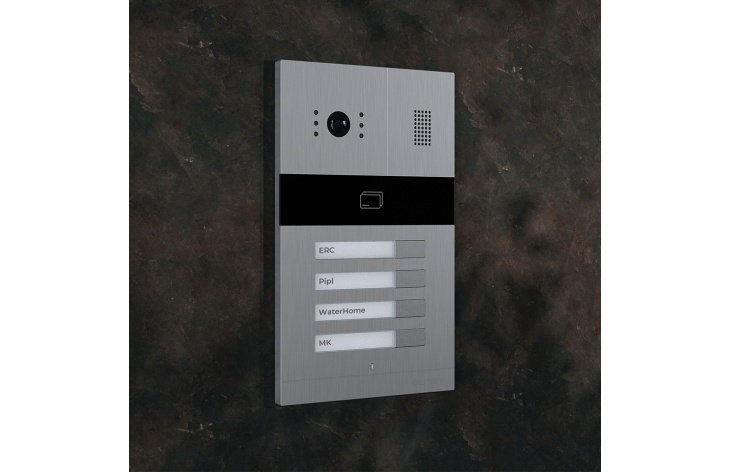

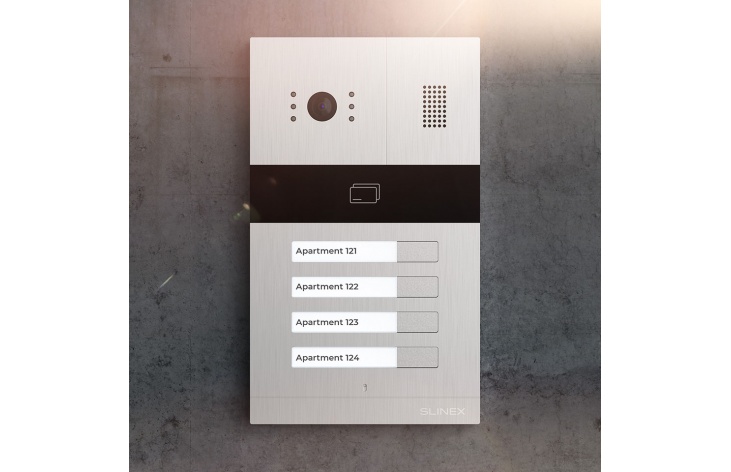

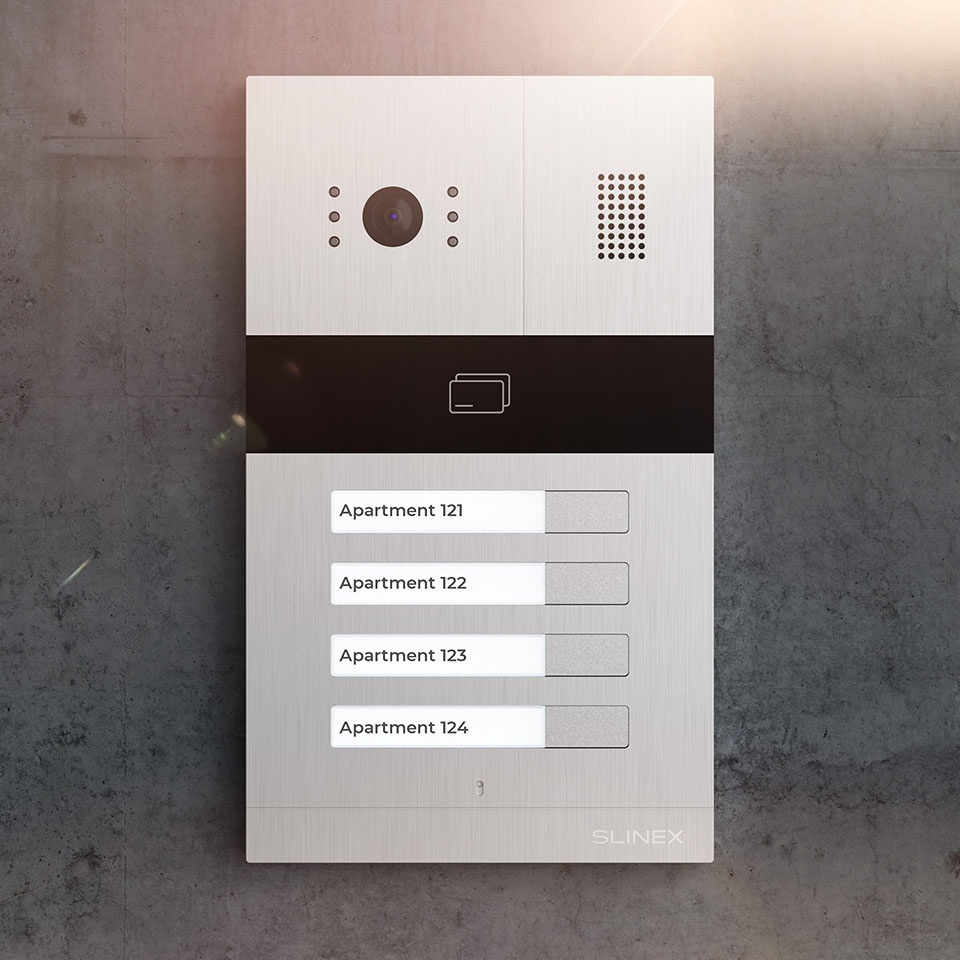

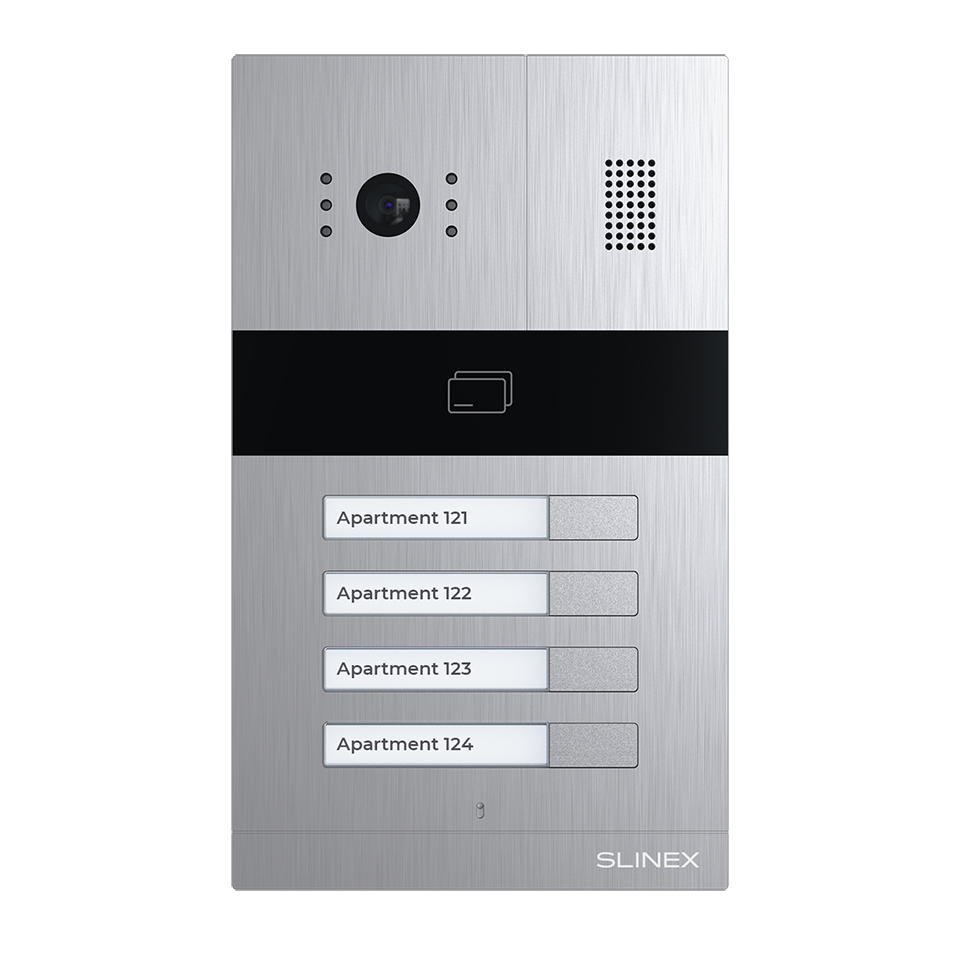

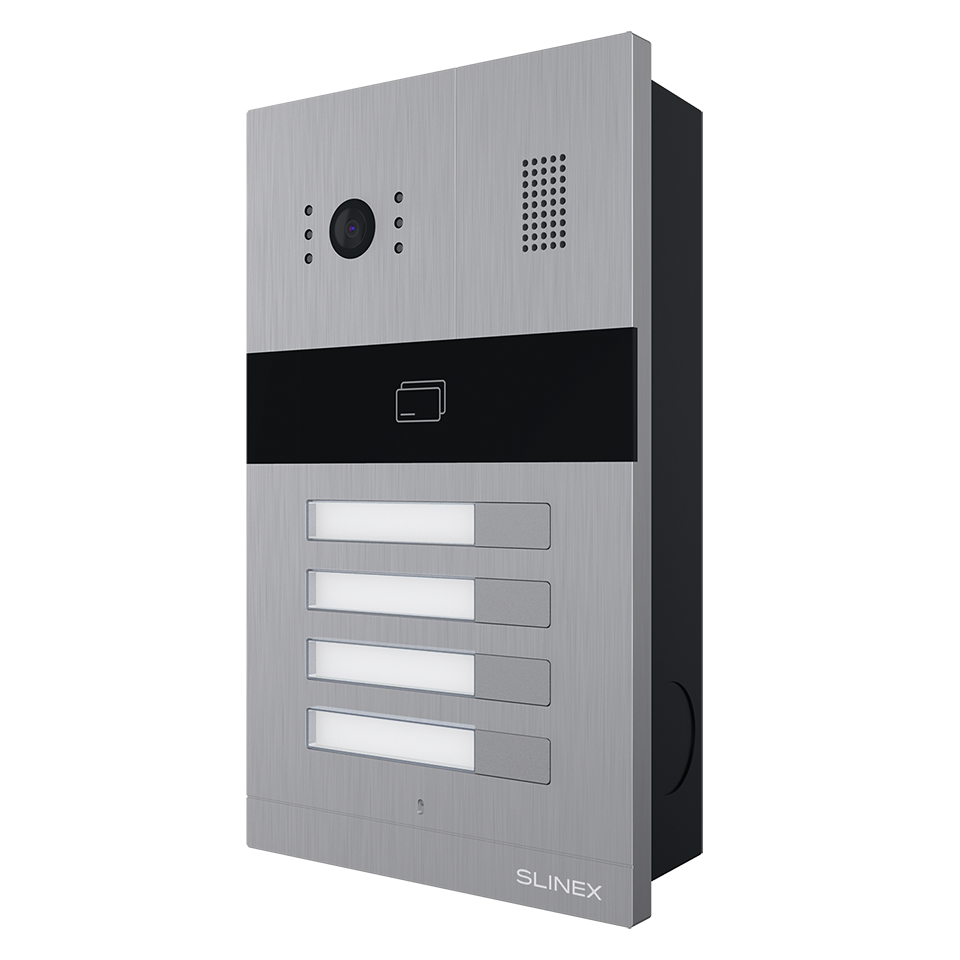

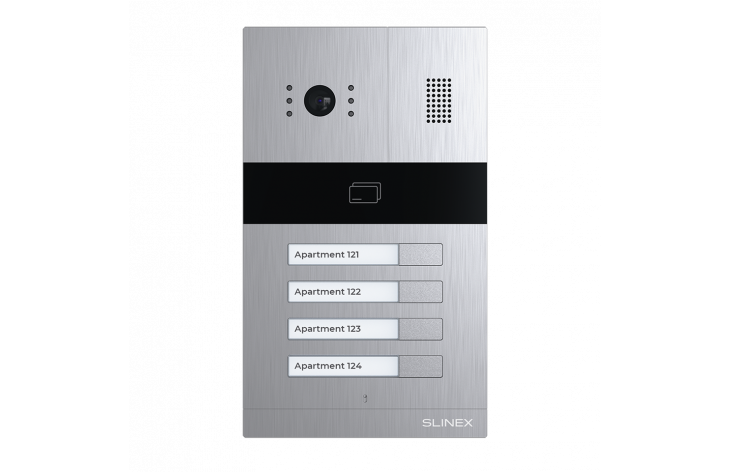

The Slinex MA-04CRHD is a contemporary outdoor panel specifically designed for buildings housing four subscribers. It provides a range of advanced features, including a high-resolution 2MP color camera, an integrated reader compatible with EM-Marin and MIFARE contactless cards, a mechanical IR filter complemented by six LEDs, and illuminated nameplates. Thanks to its refined aesthetics and extensive functionality, the MA-04CRHD stands out among competing products.

Applications

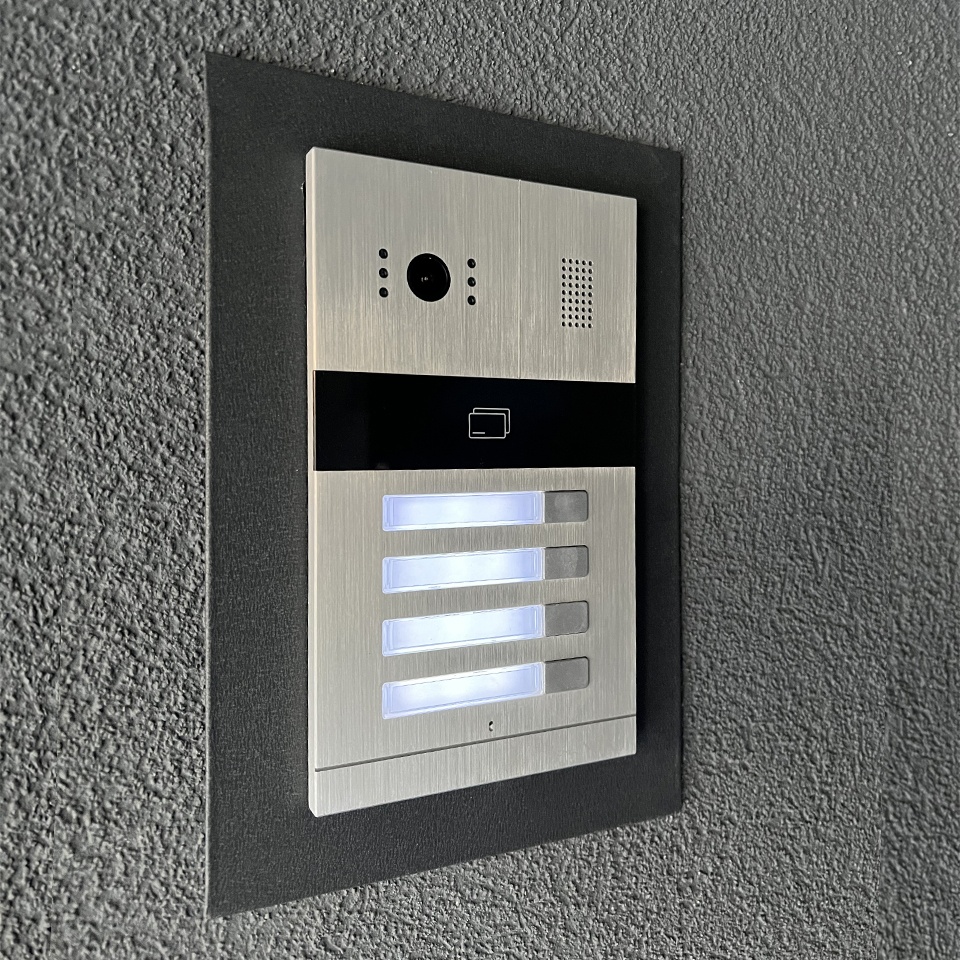

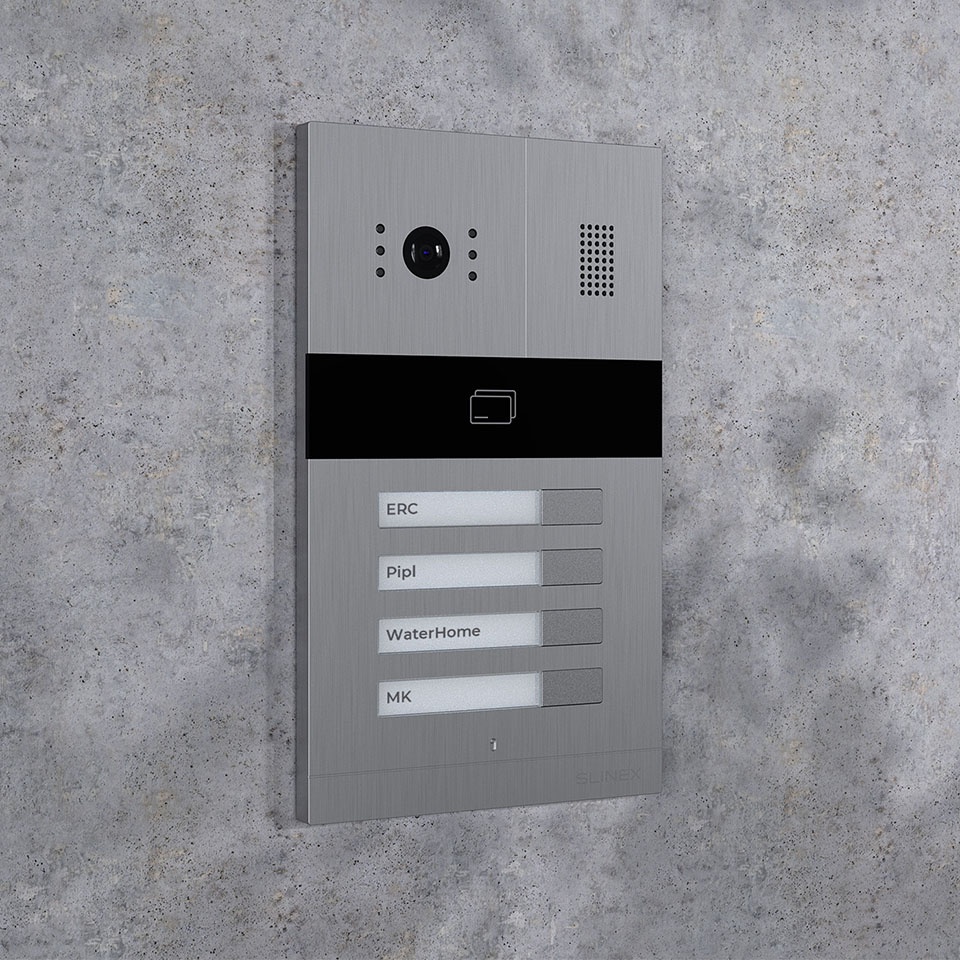

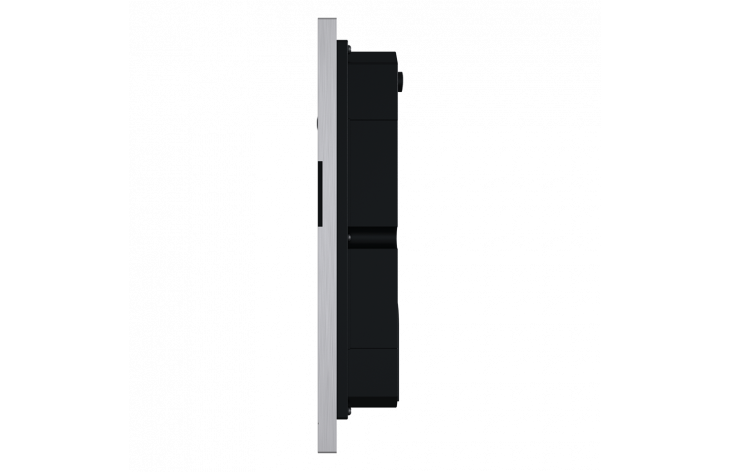

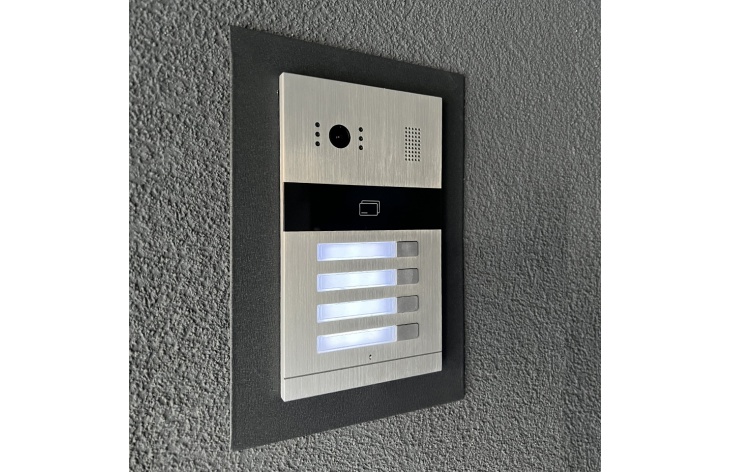

This outdoor panel is particularly well-suited for small residential buildings or commercial offices with fewer occupants. Its versatility also makes it an excellent choice for installation in office complexes hosting multiple businesses. Clearly visible illuminated nameplates allow easy identification of apartments, offices, or company names, even in low-light conditions. Designed for flush mounting, it is suitable for both indoor and outdoor installation, reliably operating within a temperature range from -40°C to +65°C. Compact dimensions of 110×185×34 mm ensure straightforward installation.

Technical Specifications

A key feature of the MA-04CRHD is its integrated EM-Marin/MIFARE contactless card reader, ensuring secure, convenient access control. It accommodates up to 248 cards internally.

Additionally, the mechanical IR filter boosts nighttime visibility, ensuring clear visitor identification around the clock.

Design and Camera

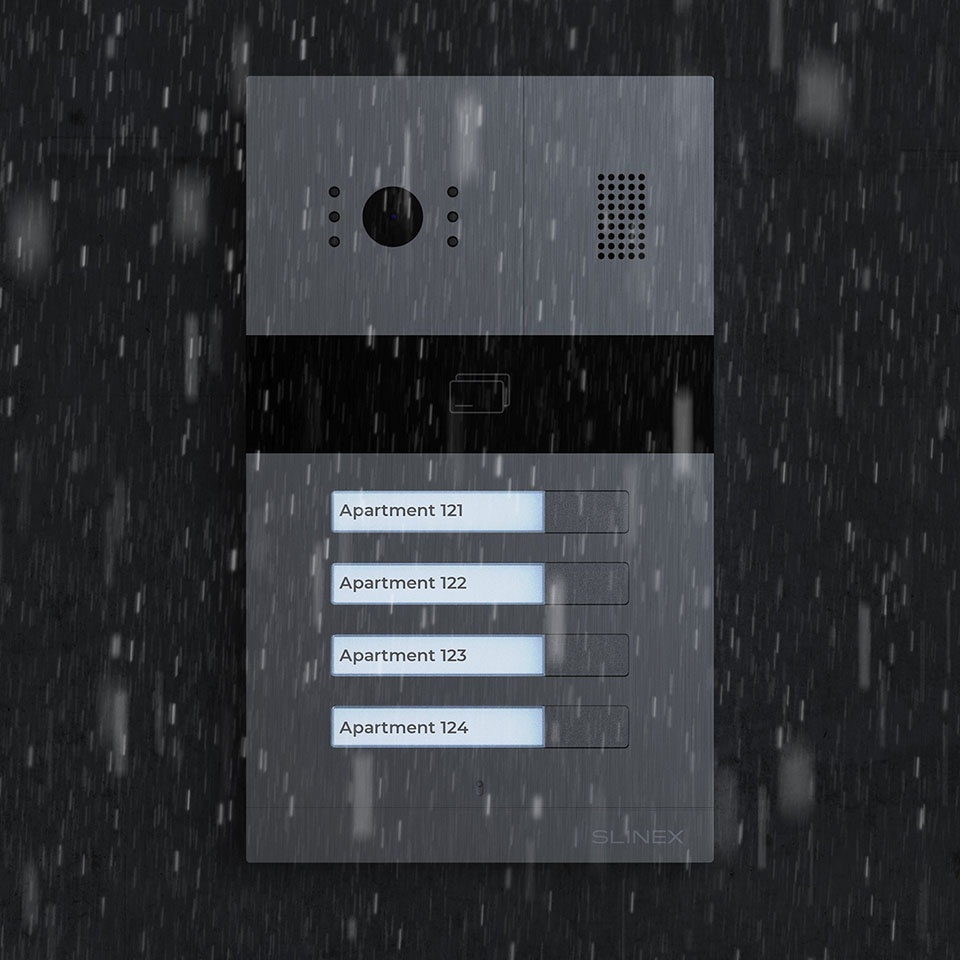

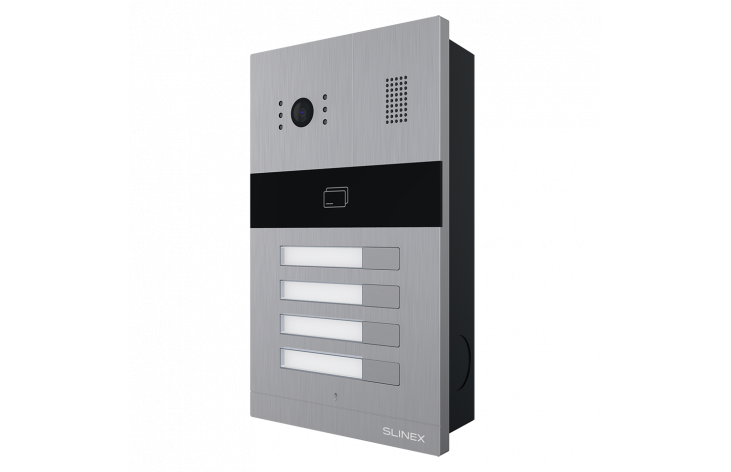

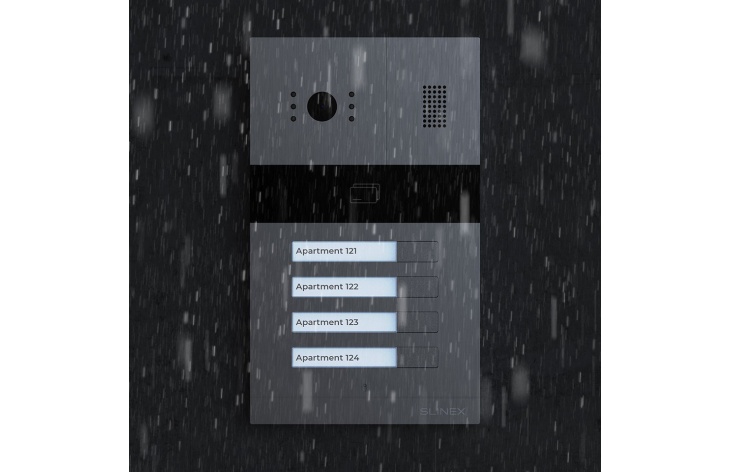

Constructed from premium brushed aluminum with a sleek acrylic insert housing the card reader, the panel has a robust and stylish appearance. Its IP65 rating ensures durability and resistance to dust and moisture, making it ideal for diverse environmental conditions. Available exclusively in silver, the panel easily integrates with various architectural styles.

The built-in Full HD camera, featuring a 115° wide viewing angle, delivers crisp, clear images for internal monitors.

Compatibility with Additional Devices

The MA-04CRHD easily integrates with all standard 4-wire intercom systems. The panel's capability can be expanded further by adding up to two optional MA-08 extension modules, each supporting eight additional subscribers, enabling an overall capacity of up to 20 subscribers.
