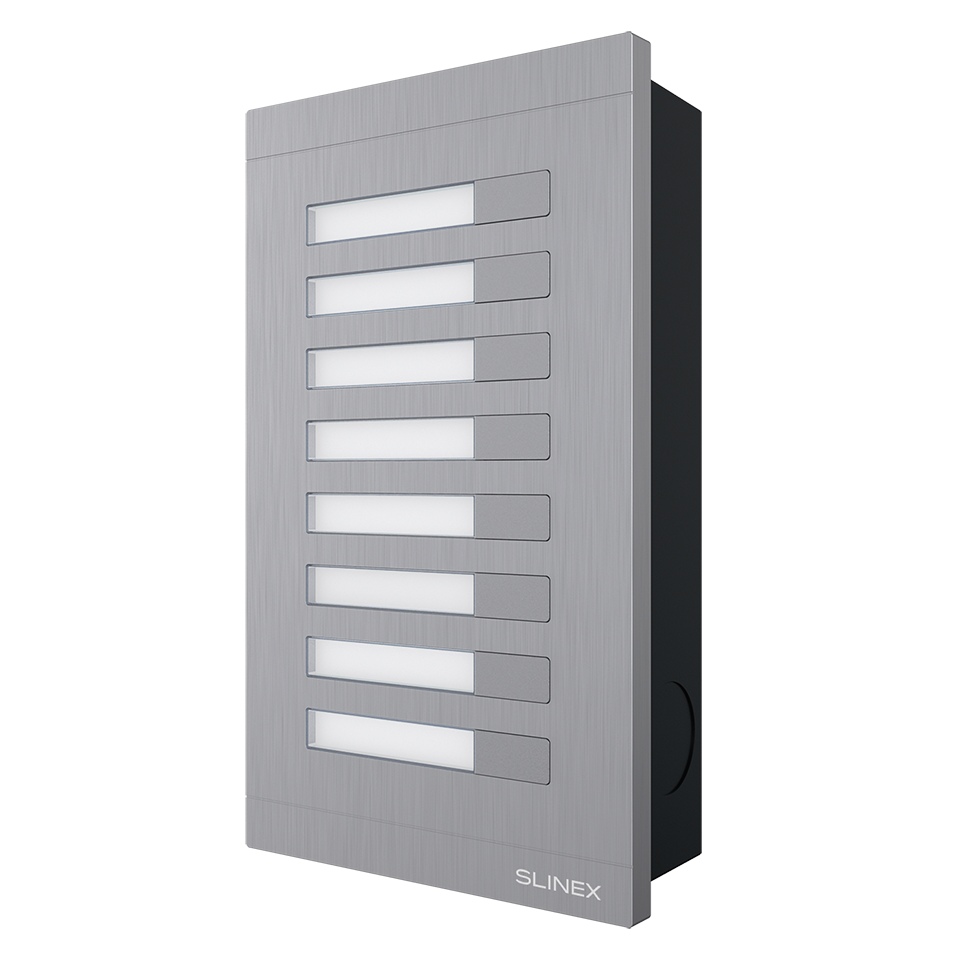

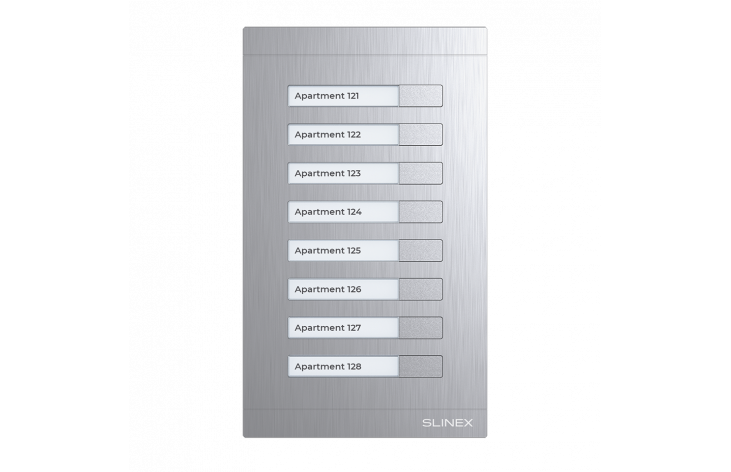

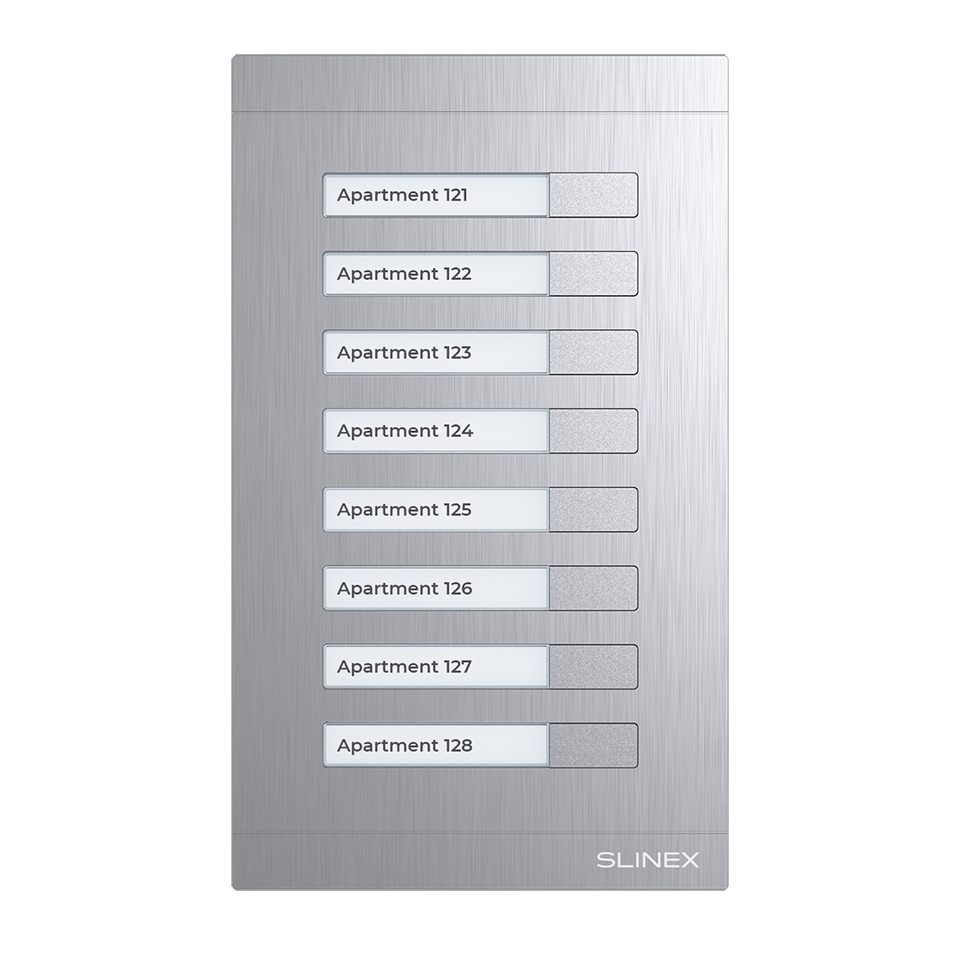

The Slinex MA-08 is a dedicated extension unit compatible with Slinex MA-01CRHD, MA-02CRHD, MA-03CRHD, and MA-04CRHD outdoor panels. This module enhances existing systems by enabling connections for an additional 16 apartments when two modules are installed concurrently.

The MA-08 module is an ideal choice for users needing advanced intercom functionality with modest expansion requirements, offering flexibility for smaller residential or commercial properties.

Application

In combination with MA-01CRHD, MA-02CRHD, MA-03CRHD, or MA-04CRHD panels, the MA-08 module is perfectly suited for compact apartment buildings, small business offices, or private commercial spaces. It can be reliably installed both indoors and outdoors.

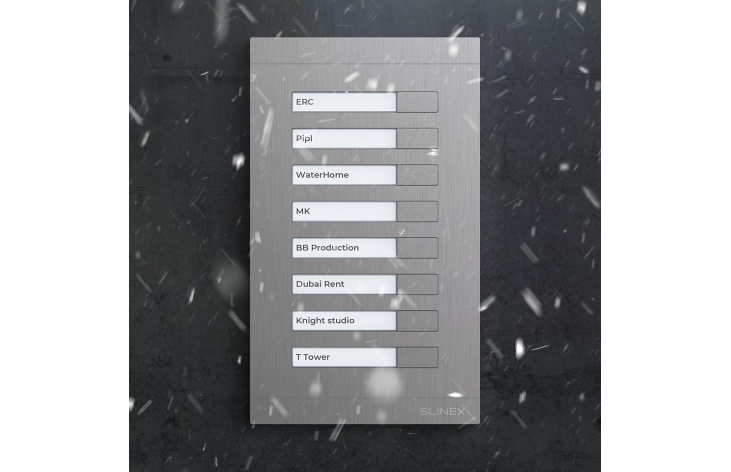

The module operates reliably across a wide temperature range from -40°C to +65°C, ensuring stability in diverse climatic conditions.

Design and Build

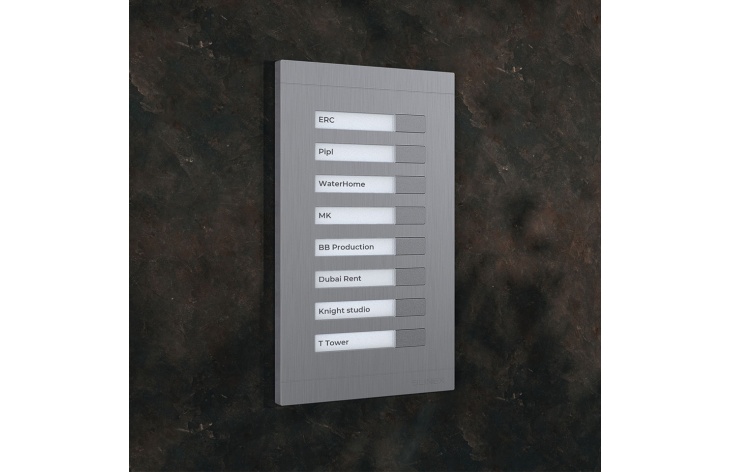

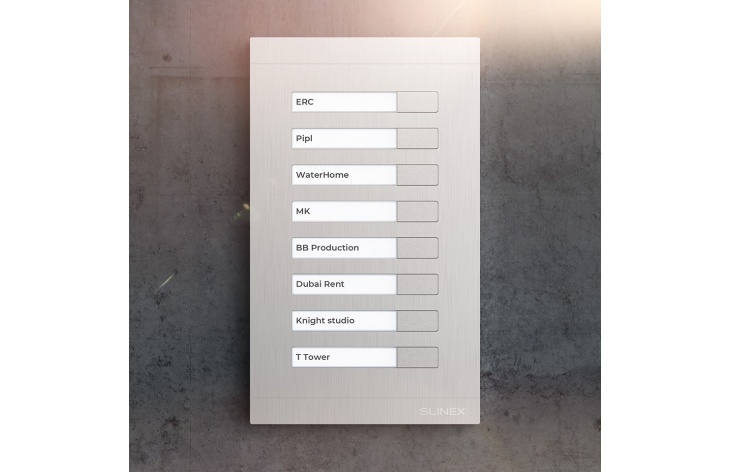

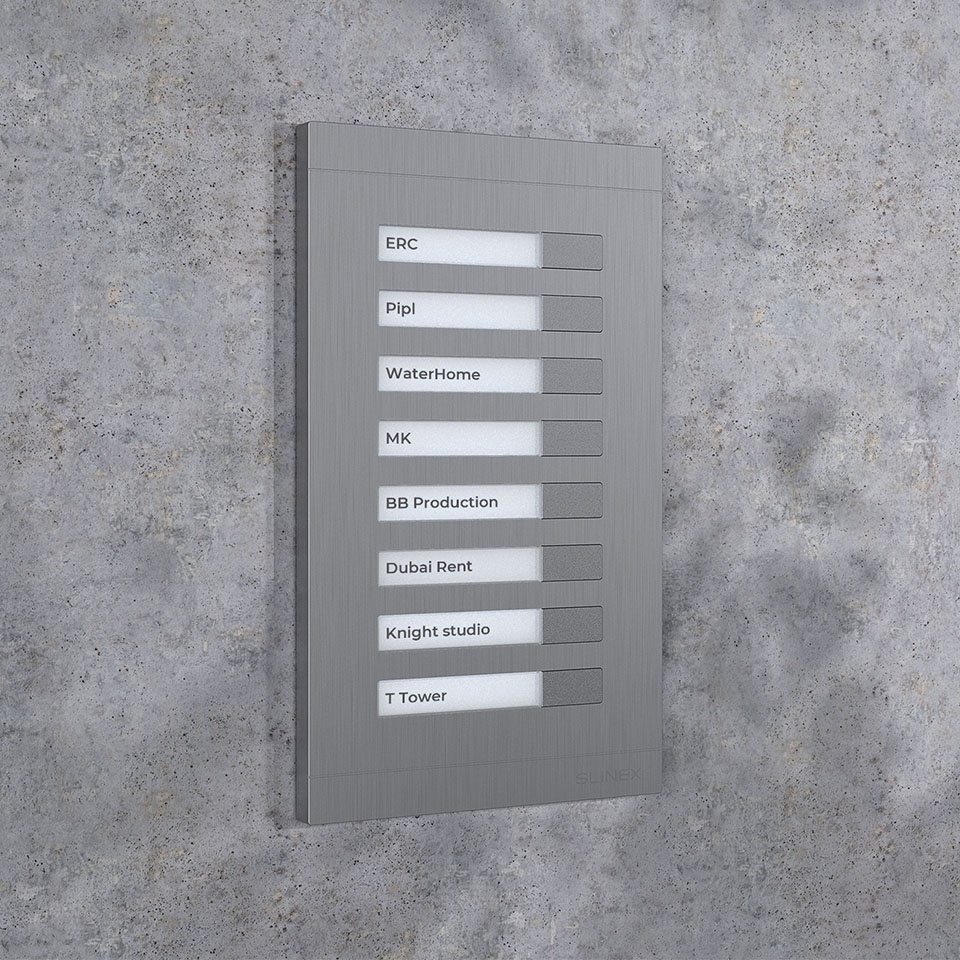

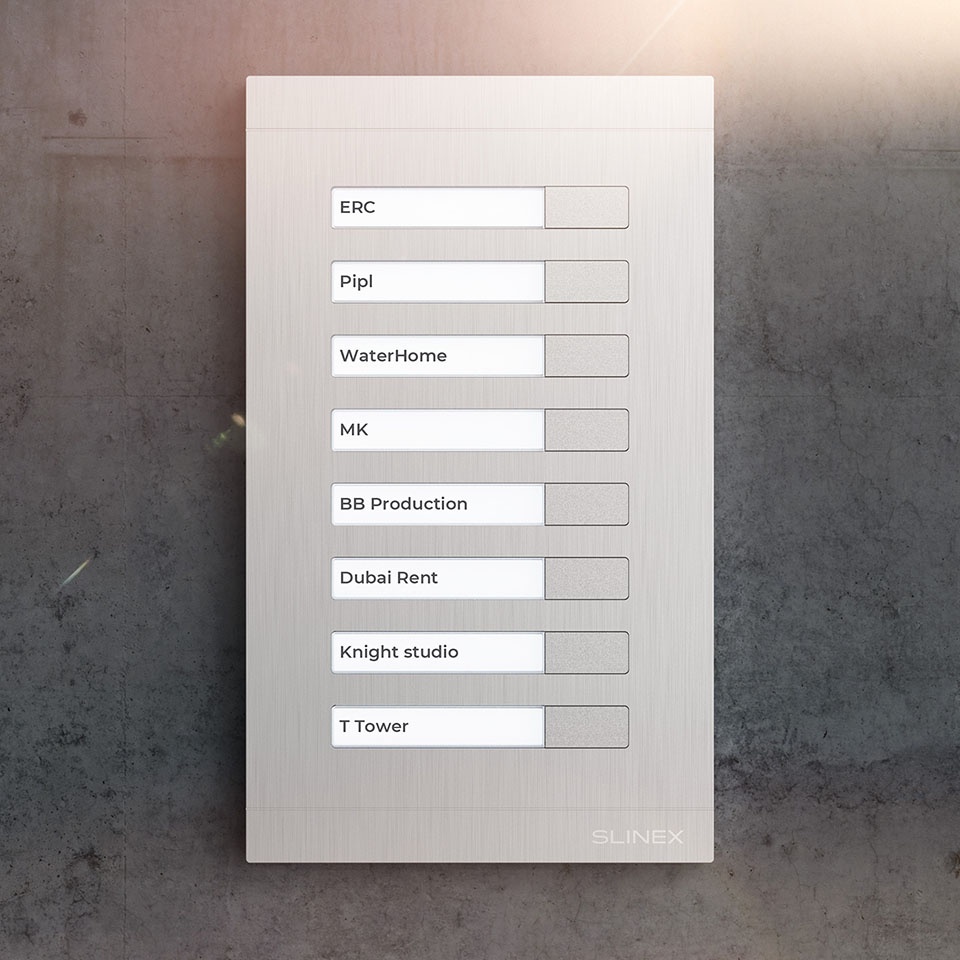

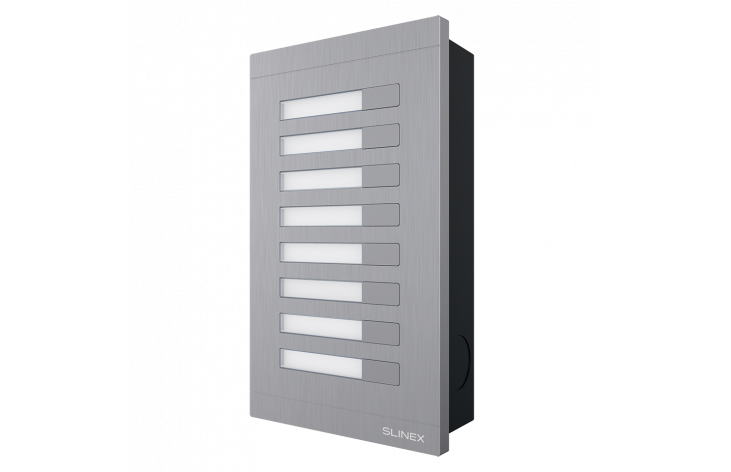

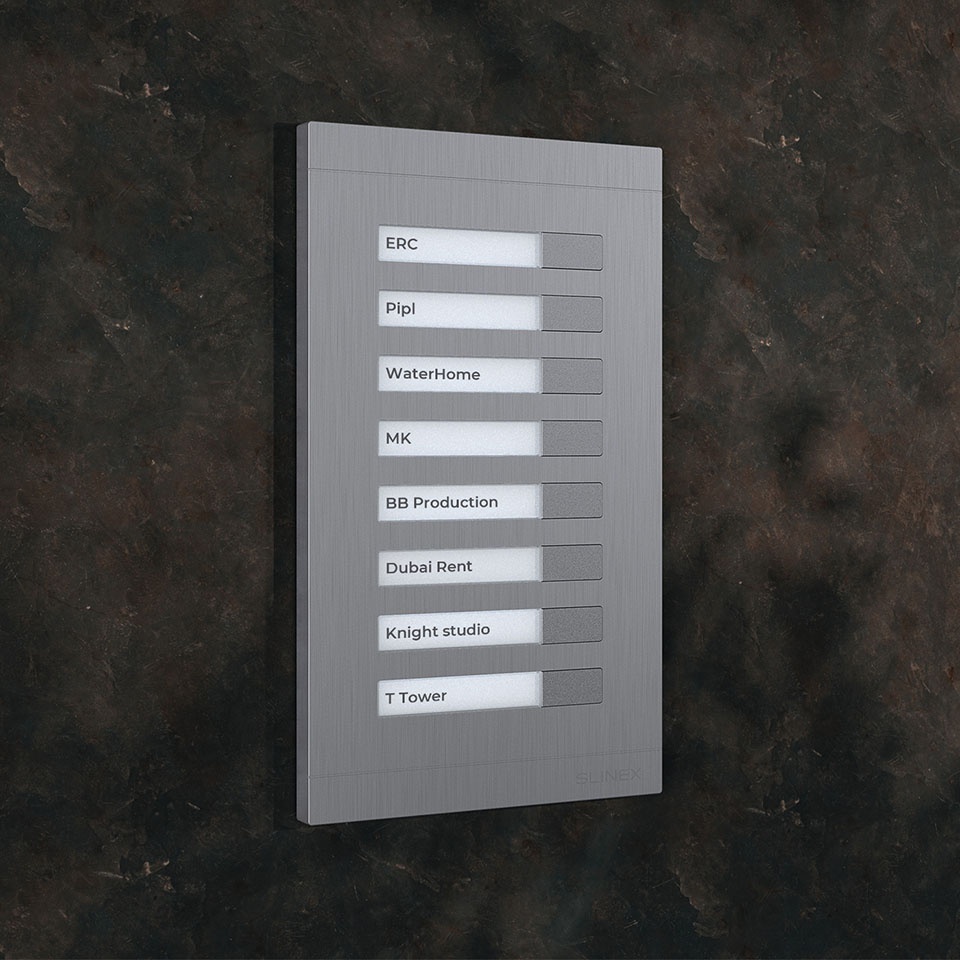

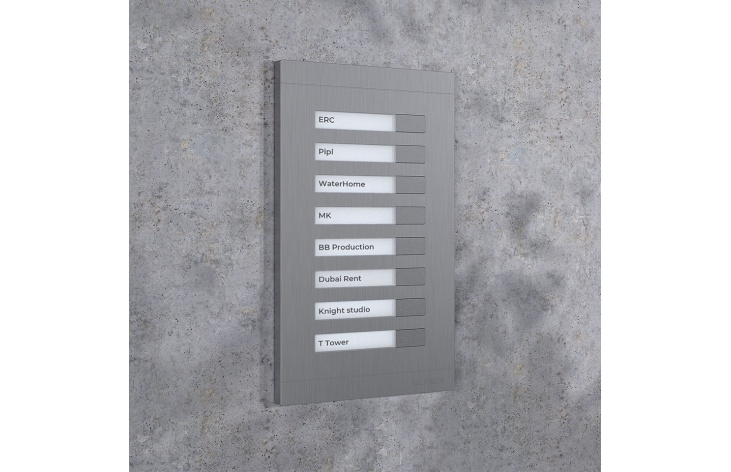

Constructed from brushed aluminum and available exclusively in a sophisticated silver finish, the MA-08 extension module seamlessly matches and enhances the aesthetics of the main outdoor panel, complementing contemporary architectural designs.

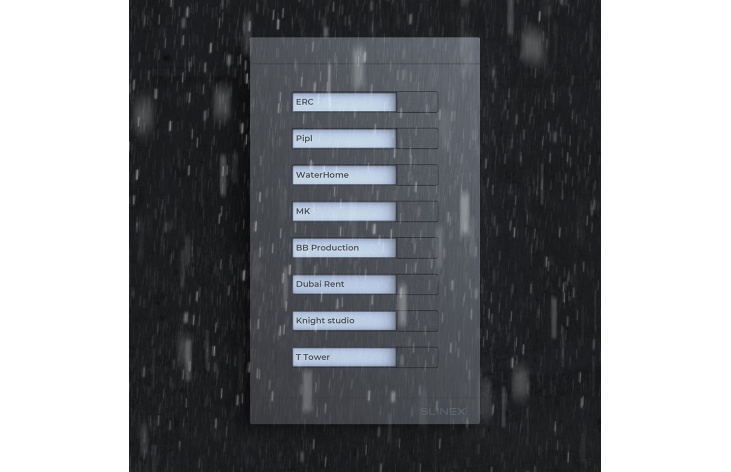

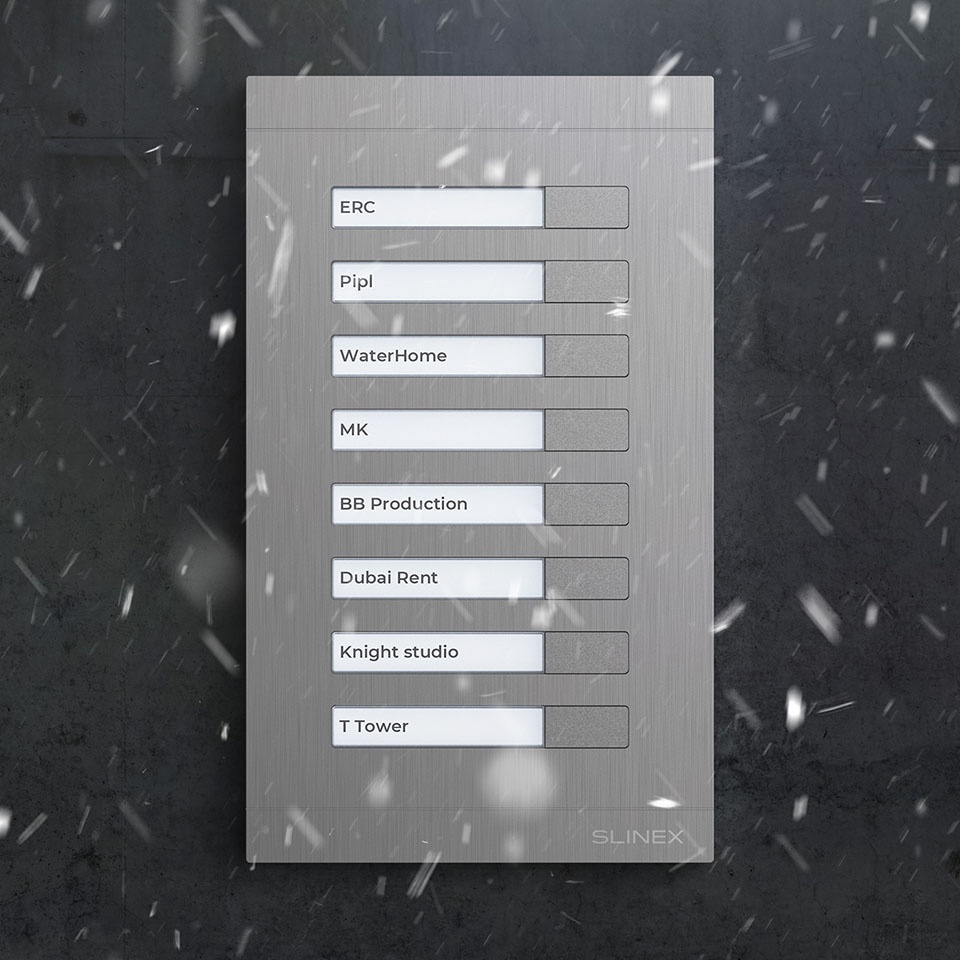

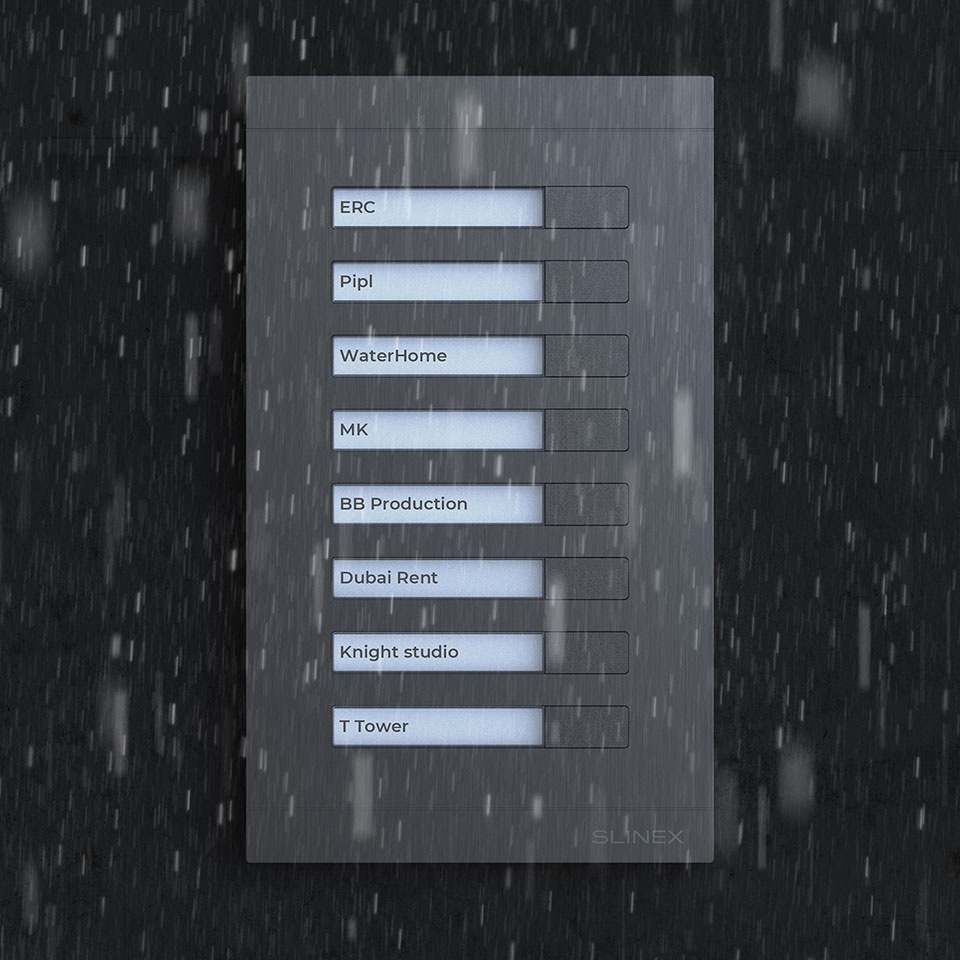

With its robust IP65 protection class, the MA-08 demonstrates excellent resistance against harsh weather conditions, making it highly suitable for outdoor installations.

Compatibility and Integration

The MA-08 module integrates seamlessly with the MA-01CRHD, MA-02CRHD, MA-03CRHD, and MA-04CRHD outdoor panels, from which it also draws power.

Flush Mounting Installation

1. Create an opening in the wall at an appropriate height of 150–160 cm from the floor.

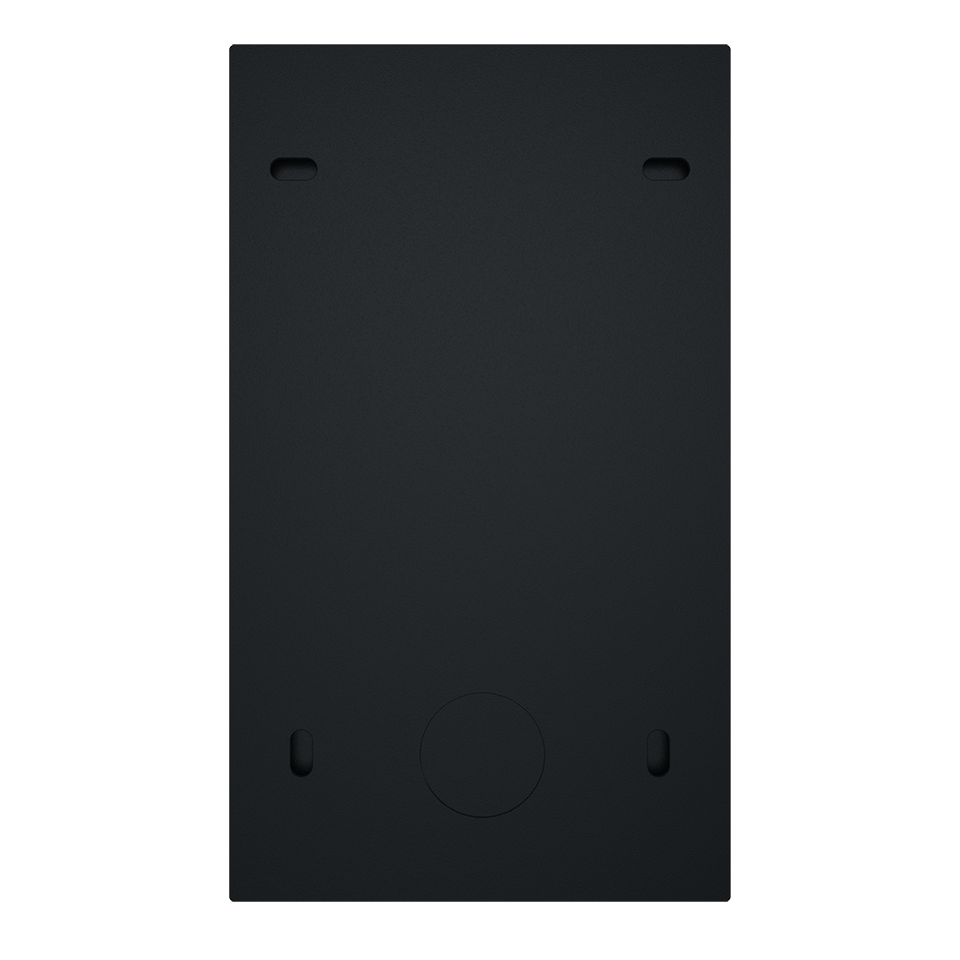

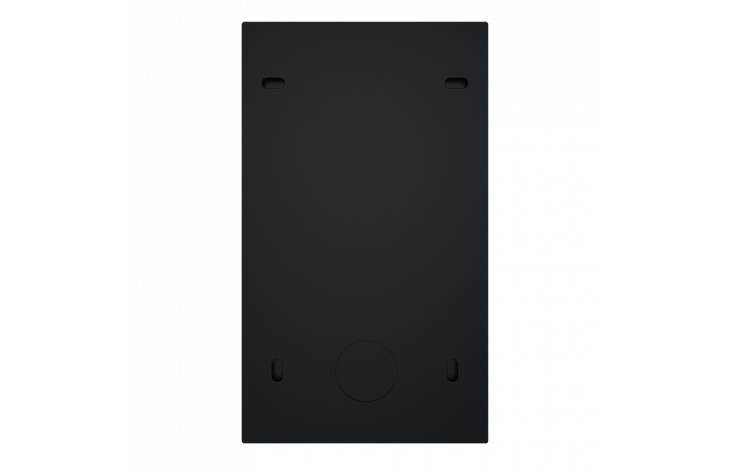

2. Secure the flush mounting bracket within this opening.

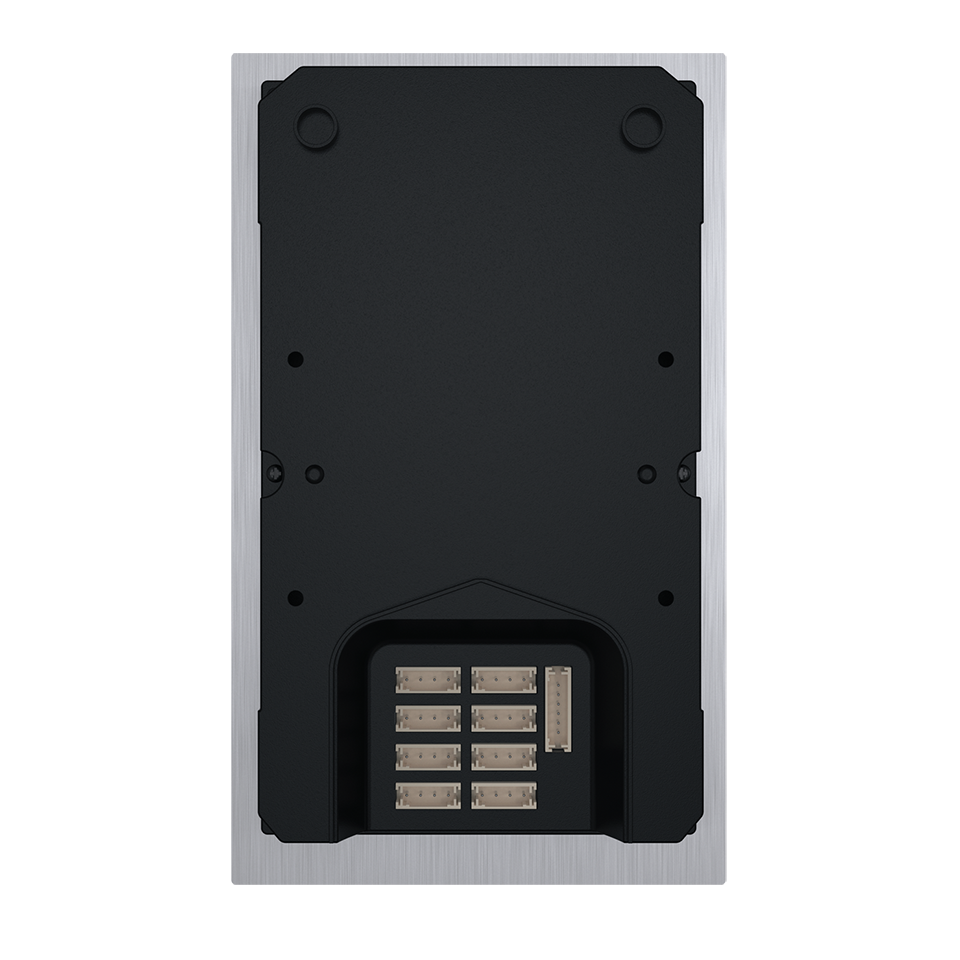

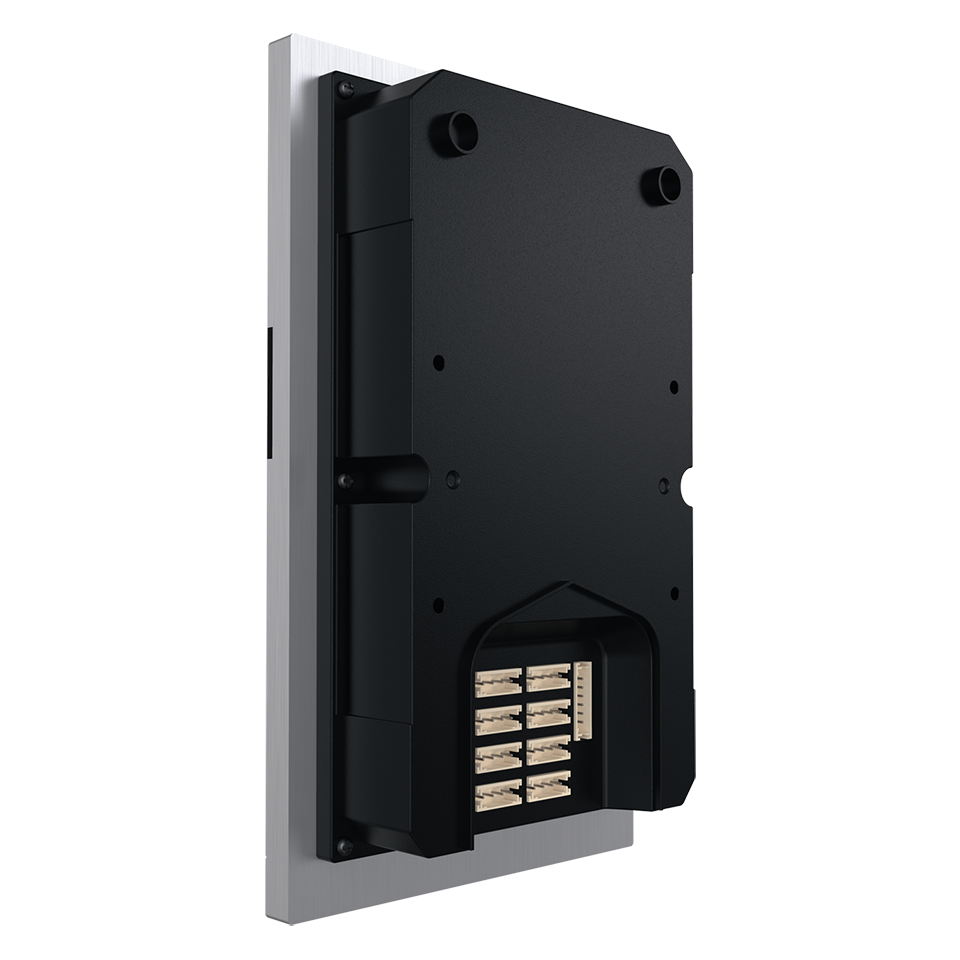

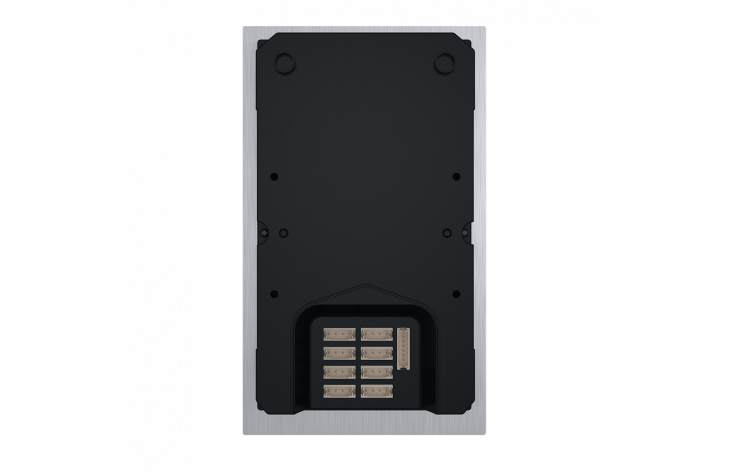

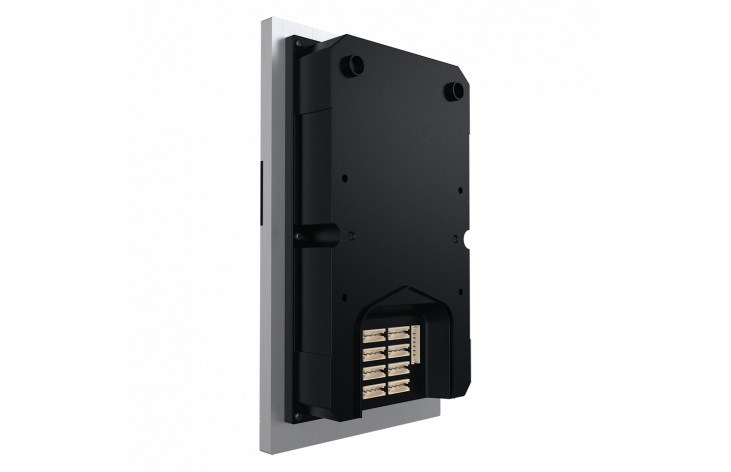

3. Connect the wiring from the outdoor panel and fasten the module to the bracket using the two bolts provided at the lower edge.

The Slinex MA-08 combines elegant design with functional expansion capabilities, supporting intercom system extensions up to 20 apartments.
