Slinex MB-06CRHD
Multi-apartment outdoor panel featuring EM-Marin reader
- Resolution 2 MP (AHD)
- EM-Marin reader
- Wide viewing angle
- Nameplate backlight
Slinex MB-06CRHD
Multi-apartment outdoor panel featuring EM-Marin reader
- Resolution 2 MP (AHD)
- EM-Marin reader
- Wide viewing angle
- Nameplate backlight
Colors
Description
Introduction
The Slinex MB outdoor panel offers a modern solution for reliable access control and streamlined visitor communication. With its refined design and robust construction, the device resists diverse weather conditions while maintaining an elegant appearance.
Where it can be used
Engineered for versatility, the Slinex MB outdoor panel is well-suited for a range of environments, including residential complexes, commercial offices, and industrial sites. Whether installed indoors or outdoors, on walls or pillars, it integrates seamlessly into any architectural environment.
Specifications of the model
One standout feature of this series is its integrated EM-Marin contactless card reader, enabling secure, monitored entry. The device's internal memory can accommodate up to 1000 cards. Additionally, a mechanical IR filter is incorporated to enhance low-light imaging, ensuring that visitors can be clearly identified at any time of day.
Appearance and camera

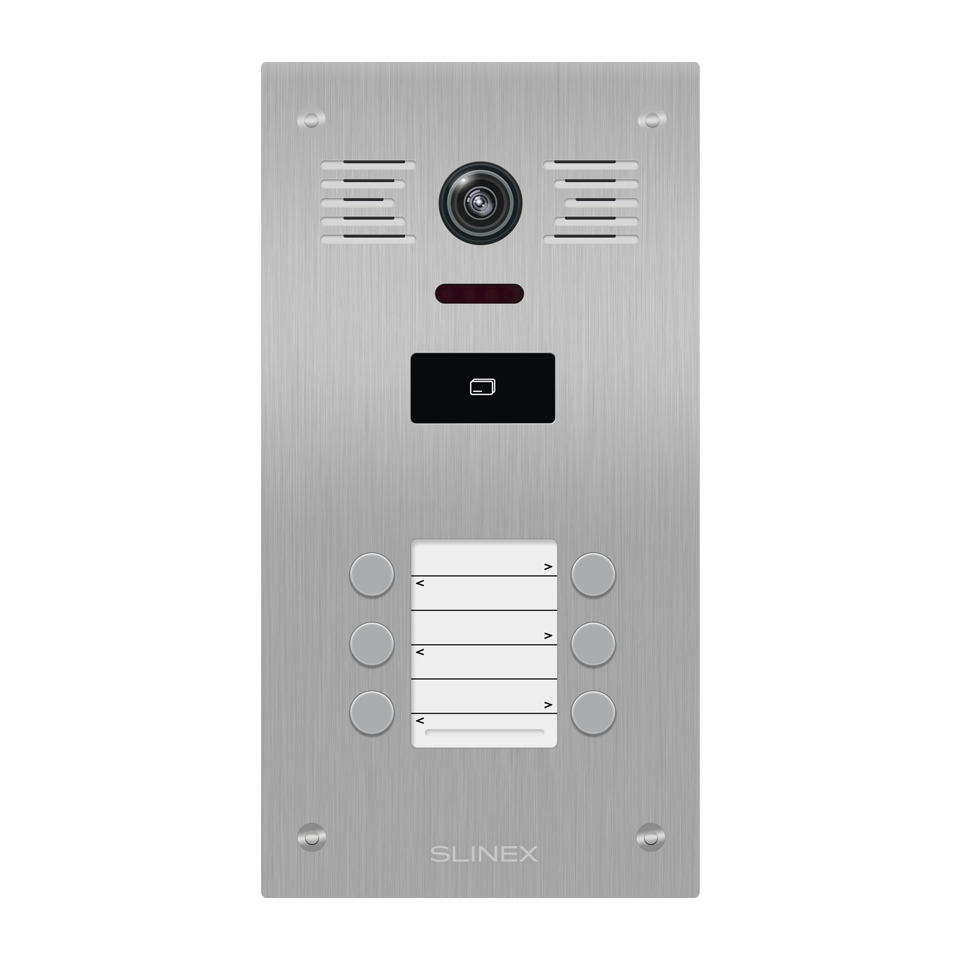

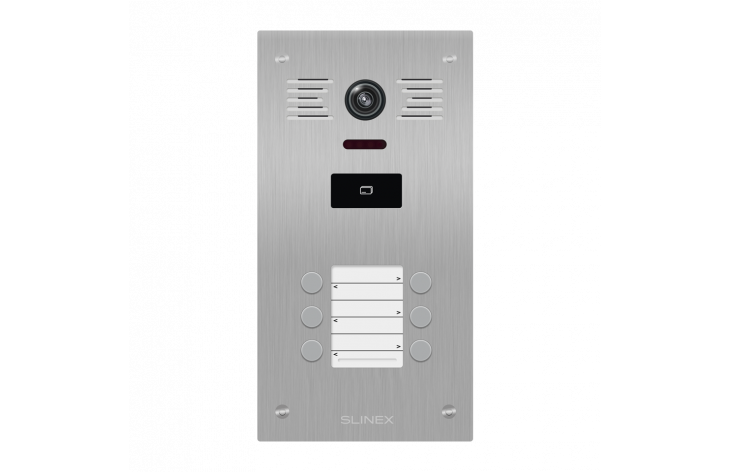

The Slinex MB’s front panel is made of durable stainless steel, giving it a sleek, modern look with a rectangular silhouette and gently rounded corners. Positioned at the top is a Full HD camera equipped with infrared illumination and a mechanical IR filter, guaranteeing clear, high-quality visuals even under low-light conditions.
Interoperability with additional devices
Built for seamless connectivity, the Slinex MB-06CRHD integrates easily with any 4-wire intercom system, ensuring smooth, effective communication.
Horizontal viewing angle
140º
Camera resolution
1920×1080 (AHD-H)
Dimensions
130×253×55 mm
Operating temperature
-40 – +50 °С
Characteristics
- Device type
- Outdoor panel for 6 subscribers
- Unique features
- • Mechanical or magnetic locks, up to 2 A current
• Mechanical IR cut filter
• Wide-angle lens
• Nameplate backlight - Type of sensor
- 1/3" CMOS
- Cards type
- EM-Marin
- Memory capacity
- 1000 ID cards
