Slinex MB-16CRHD
Multi-apartment outdoor panel with EM-Marin reader
- Resolution 2 MP (AHD)
- EM-Marin reader
- Wide viewing angle
- Nameplate backlight
Slinex MB-16CRHD
Multi-apartment outdoor panel with EM-Marin reader
- Resolution 2 MP (AHD)
- EM-Marin reader
- Wide viewing angle
- Nameplate backlight
Colors
Description
Introduction
The Slinex MB-16CRHD outdoor panel is a modern, high-performance solution for secure access control and seamless visitor communication. Its housing features an elegant design built with high-quality materials, offering a refined appearance and solid durability in diverse weather conditions.
Where it can be used
Designed with versatility in mind, this panel is an excellent choice for numerous settings – whether in residential complexes, corporate offices, or industrial facilities. It suits both indoor and outdoor installations and can be easily mounted on walls or pillars.
Specifications of the model
A standout feature of this series is its integrated EM-Marin contactless card reader, which provides secure and monitored entry. With the capacity to store up to 1000 cards, the device ensures reliable access management. Additionally, the combination of a mechanical IR filter and infrared illumination improves low-light image quality, enabling clear visitor identification at all hours.
Appearance and Camera

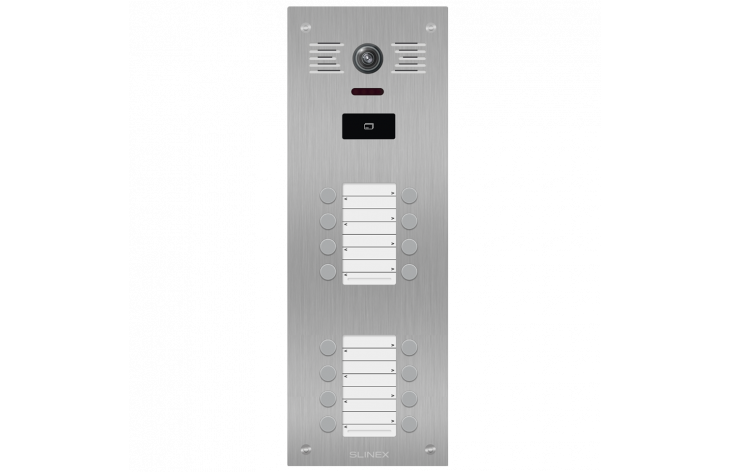

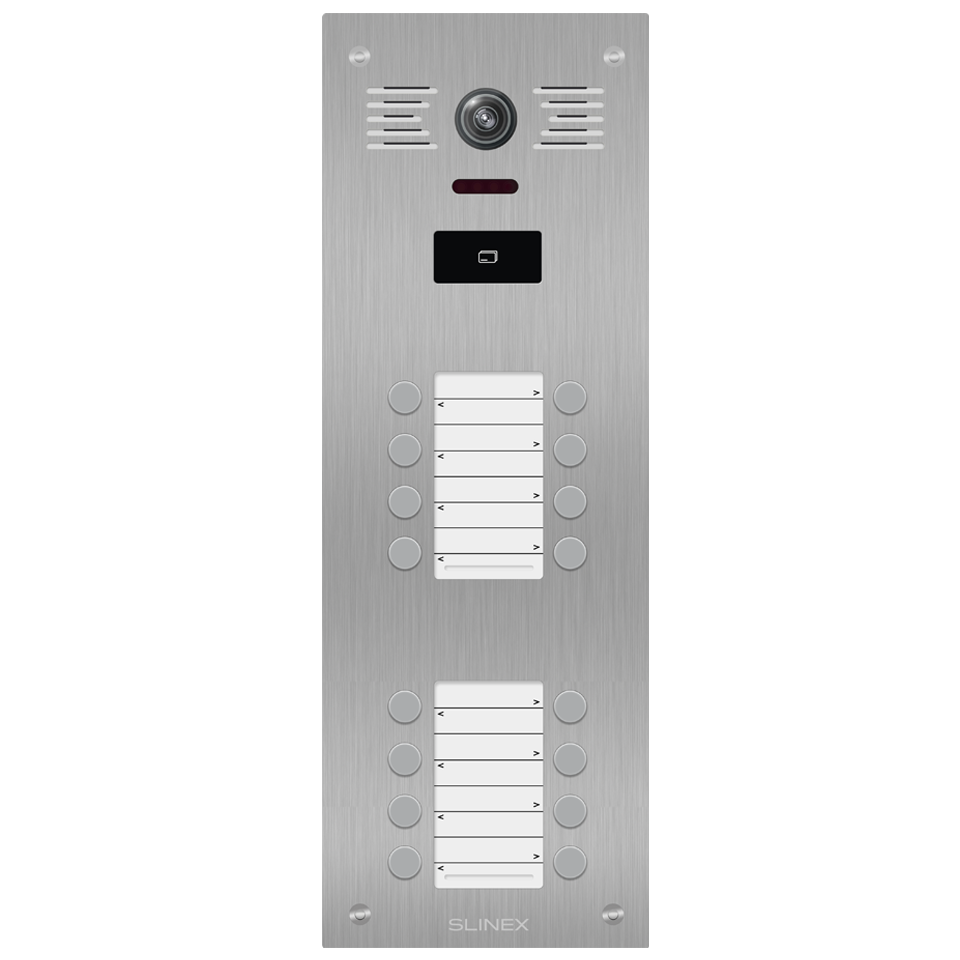

The front panel is constructed from high-quality stainless steel, offering a sleek and contemporary appearance with a rectangular design softened by rounded edges. At the top, a Full HD camera with infrared illumination and a mechanical IR filter ensures sharp visuals even in low-light environments.
Interoperability with Additional Devices
Engineered for seamless integration, the Slinex MB outdoor panel is fully compatible with any 4-wire intercom system, providing enhanced connectivity and operational flexibility.
Horizontal viewing angle
140º
Camera resolution
1920×1080 (AHD-H)
Dimensions
130×376×55 mm
Operating temperature
-40 – +50 °С
Characteristics
- Device type
- Outdoor panel for 16 subscribers
- Unique features
- • Supports mechanical or magnetic locks with up to 2A current
• Built-in mechanical IR cut filter
• Wide-angle camera lens
• Backlit nameplate - Type of sensor
- 1/3" CMOS
- Cards type
- EM-Marin
- Memory capacity
- 1000 ID cards
