Product Overview

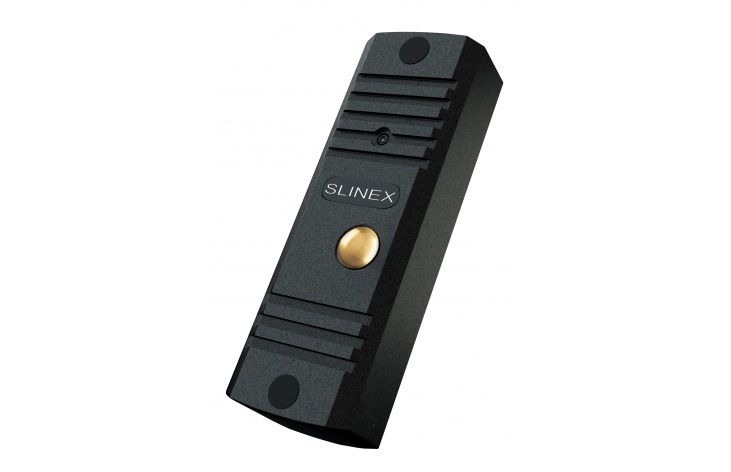

Meet the upgraded Slinex ML-16HD, a high-performance yet budget-friendly outdoor panel that makes advanced technology accessible. Equipped with a premium 2-megapixel camera and housed in a robust, anti-vandal metal casing, the ML-16HD stands out as the superior choice in its category.

Camera

At the core of the ML-16HD is its remarkable 2-megapixel camera, delivering crisp Full HD images to your monitor. Capture detailed photos and videos of your visitors effortlessly. With a 76° viewing angle, you can clearly observe the area around your entrance. Equipped with a mechanical IR-cut filter, the camera maintains excellent visibility in all lighting conditions, including at night. Additionally, the ML-16HD is compatible with a wide range of analog intercom systems supporting AHD-1, AHD-2, and CVBS video formats.

Housing

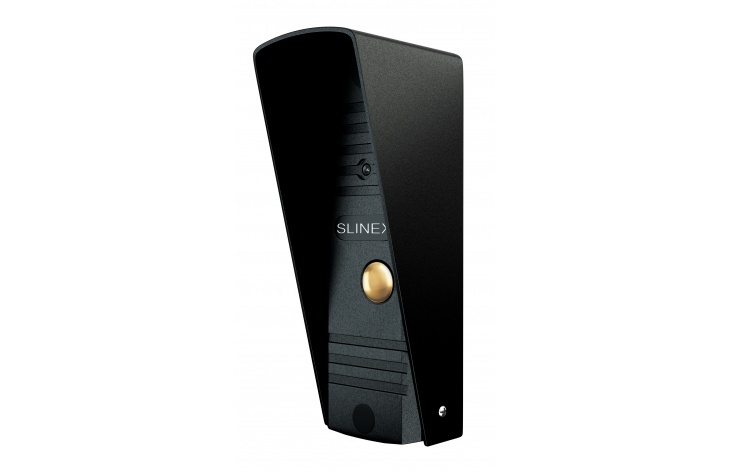

Constructed from sturdy metal alloy, the ML-16HD is built to withstand potential damage from vandalism. Its compact dimensions (41×122×23 mm) allow easy installation even in tight spaces. With an IP65 rating, the panel reliably resists dust, rain, and snow. A supplied rain cover provides additional protection, ensuring dependable operation in temperatures from -40°C to +65°C.

Features

Integrated infrared illumination offers clear night vision, enabling the identification of visitors even a meter or more away in total darkness. Microphone sensitivity can be adjusted at the panel, ensuring optimal audio clarity. Installation is versatile, allowing either surface-mounted or flush-mounted setups.

Compatibility

The ML-16HD outdoor panel seamlessly integrates with nearly all standard 4-wire intercom systems available today.
