Introduction

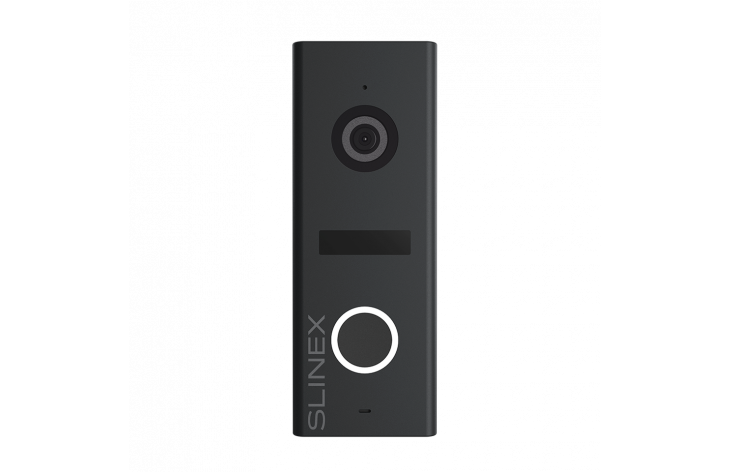

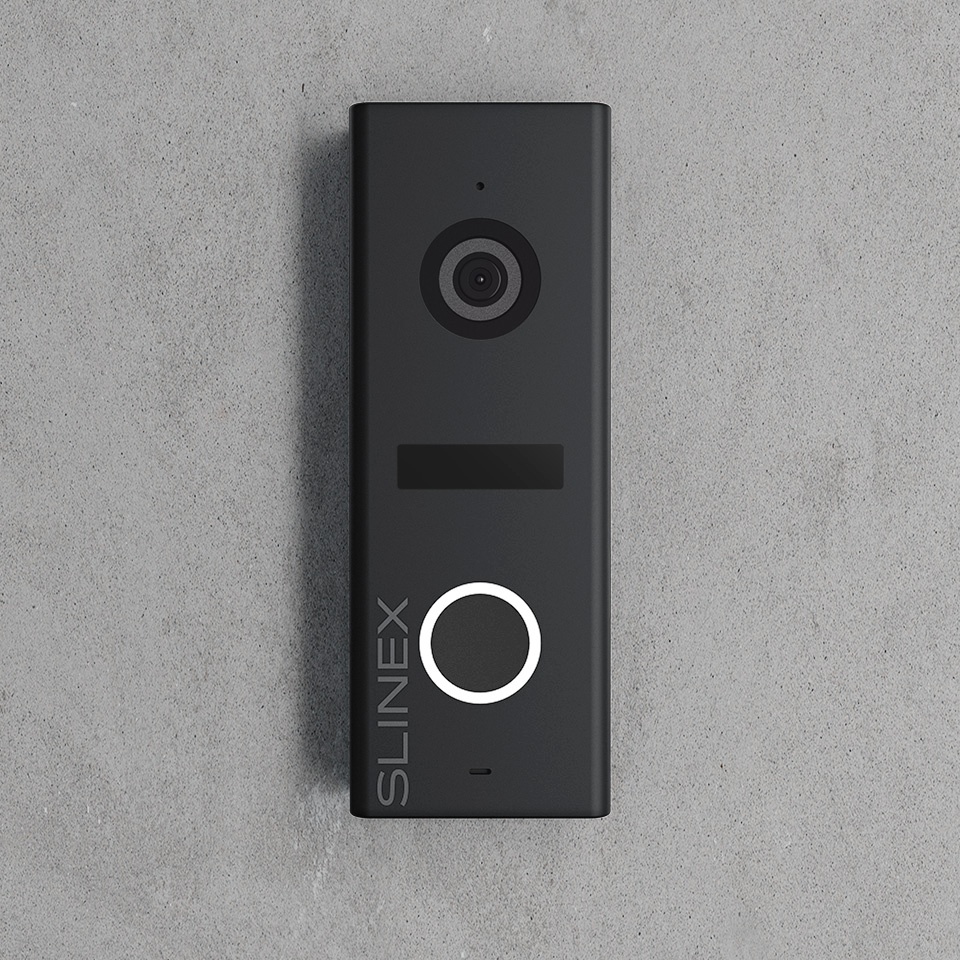

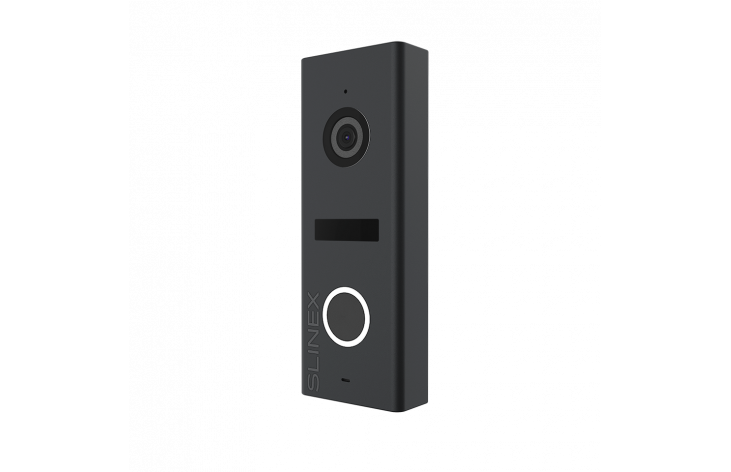

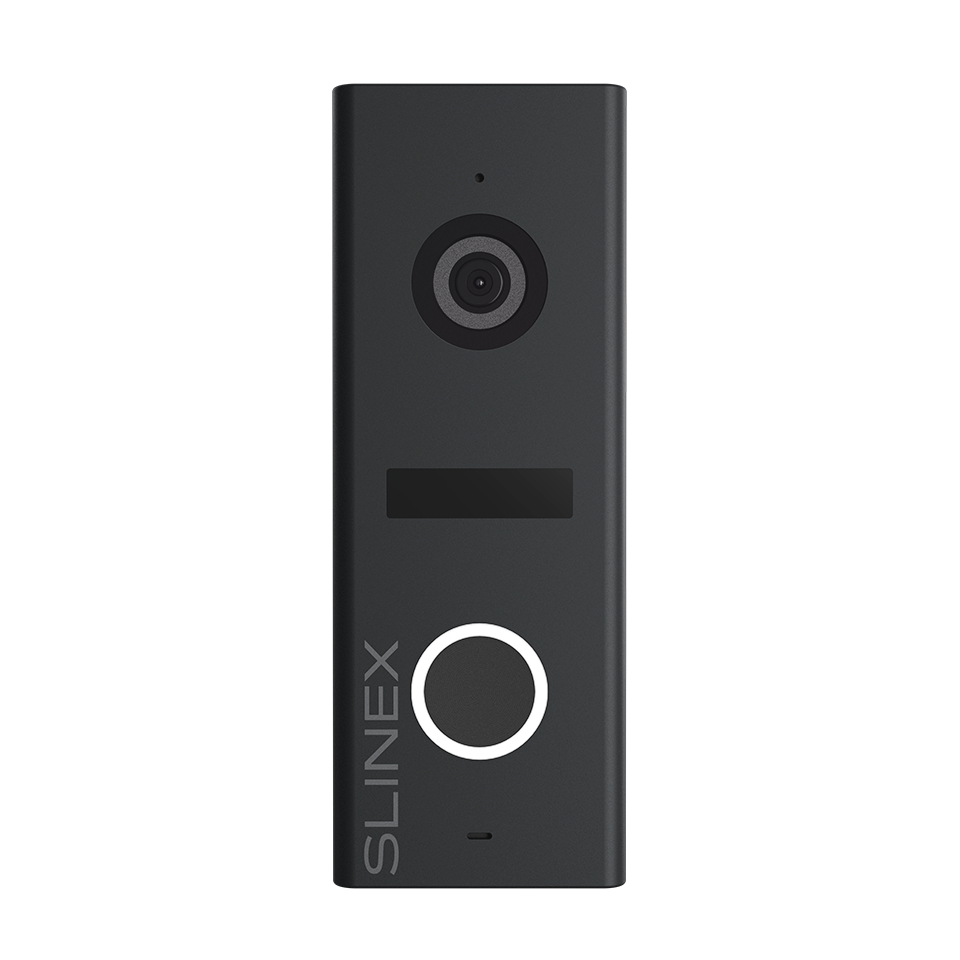

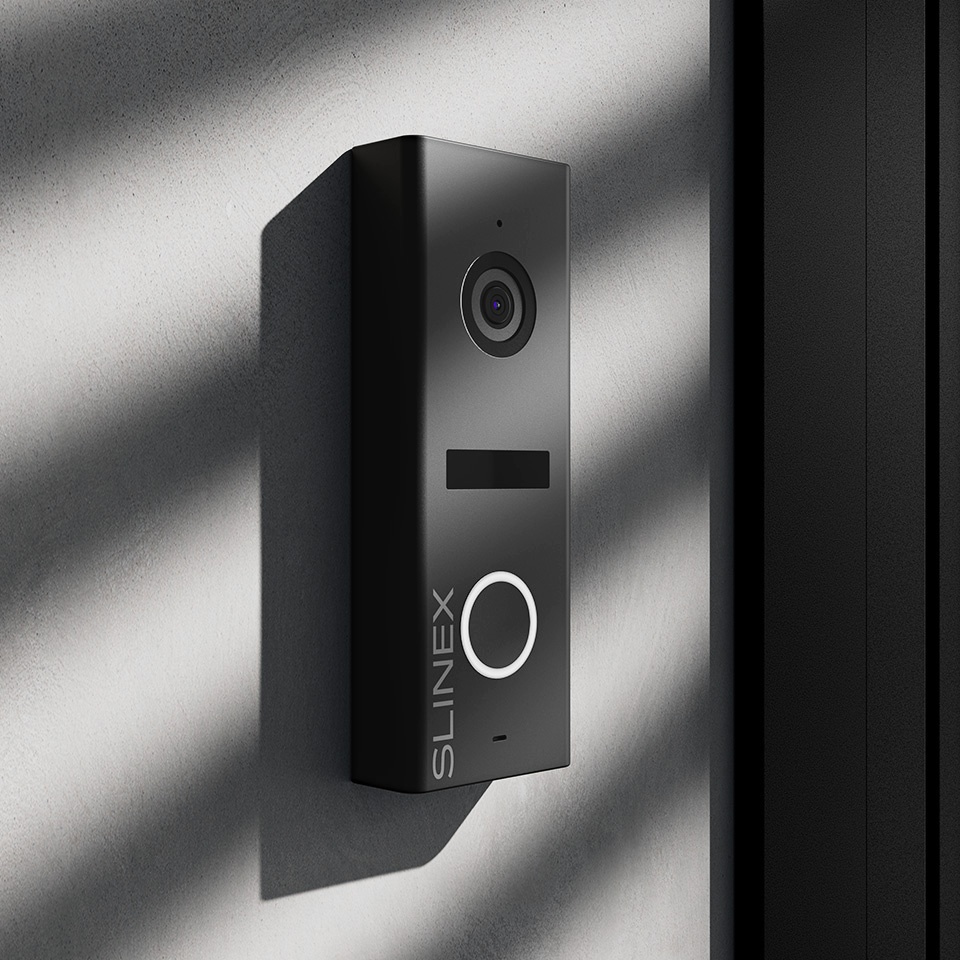

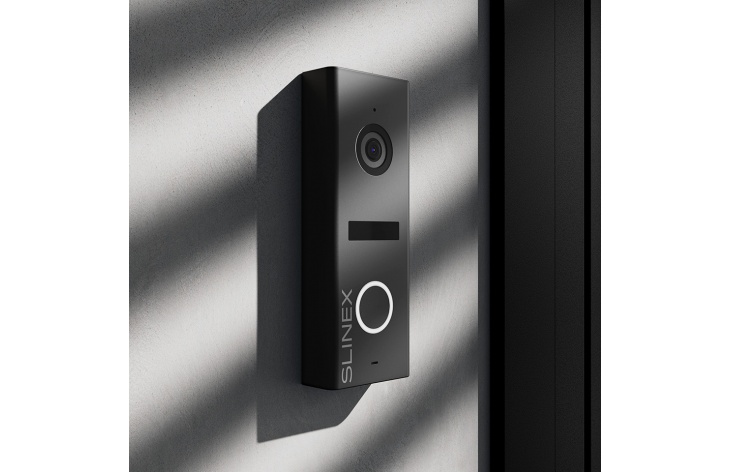

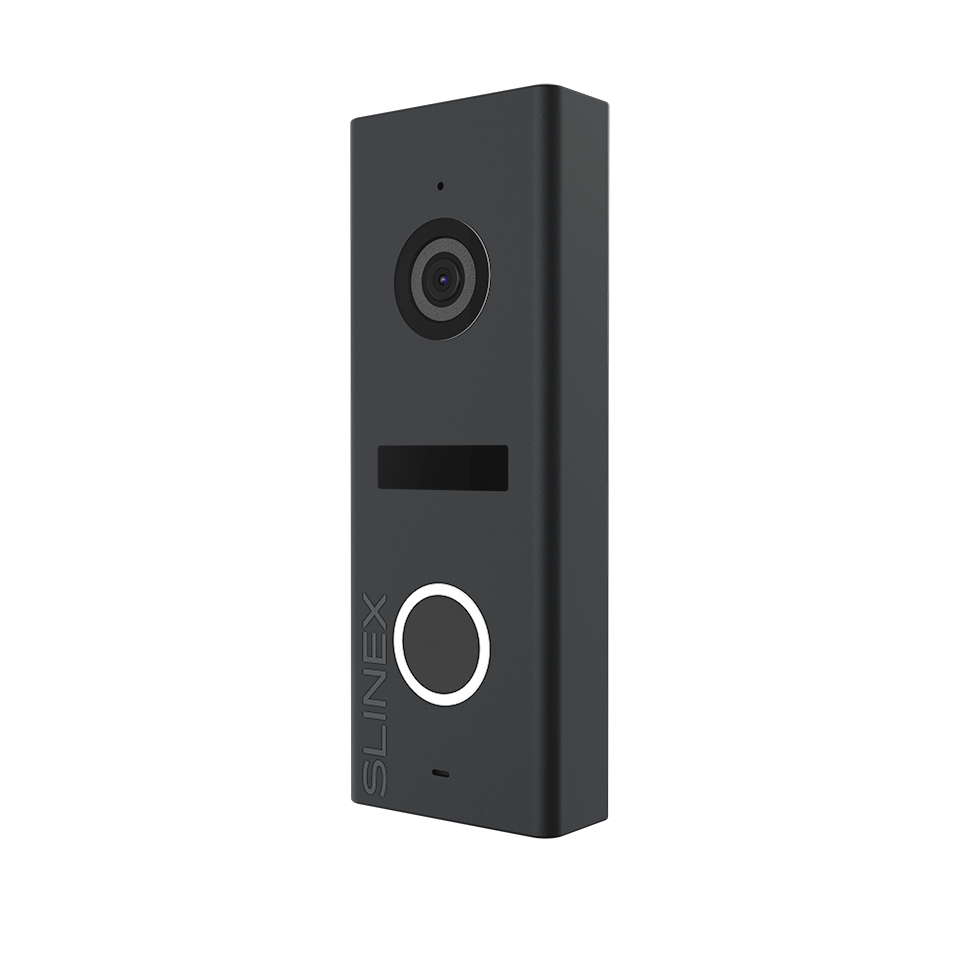

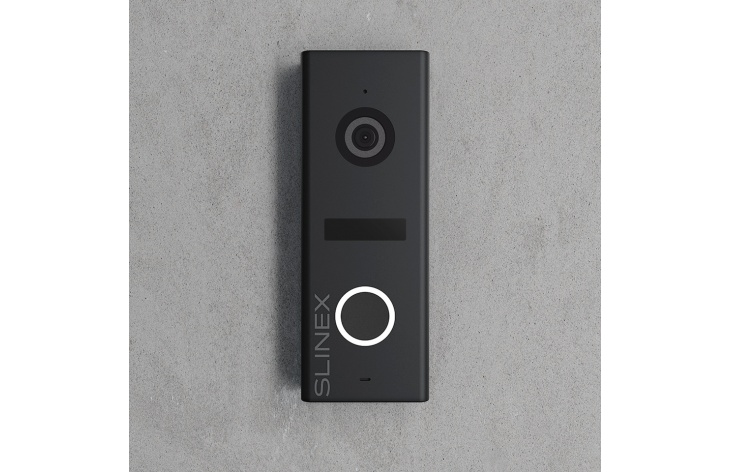

The Slinex ML-17HR outdoor panel combines durability and practicality in a robust, weatherproof, anti-vandal casing. It features a high-quality wide-angle lens with a 110° field of view, compatibility with both electromechanical and electromagnetic locks, and a user-friendly interface.

Applications

Versatile and easy to operate, the ML-17HR suits a variety of buildings and can be installed both indoors and outdoors. Its practical design makes it a perfect choice for entrances to offices, apartments, common corridors, or private homes.

Panel Features

The ML-17HR supports both electromagnetic and traditional electromechanical locks, offering versatility particularly beneficial for businesses, offices, retail stores, pharmacies, and other commercial establishments. Users can conveniently control these locks directly through the outdoor panel.

Its relay capacity has been significantly upgraded from 1A to 6A, enabling control of standard entry doors, gates, and even large garage doors. The panel can be powered externally, facilitating connection to DVR systems or video intercom units with recording functionalities.

Additionally, the panel’s infrared backlighting provides clear, detailed nighttime viewing, while illuminated buttons simplify operation in low-light conditions.

Design and Camera Specifications

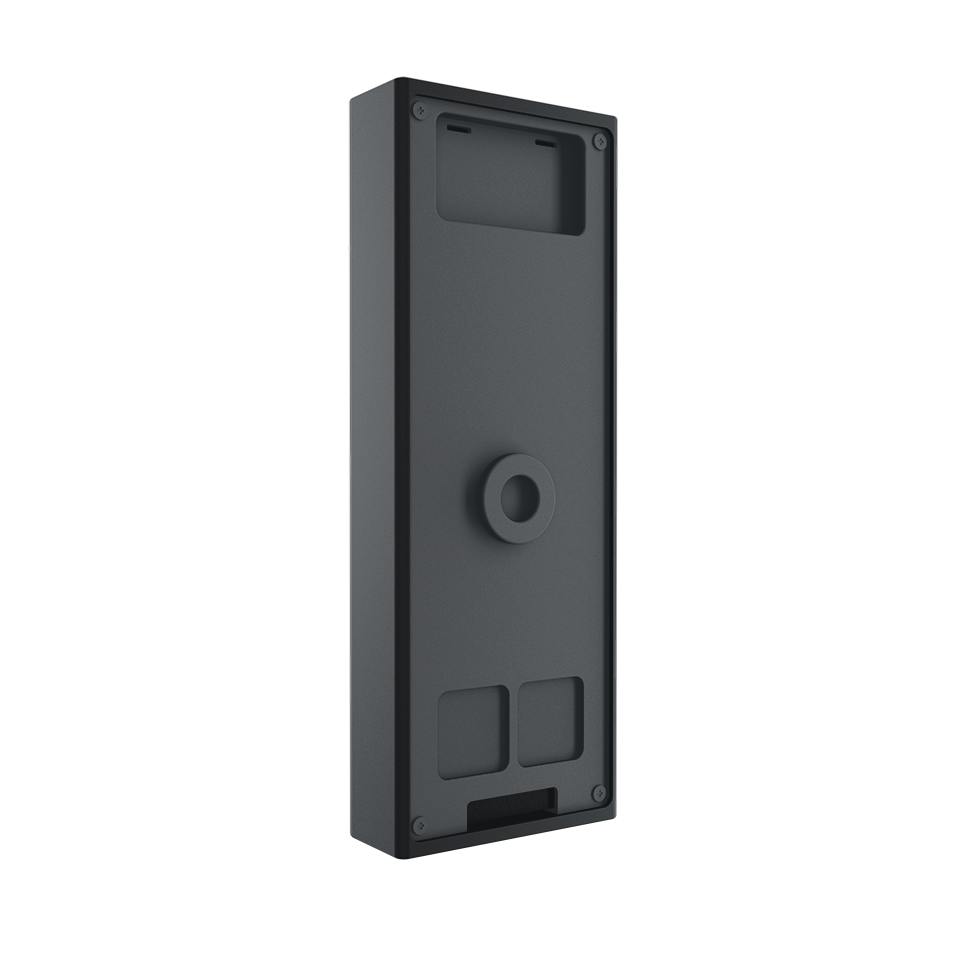

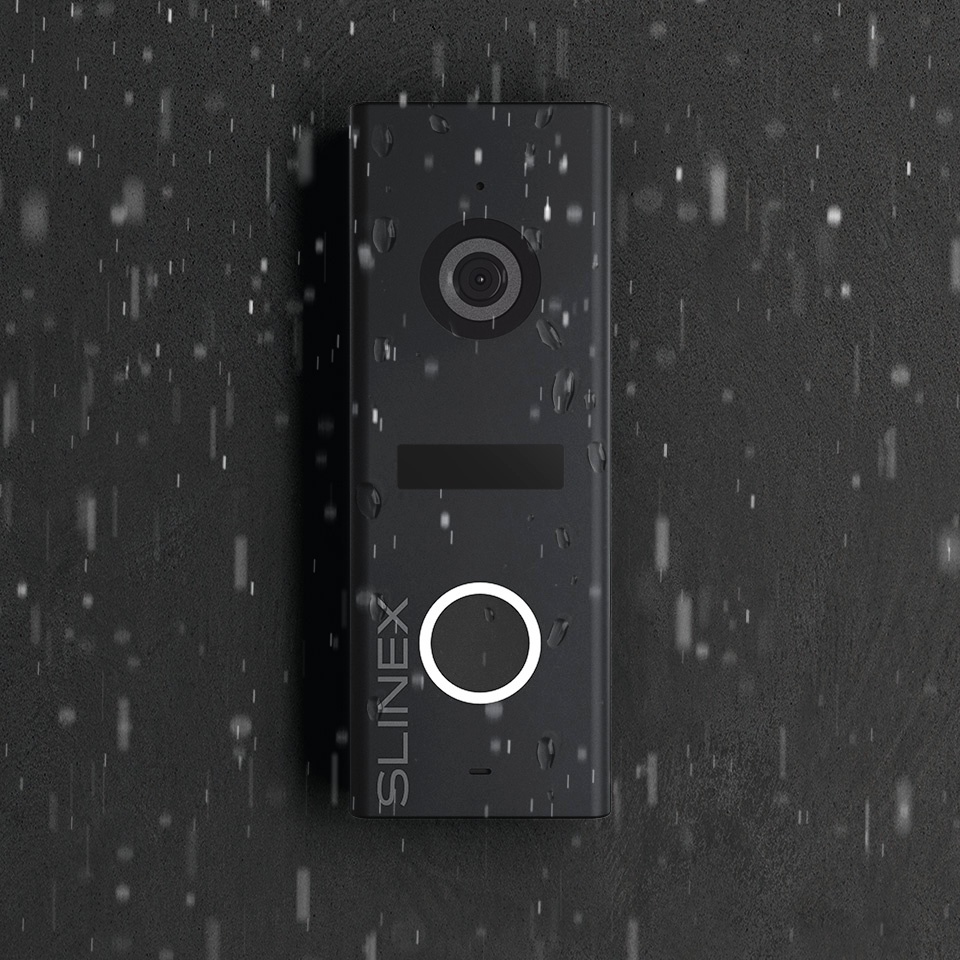

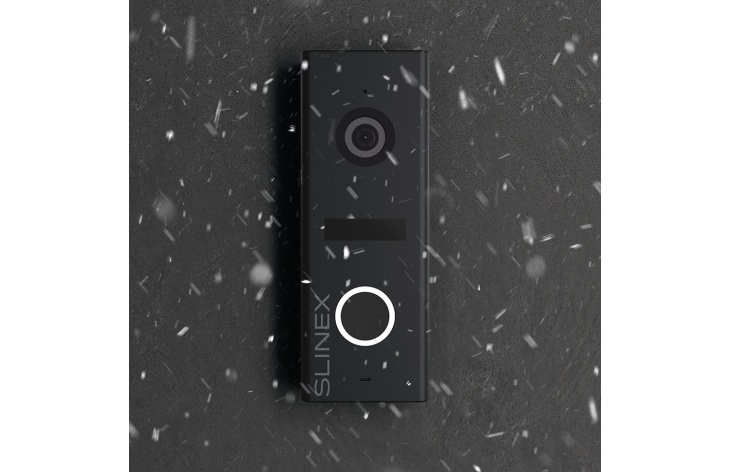

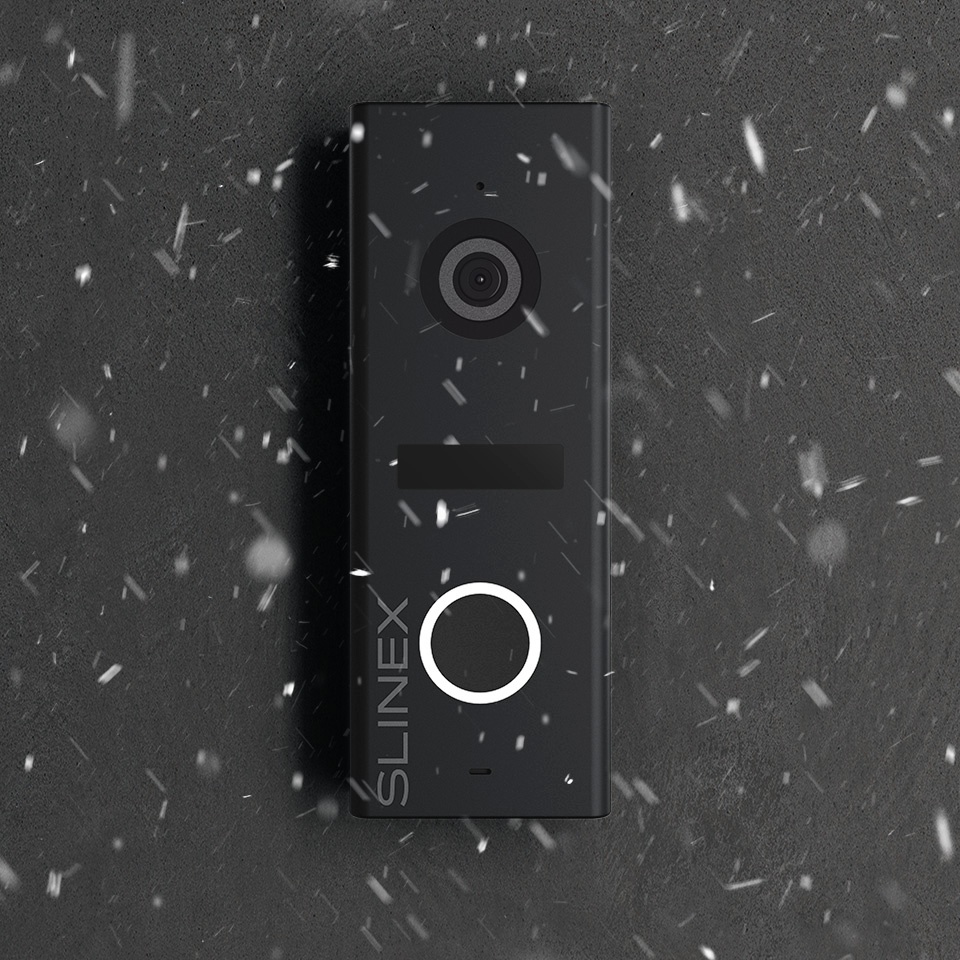

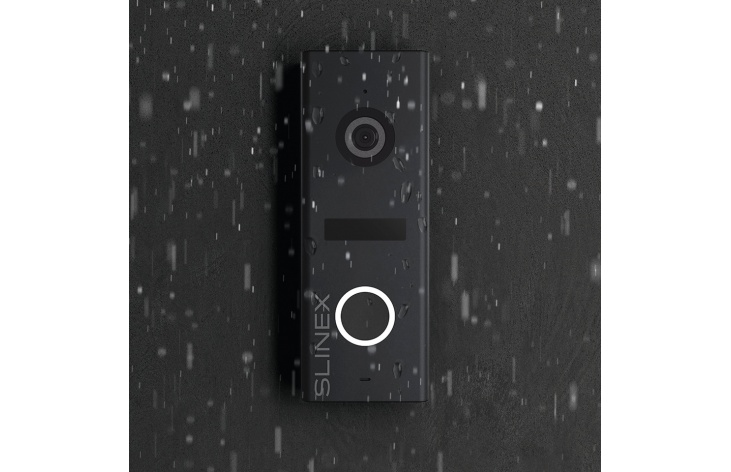

The ML-17HR casing is specially engineered to withstand harsh weather conditions, ensuring complete protection from heavy rain, wind-driven dust, and other elements. With an IP65 rating, this outdoor panel reliably operates within a wide temperature range, from -40 to +65°C.

The integrated color camera employs a highly sensitive CMOS sensor with a minimum illumination requirement of just 0.01 Lux. Offering a crisp 800 TV lines of resolution and a 110° wide viewing angle, the camera ensures excellent image clarity. Additionally, the mechanical IR-cut filter significantly enhances the image quality for both day and night viewing.
