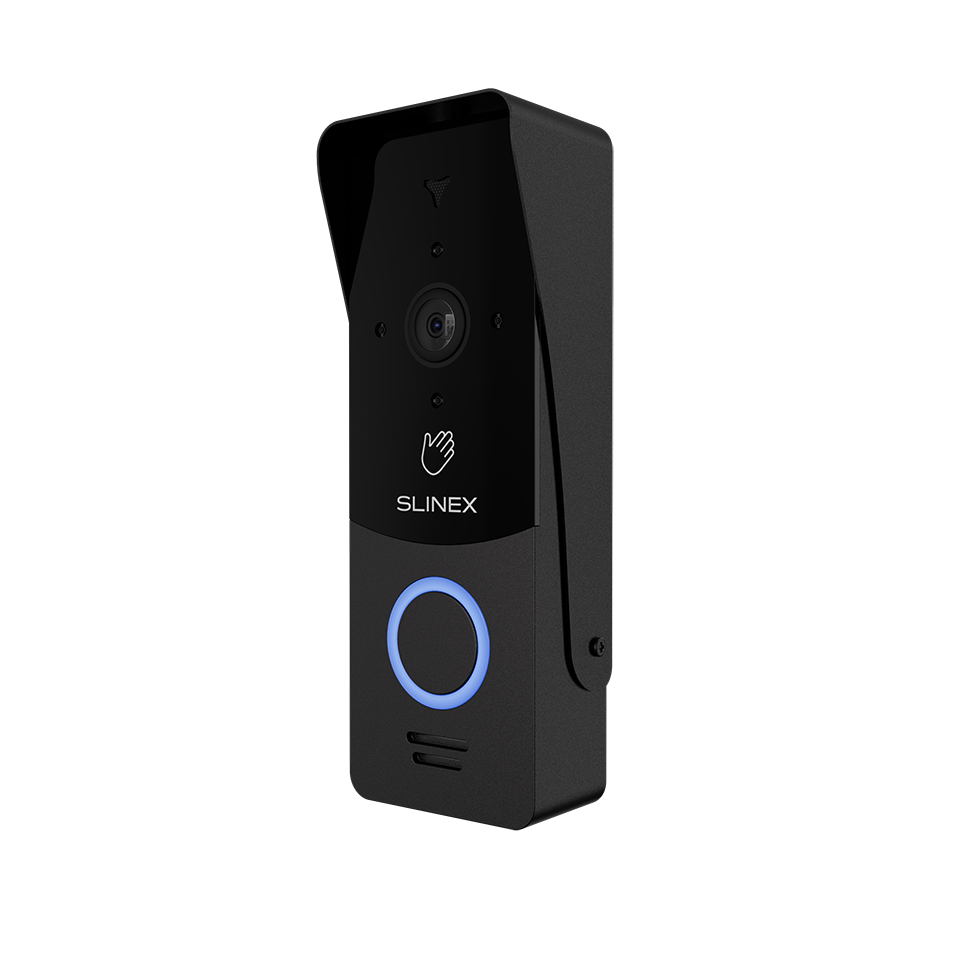

Slinex ML-20TLHD
Individual outdoor panel featuring a touchless call system
- Touchless call initiation
- Resolution: 2 MP (AHD) / 960 TVL (CVBS)
- Mechanical IR-cut filter
Slinex ML-20TLHD
Individual outdoor panel featuring a touchless call system
- Touchless call initiation
- Resolution: 2 MP (AHD) / 960 TVL (CVBS)
- Mechanical IR-cut filter
Colors
Description
Introduction
The ML-20TLHD outdoor panel brings an innovative approach to intercom technology. In line with modern hygiene standards, this device allows users to initiate calls without physical contact. A quick wave of your hand in front of the panel initiates a call instantly.
Application
The Slinex ML-20TLHD is designed specifically for single-user applications, suitable for both busy locations and private properties:
• Businesses requiring appointments, such as dental offices, beauty salons, and notaries;
• 24-hour stores and pharmacies;
• Small office environments;
• Apartment entrances and common corridor installations;
• Individual homes.
Key Features
The ML-20TLHD panel is activated by placing a hand within 10 cm of the sensor, significantly reducing the risk of spreading germs and providing a hygienic solution for communication.
Design and Camera

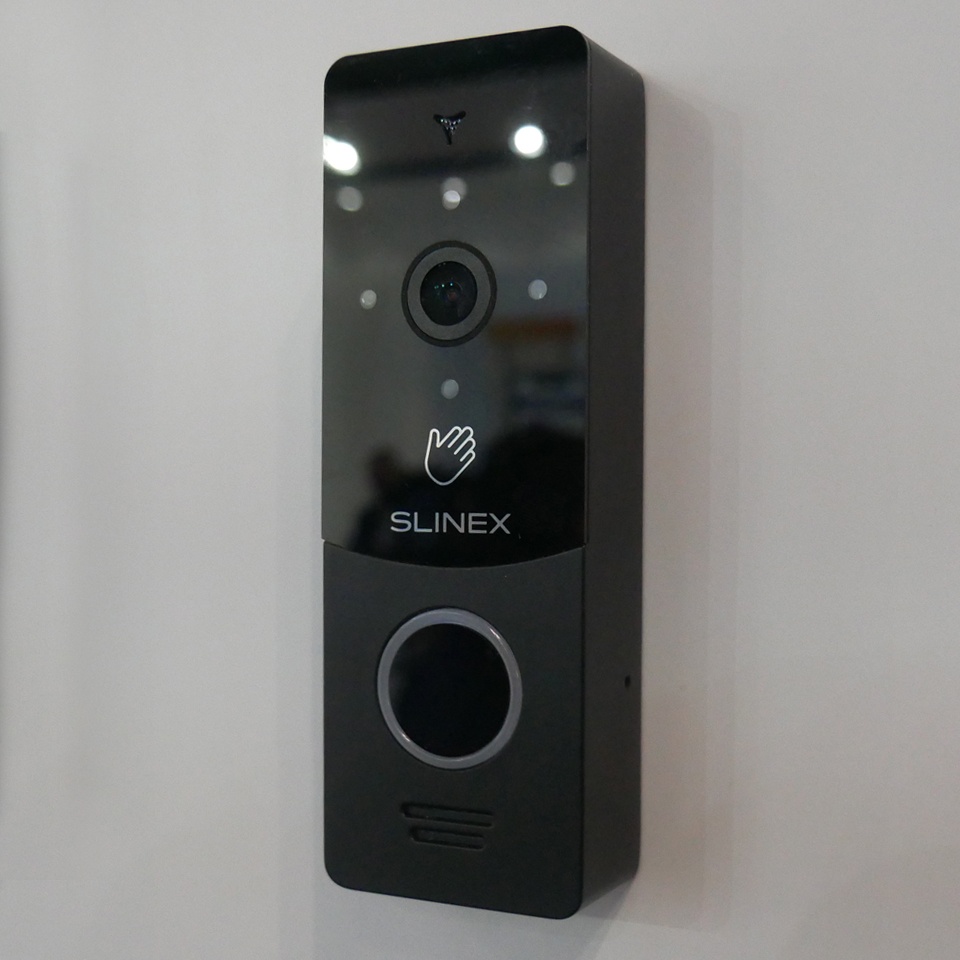

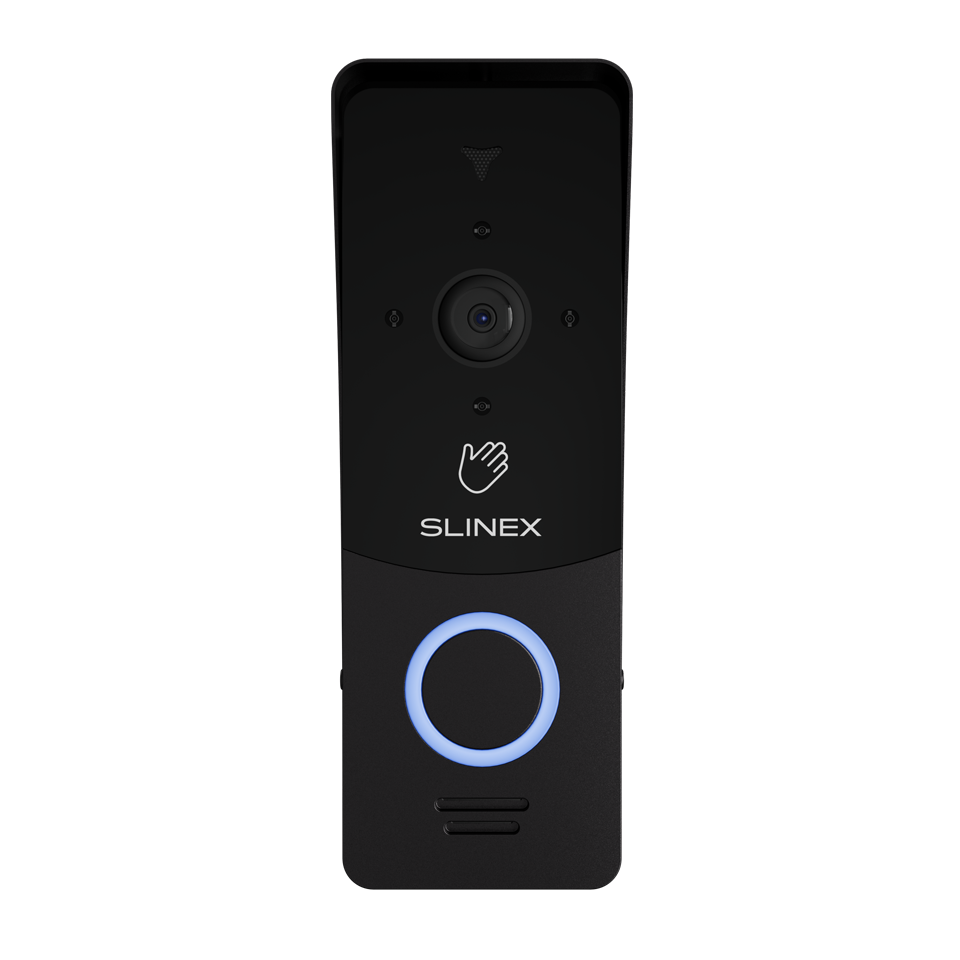

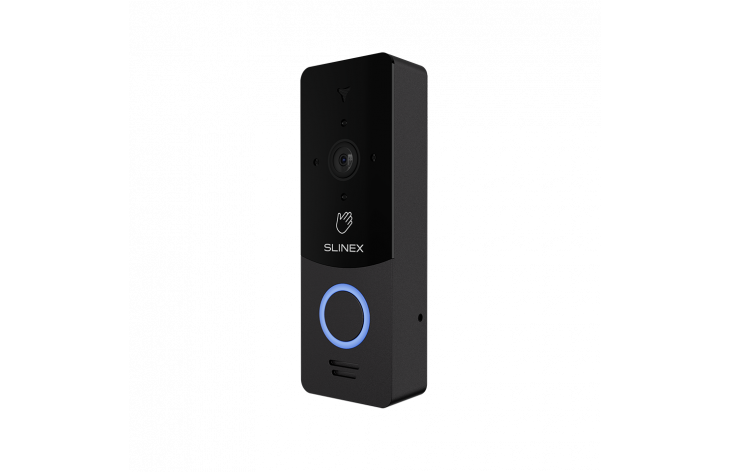

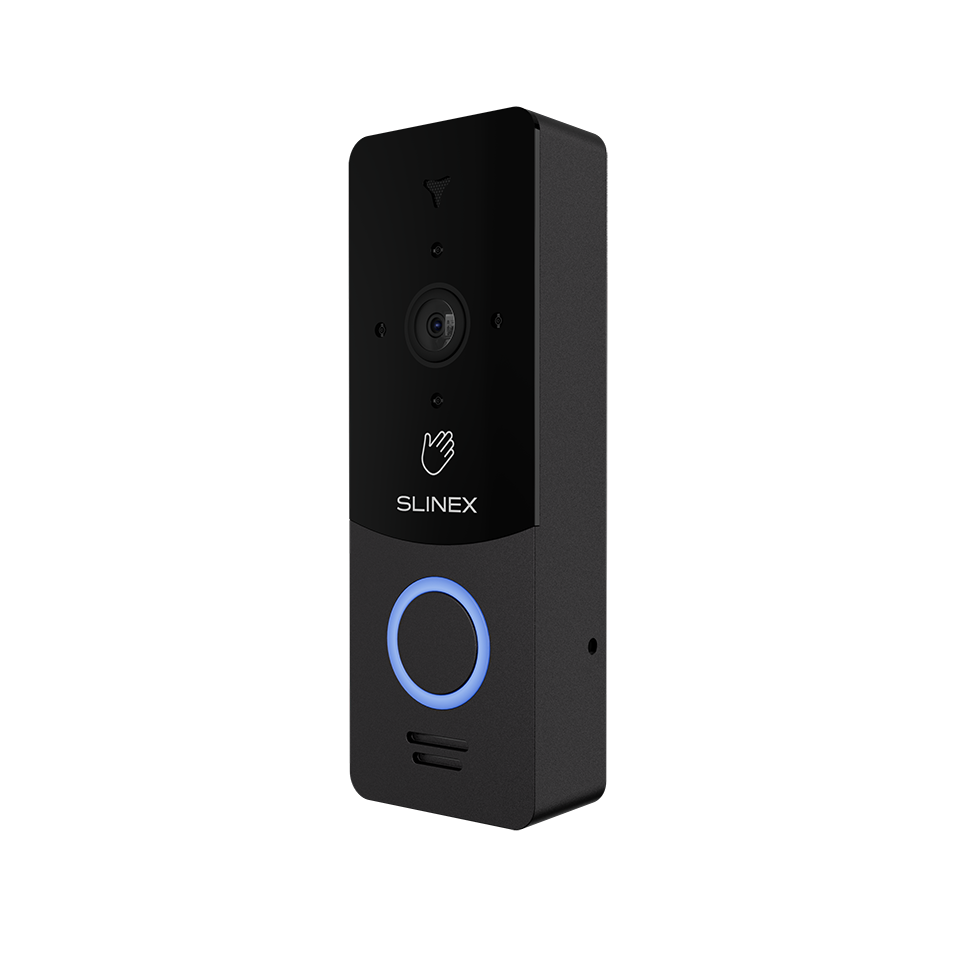

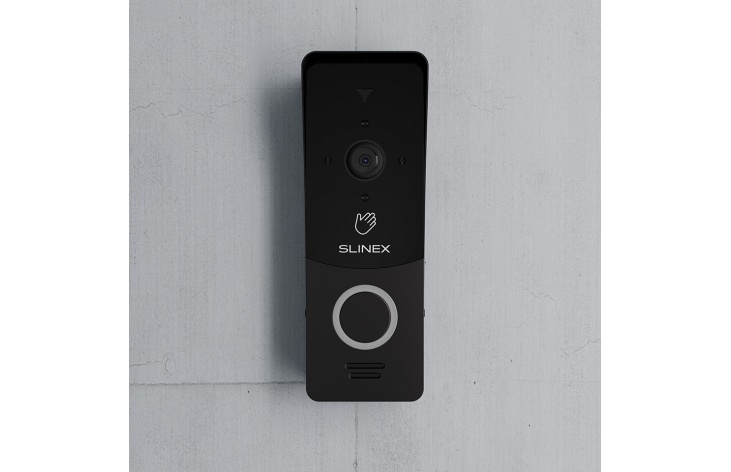

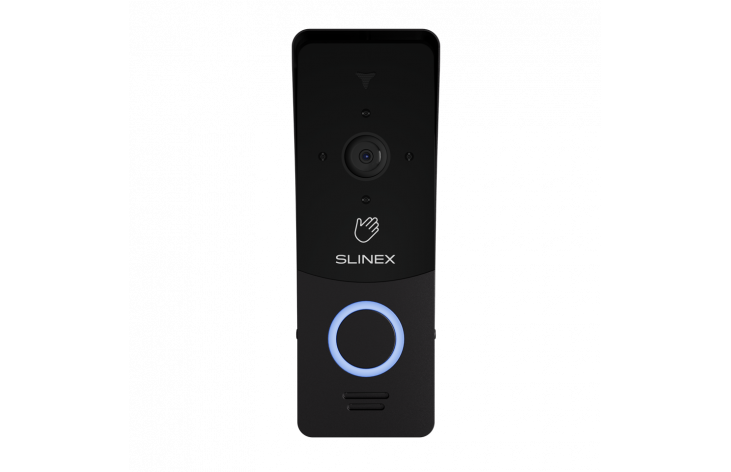

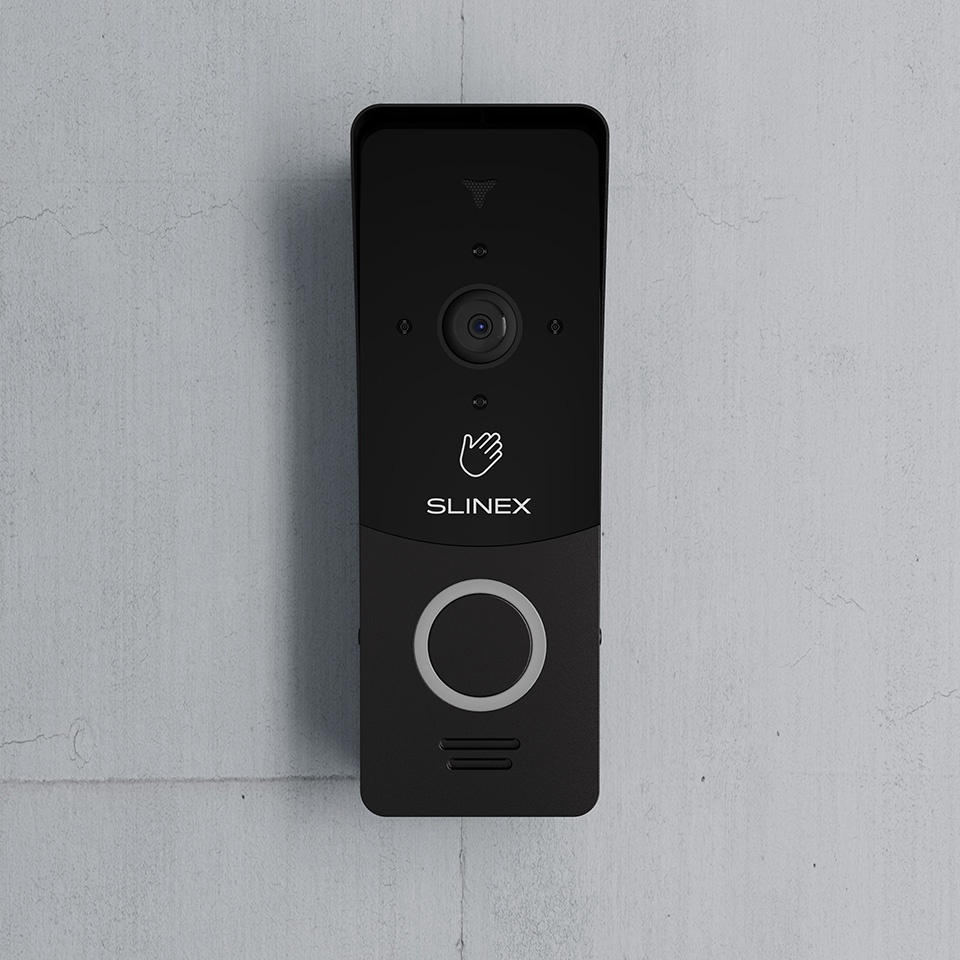

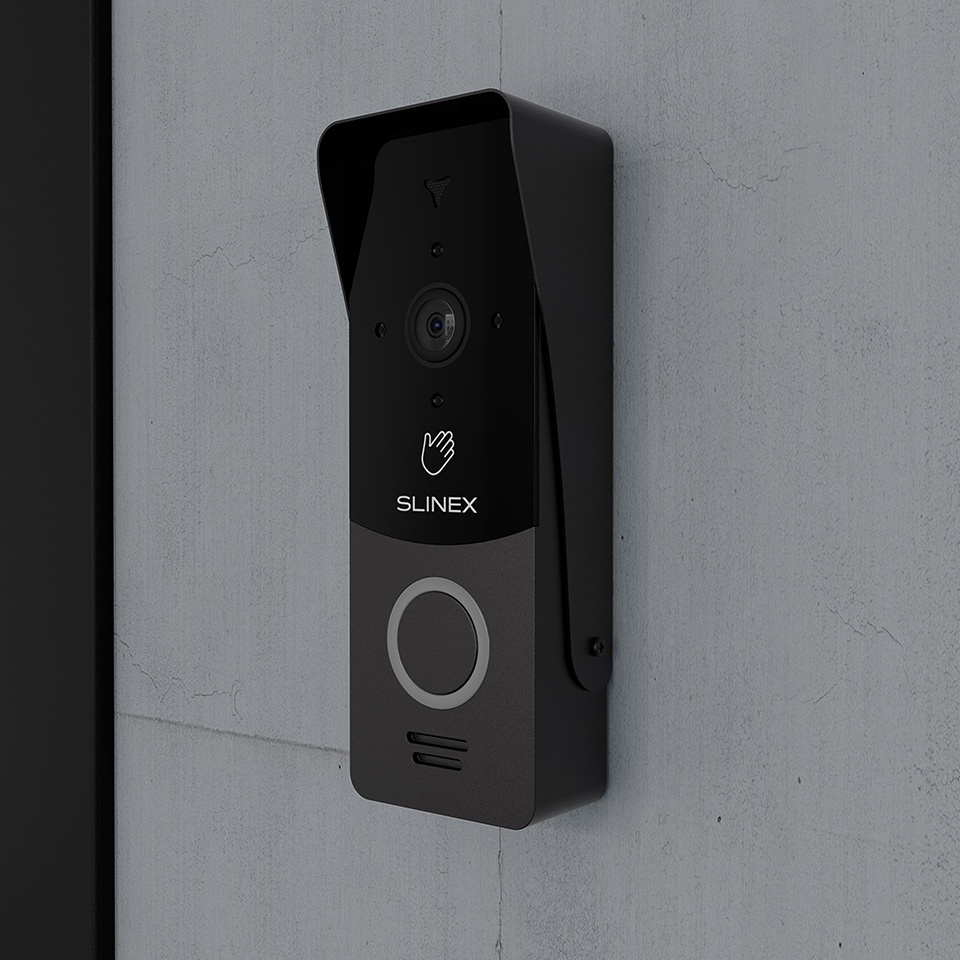

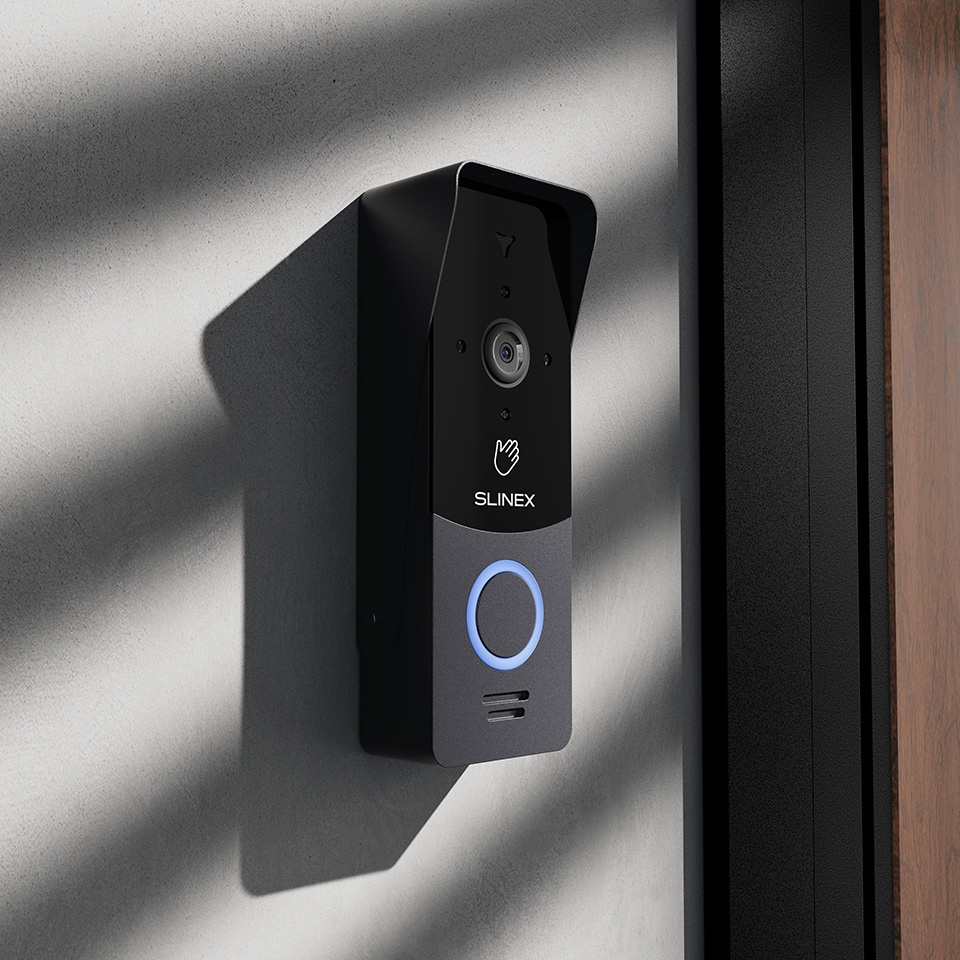

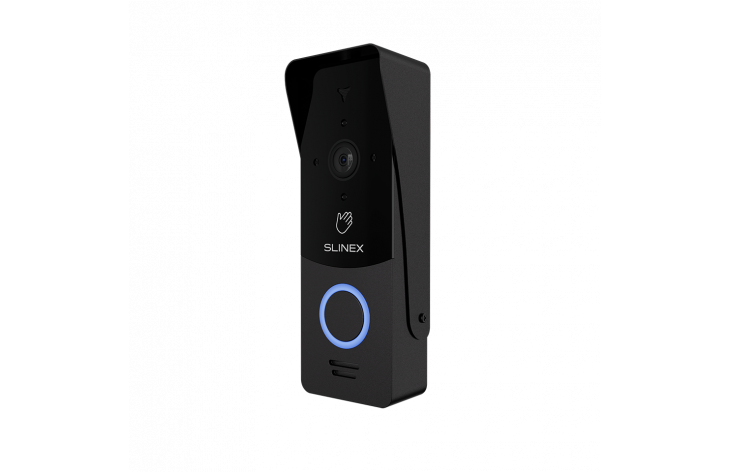

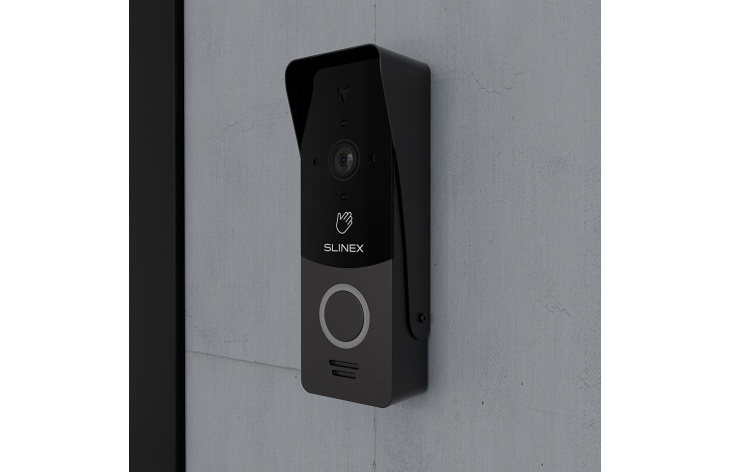

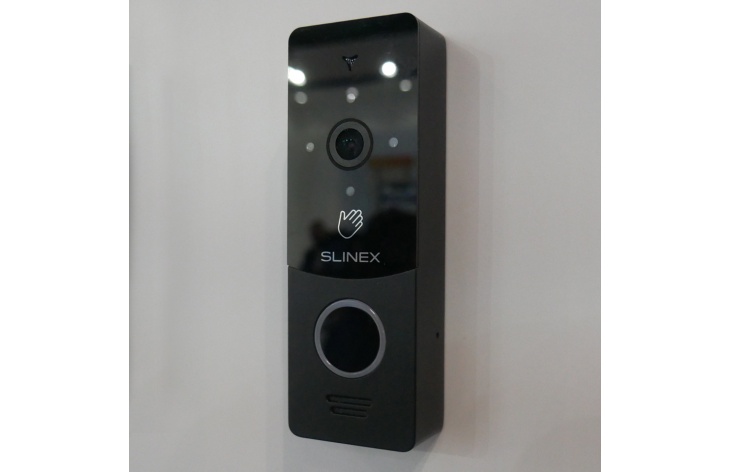

Preserving the refined aesthetic of the ML-20HD series, the ML-20TLHD features a distinctive all-black design. Its durable black metal casing combined with a stylish acrylic front and blue LED illumination on the touchless call button offers a sleek and modern look.
The panel’s integrated AHD-supported camera, equipped with a mechanical IR-cut filter, delivers enhanced image quality and captures vibrant colors with sharp details. The ML-20TLHD includes a camera mode switch button (AHD-H, AHD-M, CVBS), ensuring compatibility with a broad range of analog intercom systems.
Horizontal viewing angle
115°
Camera resolution
• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)
Dimensions
45×130×24 mm
Operating temperature
-40 – +50 °С
Characteristics
- Unique features
- • Contactless call initiation
• Switchable camera operation modes (AHD-H, AHD-M, CVBS)
• Wide-angle viewing lens
• Mechanical IR-cut filter for improved night vision
• Support for mechanical locks up to 1A
• Separate video output for DVR connectivity or motion-activated recording - Type of sensor
- 1/2,9” CMOS
- Night backlight
- IR LED, up to 1.5 m
- Minimal illumination
- 0,01 Lux
- Body structure
- Metal alloy + acrylic glass
