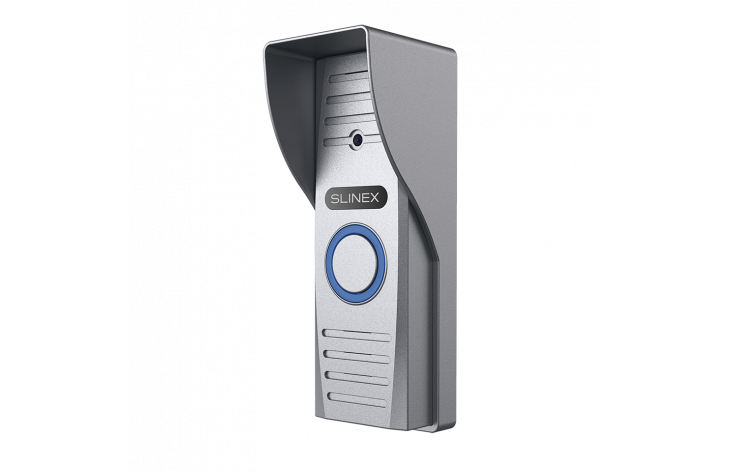

Slinex ML-15HD
Outdoor panel with signal output to a DVR for motion-triggered recording and AHD support
- Resolution 2 MP (AHD) / 1 MP (AHD) / 960 TVL (CVBS)
- Illuminated Button
- Mechanical IR Cut Filter
Slinex ML-15HD
Outdoor panel with signal output to a DVR for motion-triggered recording and AHD support
- Resolution 2 MP (AHD) / 1 MP (AHD) / 960 TVL (CVBS)
- Illuminated Button
- Mechanical IR Cut Filter
Description
Introduction
The Slinex ML‑15HD is a next‑generation door station designed for single‑subscriber setups. A 2 MP camera with a colour CMOS sensor outputs high‑definition AHD video with virtually no lag, ensuring visitors appear crisp and clear in real time.
Where It Can Be Used

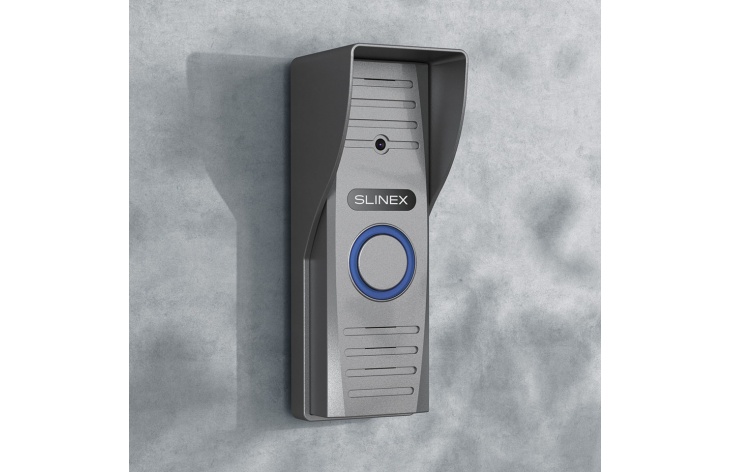

Suitable for both indoor hallways and outdoor entrances, the grey ML‑15HD fits seamlessly at office doors, apartment corridors or private homes—anywhere a one‑user intercom solution is required.
The Panel Features

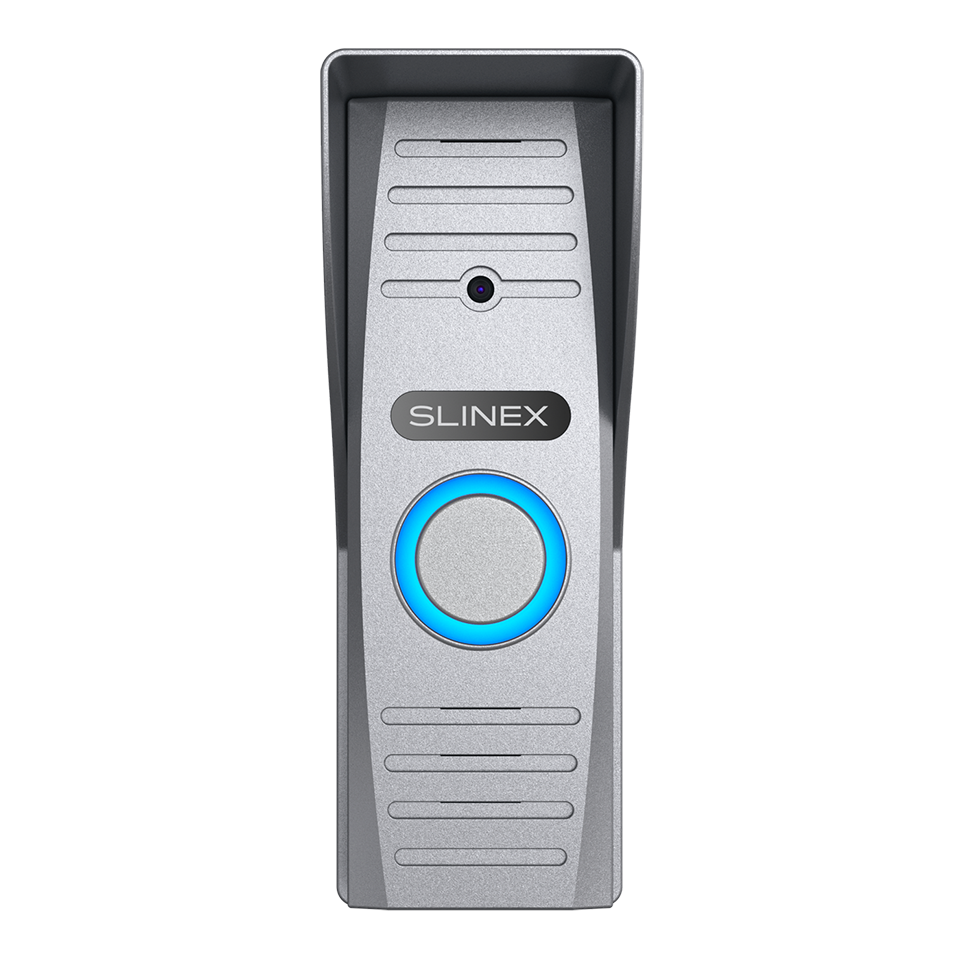

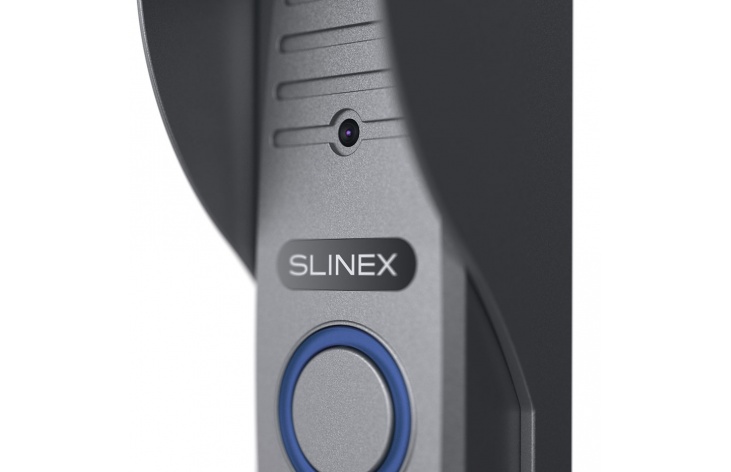

A dedicated power line for the camera makes it easy to hook into DVRs or intercom monitors with recording functions. Built‑in IR LEDs provide reliable night vision, while the softly lit call button stays visible even in total darkness.

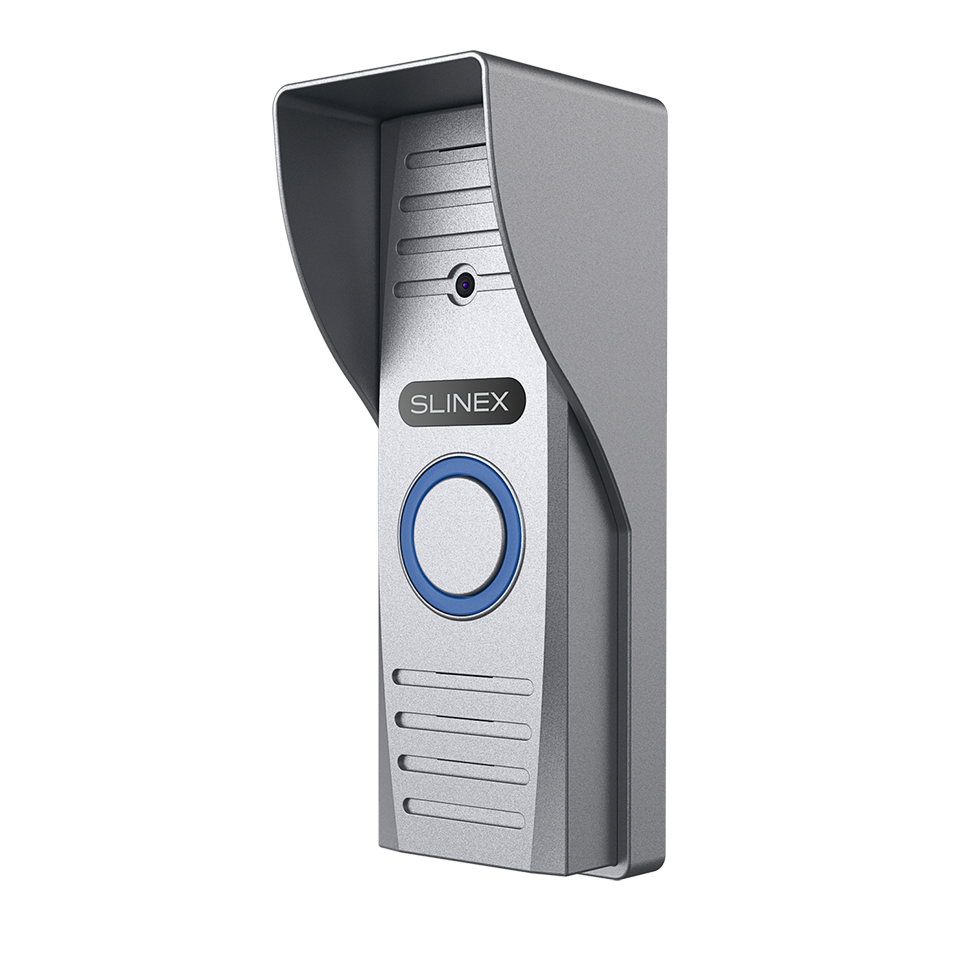

Appearance and Camera

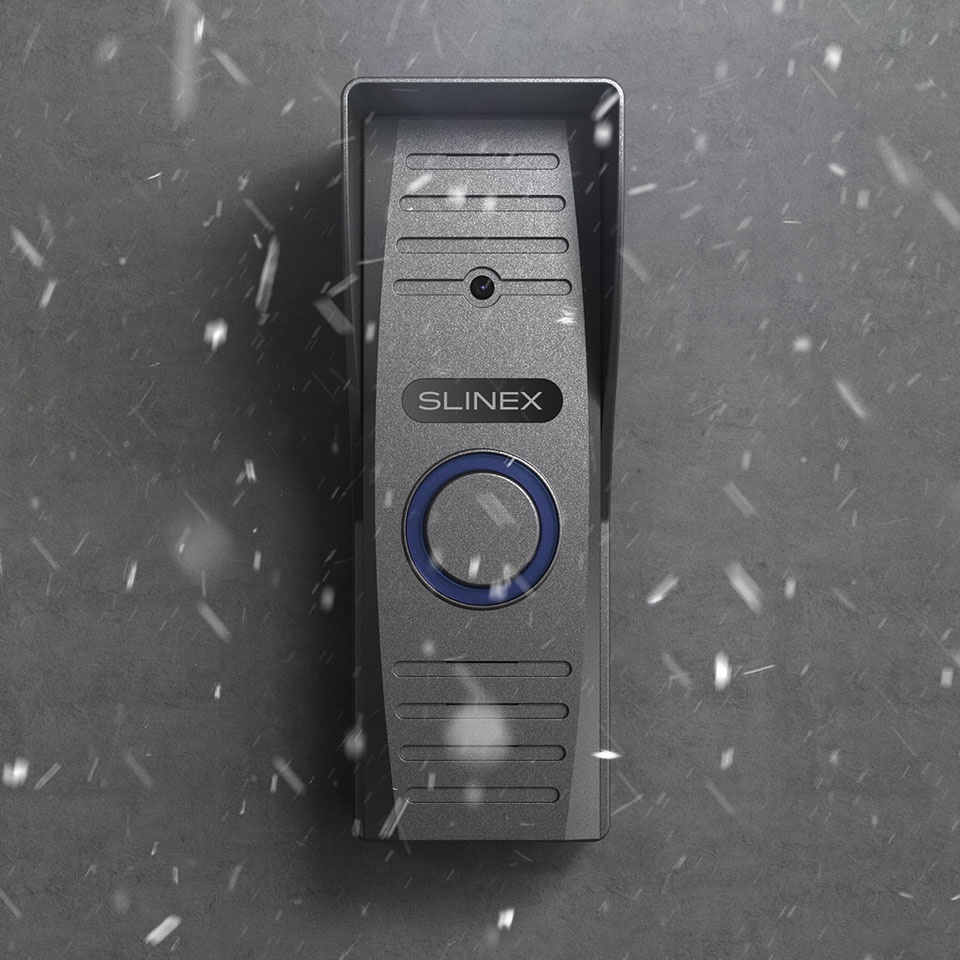

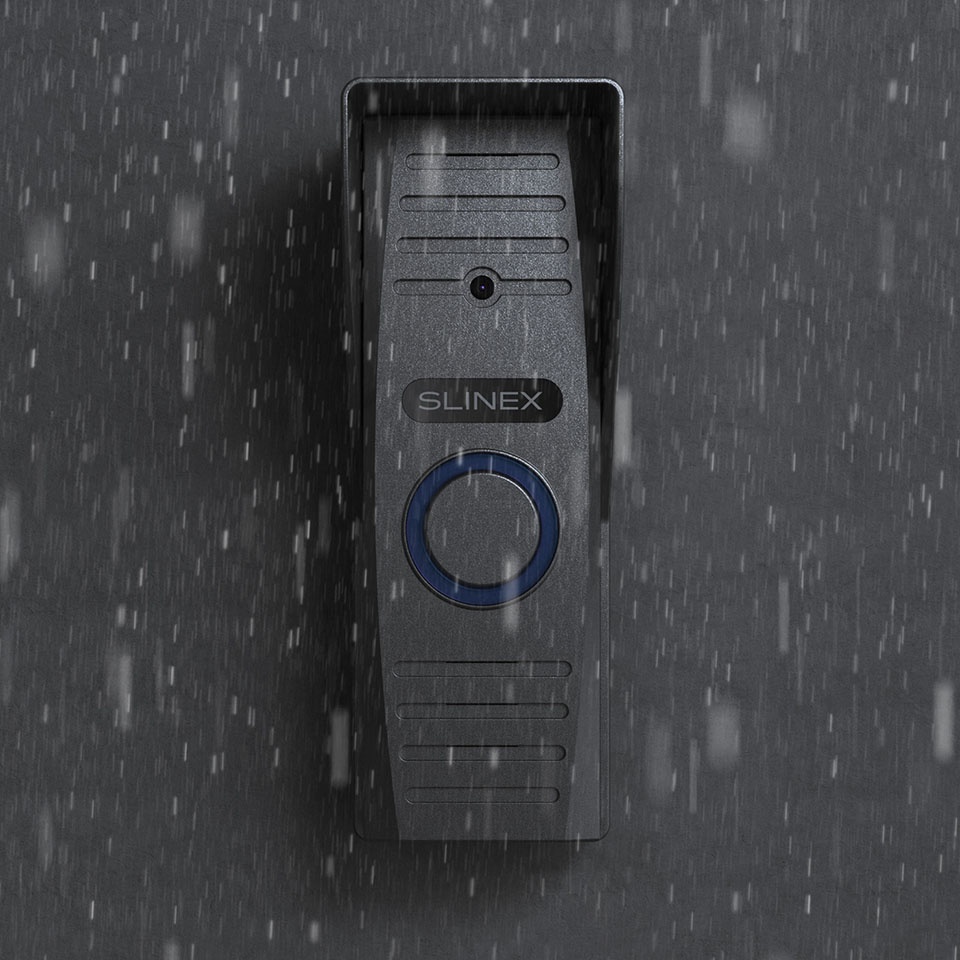

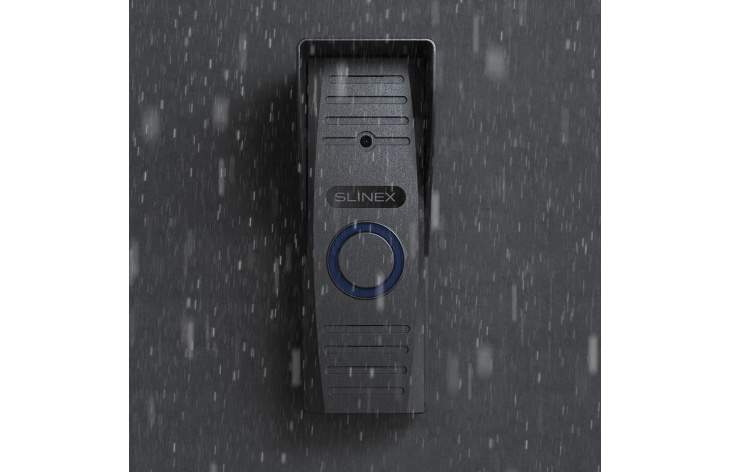

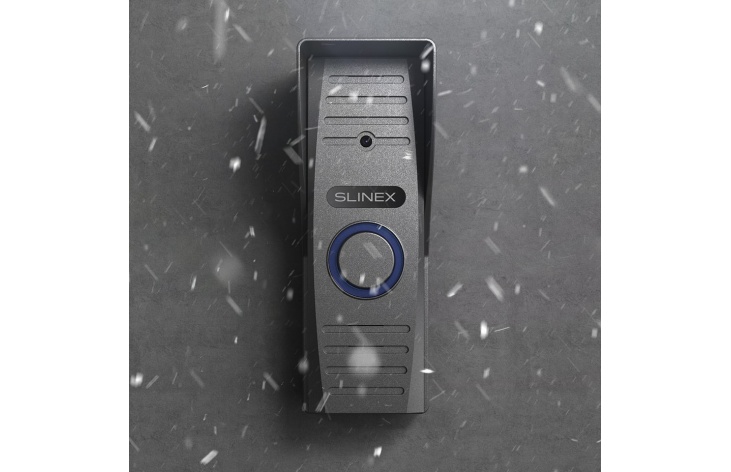

Forged from tough metal alloy, the vandal‑resistant body carries an IP65 rating to keep dust and rain at bay. It operates dependably from ‑40 °C to +65 °C, so harsh climates are no problem.

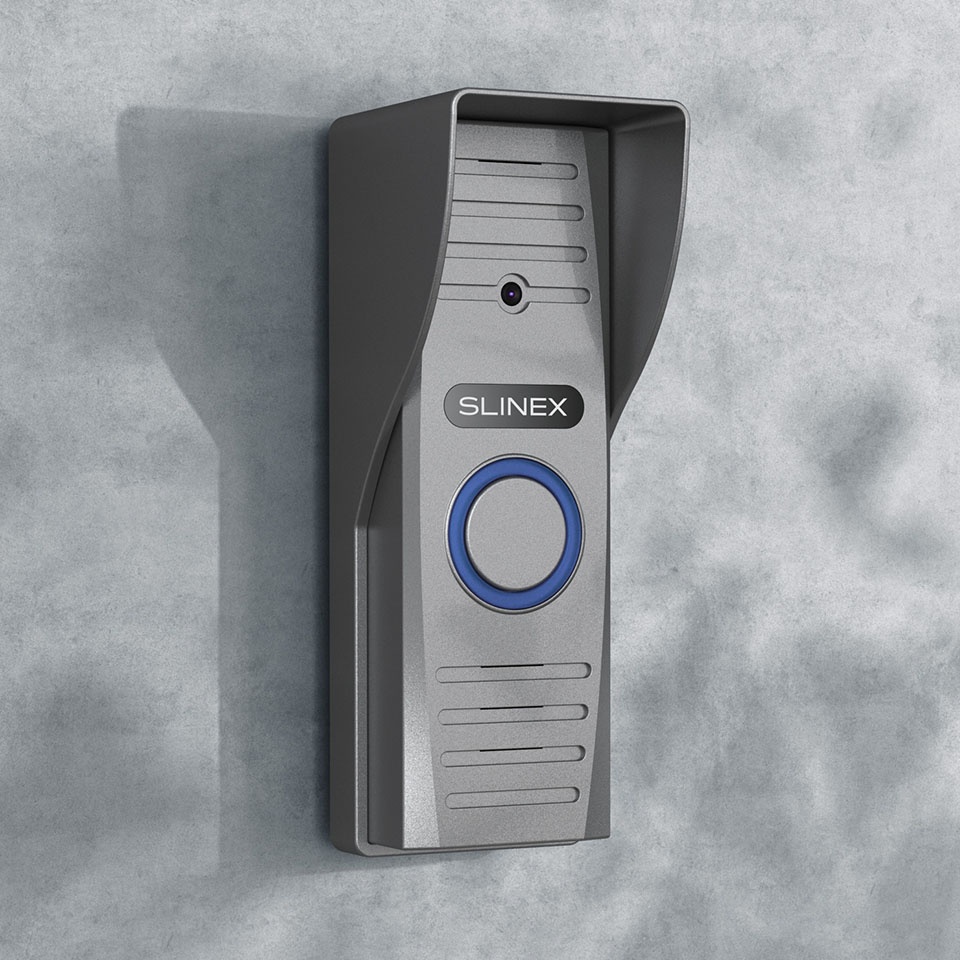

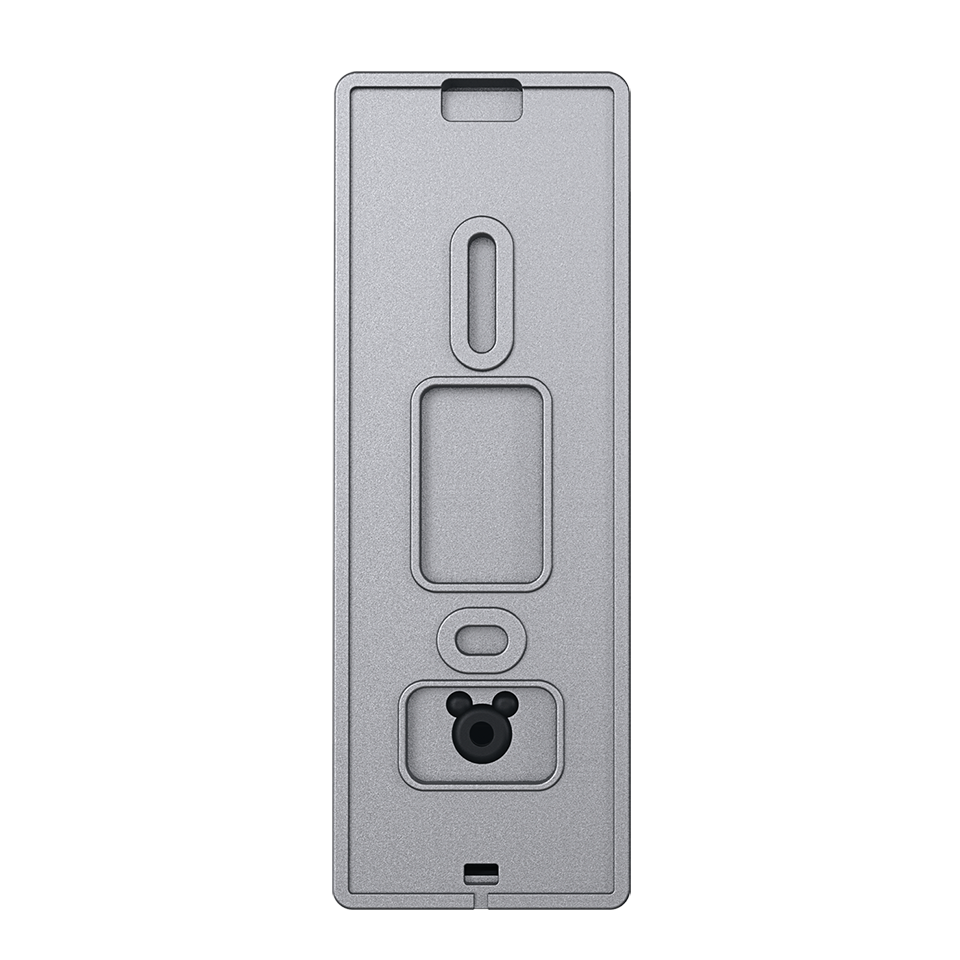

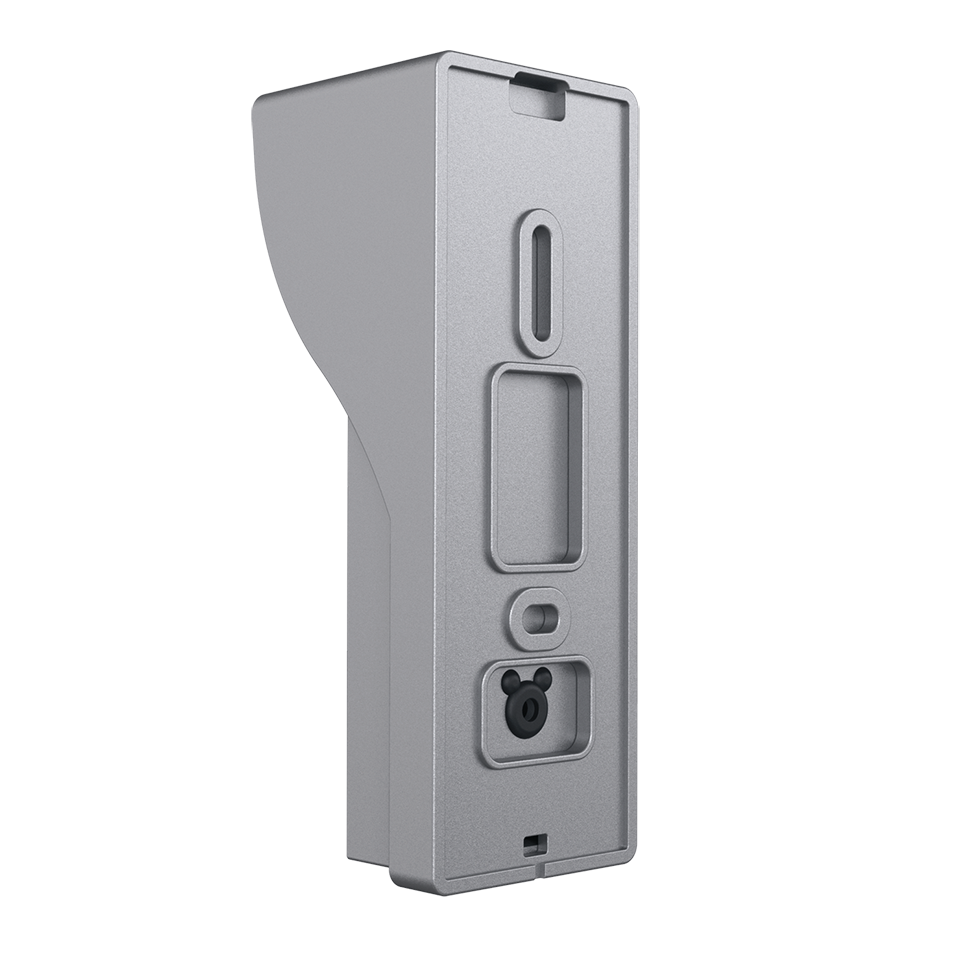

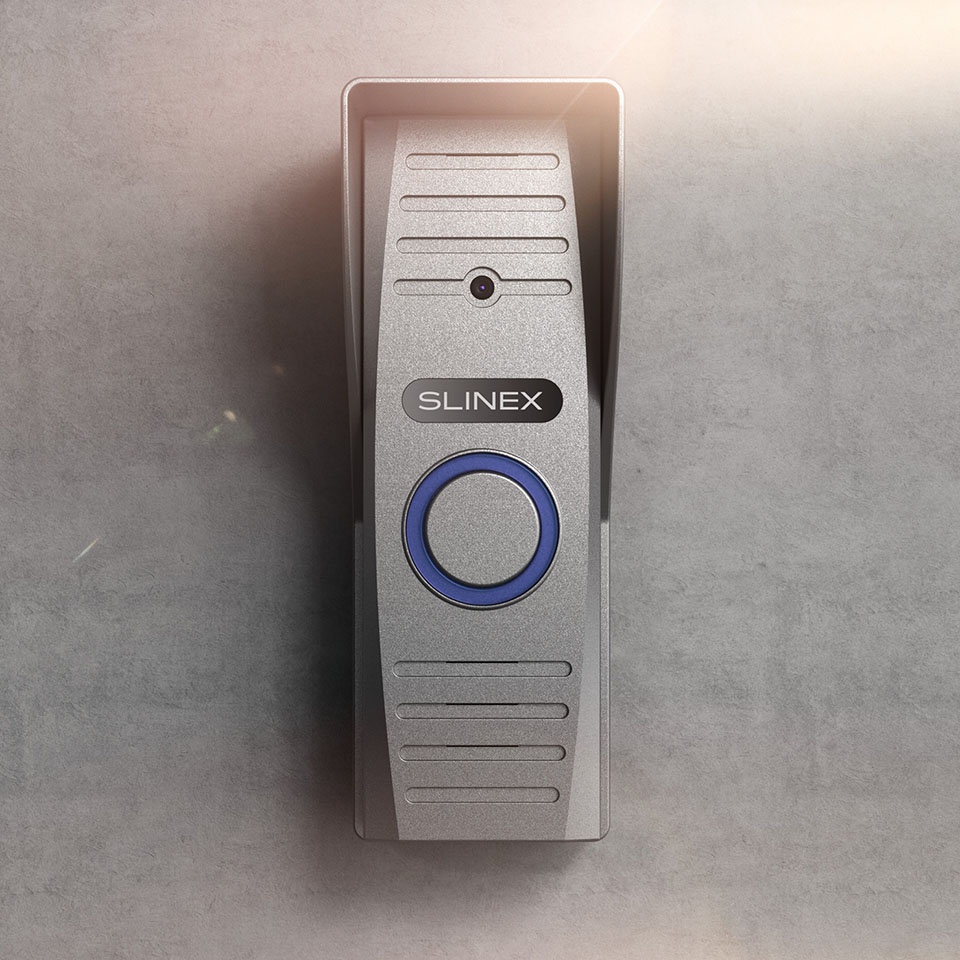

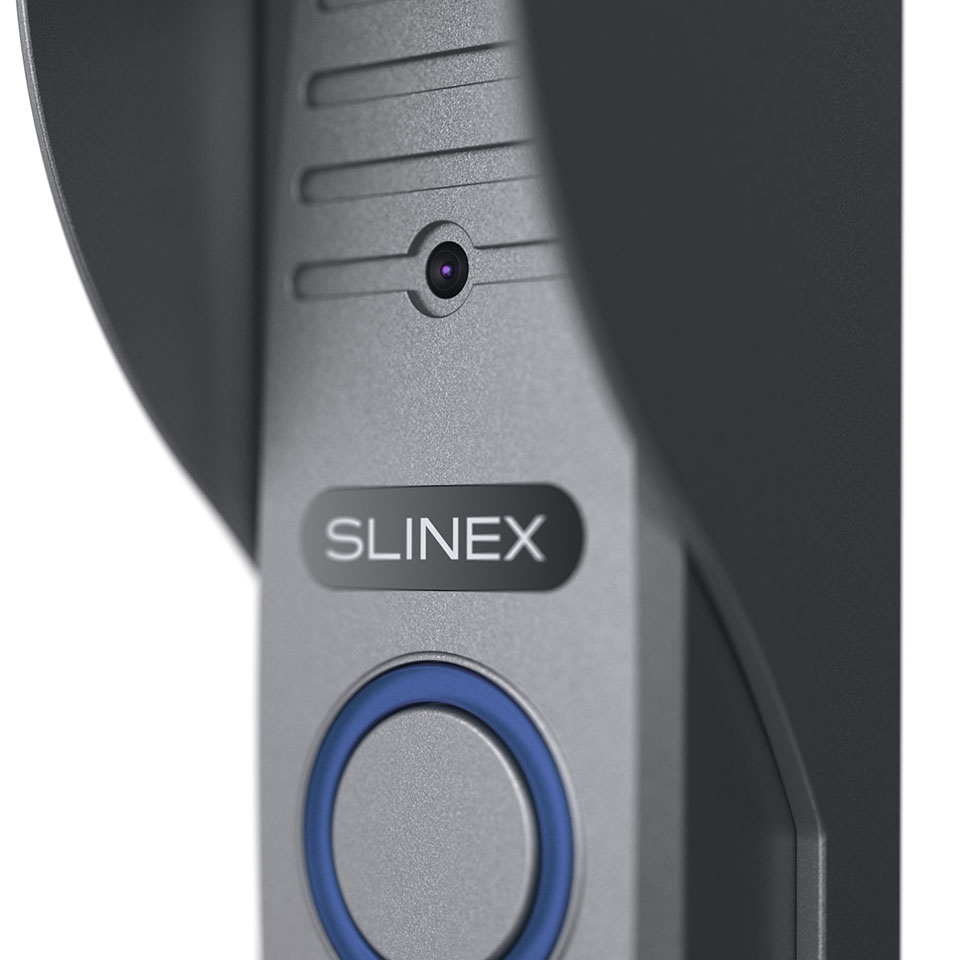

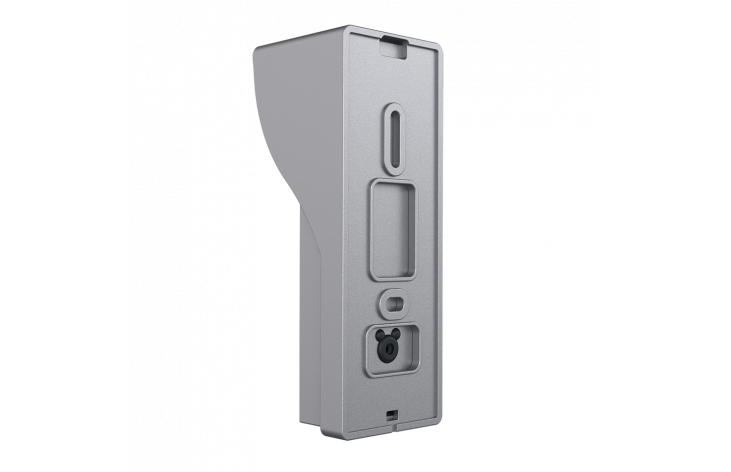

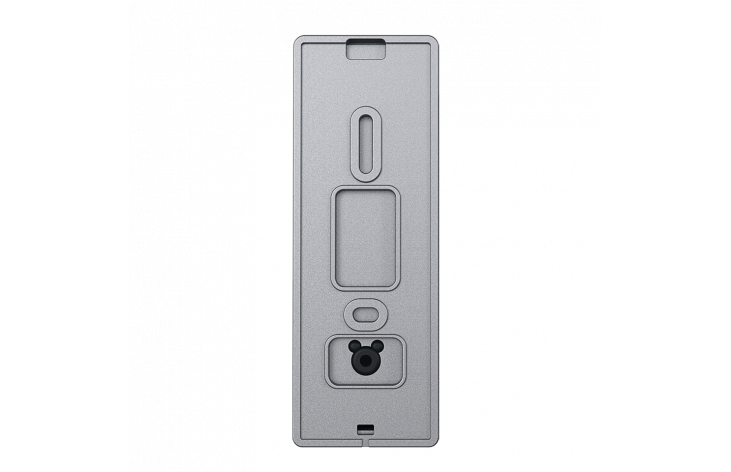

The sleek grey finish complements modern façades, and the AHD camera captures vivid colours and fine detail. A rear selector lets you switch between AHD‑H, AHD‑M and CVBS modes, guaranteeing compatibility with nearly any video‑intercom system.
Horizontal viewing angle
76º
Camera resolution
• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)
Dimensions
54×134×40 mm
Operating temperature
-40 – +65 °С
Characteristics
- Device type
- Individual outdoor panel
- Unique features
- • Versatile camera mode selector (AHD-H, AHD-M, CVBS)
• Mechanical IR cut filter
• Illuminated button
• DVR signal output for motion-triggered recording - Type of sensor
- 1/4” CMOS
- Night backlight
- IR LED, up to 1.5 m
- Minimal illumination
- 0,01 Lux
