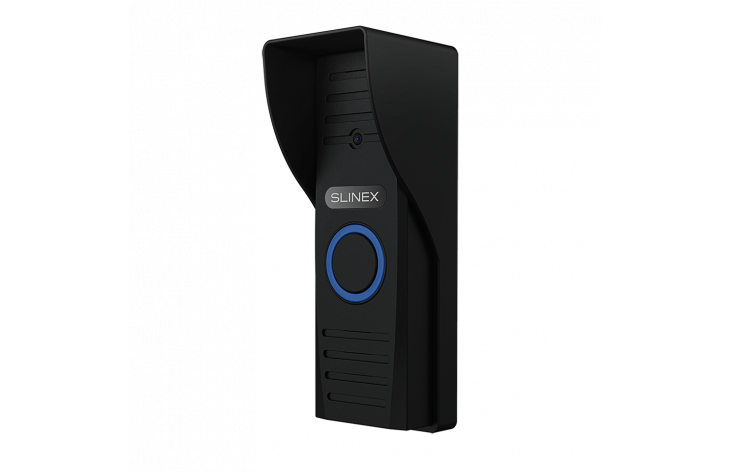

Slinex ML-15HD
Outdoor panel with signal output to a DVR for motion-triggered recording and AHD support
- Resolution 2 MP (AHD) / 1 MP (AHD) / 960 TVL (CVBS)

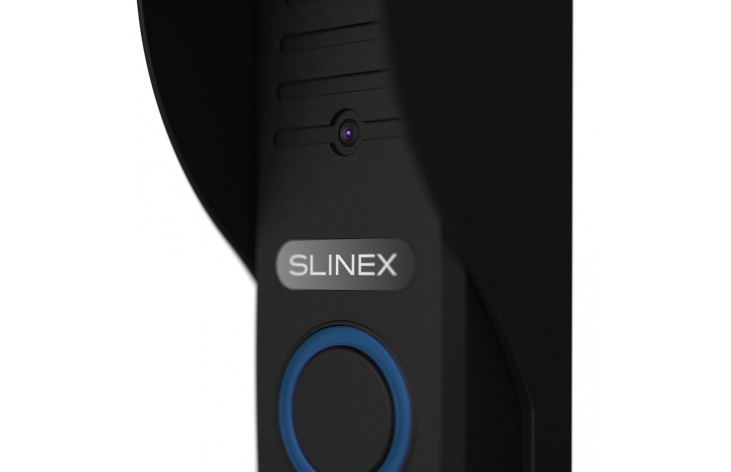

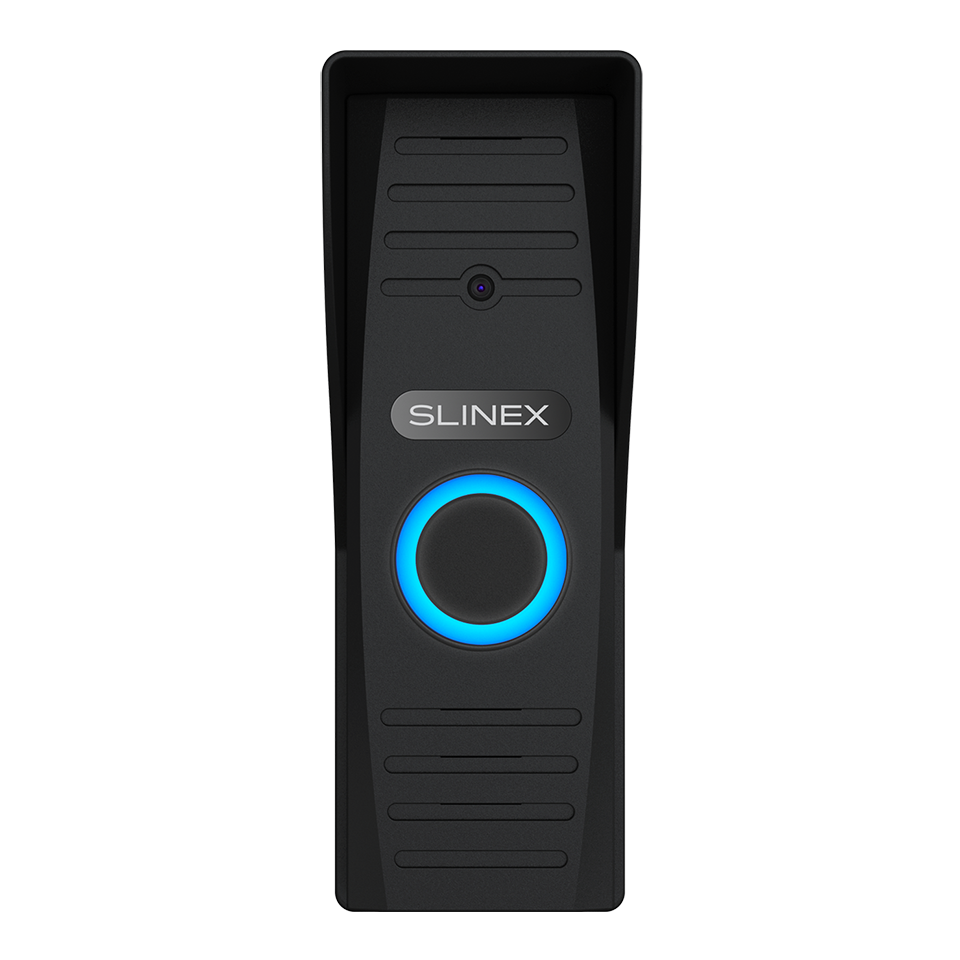

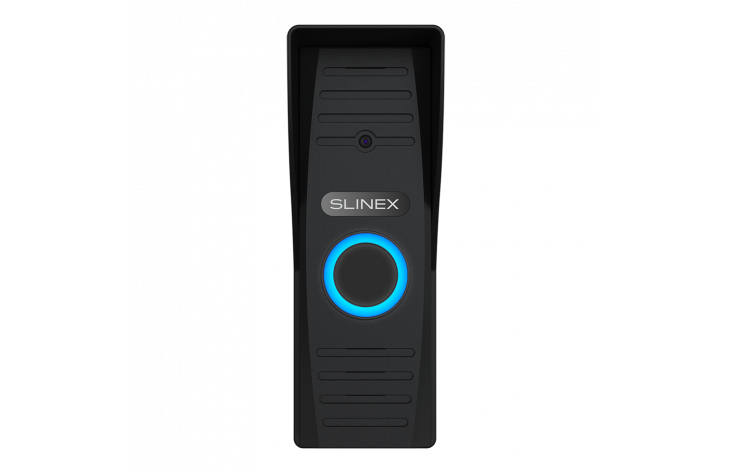

- Illuminated Button
- Mechanical IR Cut Filter
Slinex ML-15HD
Outdoor panel with signal output to a DVR for motion-triggered recording and AHD support
- Resolution 2 MP (AHD) / 1 MP (AHD) / 960 TVL (CVBS)
- Illuminated Button
- Mechanical IR Cut Filter
Description
Introduction
The Slinex ML-15HD is a state-of-the-art outdoor panel crafted for individual subscriber use. It integrates a 2 MP camera equipped with a color CMOS sensor that supports the AHD format, ensuring seamless, high-definition video streaming with minimal delay.
Where it can be used

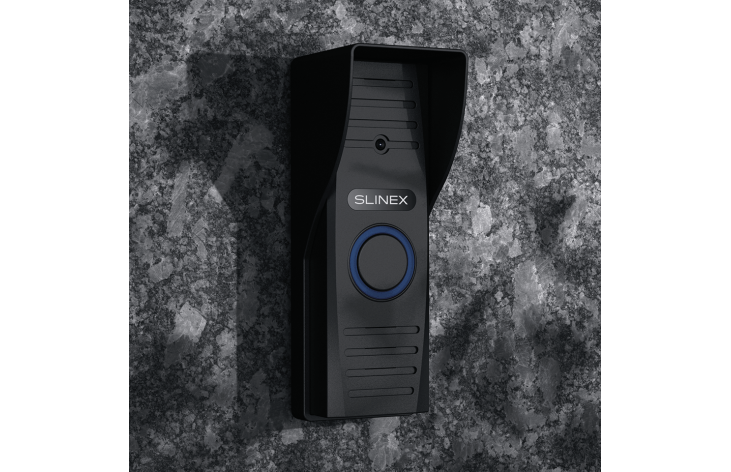

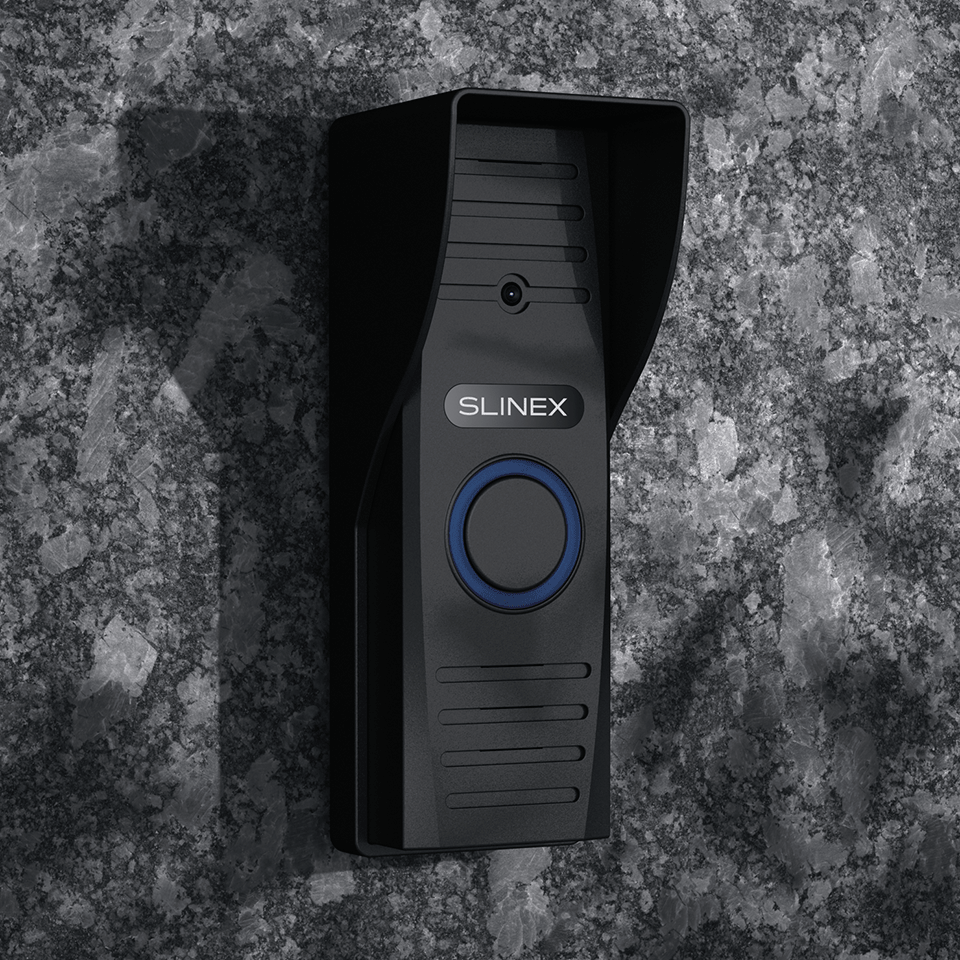

This adaptable panel is engineered for both indoor and outdoor applications, making it a perfect fit for a variety of structures. Whether installed at an office entrance, in a corridor, or at a residential door, the ML-15HD is well-suited for single-subscriber systems.
The panel features
One standout feature of the ML-15HD is its dedicated power supply for the integrated camera. This feature facilitates easy connection to DVR systems or video intercoms with recording capabilities. Additionally, infrared backlighting supports clear night vision, while the illuminated button remains visible in low-light conditions.

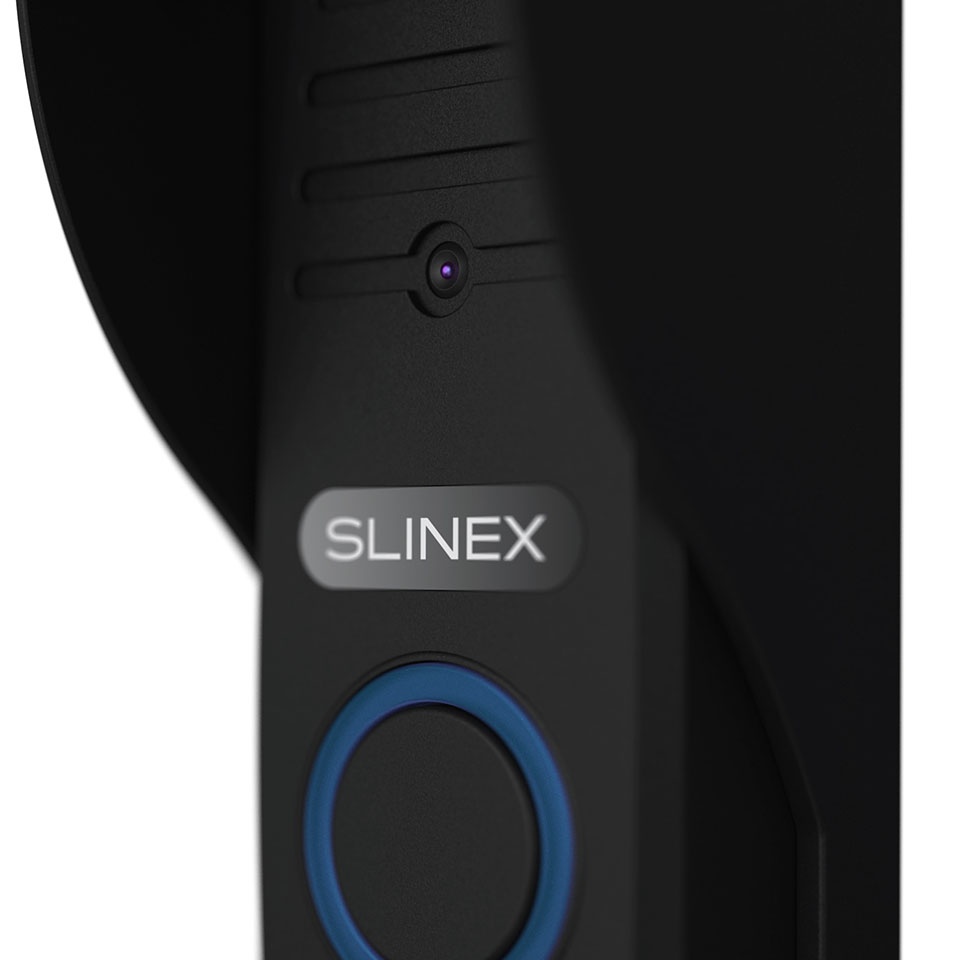

Appearance and camera

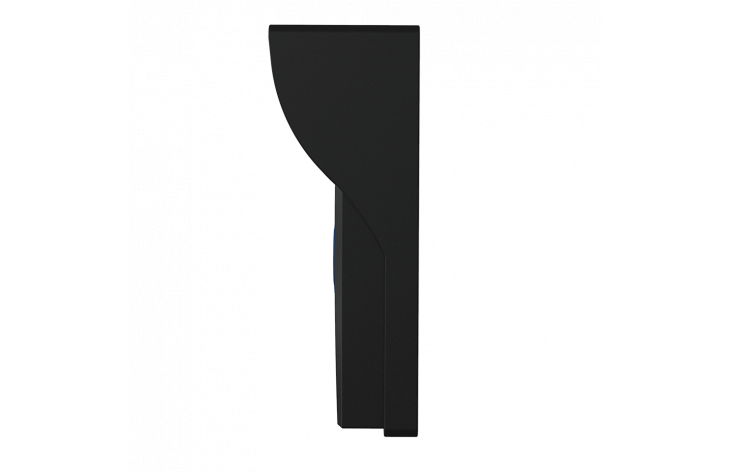

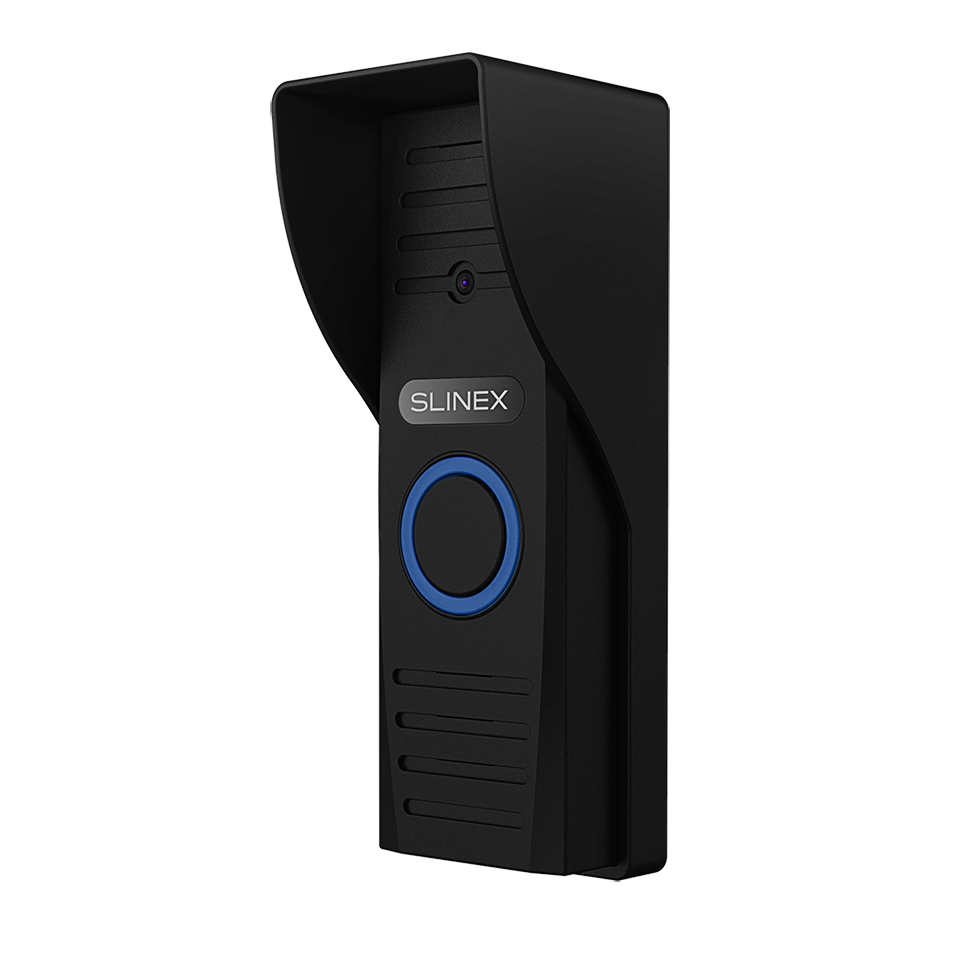

Constructed with a robust metal alloy, the ML-15HD boasts a vandal-resistant design and an IP65 rating, which confirms its resilience against dust and moisture. It operates reliably across a temperature range of -40°C to +65°C, making it ideal for varied environmental conditions.
Available in two modern color options, the panel is designed to complement contemporary exteriors. Its AHD-enabled camera delivers images with impressive color accuracy and fine detail, making it a strong option for high-quality video communication. Moreover, the inclusion of a camera mode switcher (AHD-H, AHD-M, CVBS) ensures compatibility with the majority of video intercom systems.
Horizontal viewing angle
76º
Camera resolution
• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)
Dimensions
54×134×40 mm
Operating temperature
-40 – +65 °С
Characteristics
- Device type
- Individual outdoor panel
- Unique features
- • Versatile camera mode selector (AHD-H, AHD-M, CVBS)
• Mechanical IR cut filter
• Illuminated button
• DVR signal output for motion-triggered recording - Type of sensor
- 1/4” CMOS
- Night backlight
- IR LED, up to 1.5 m
- Minimal illumination
- 0,01 Lux
