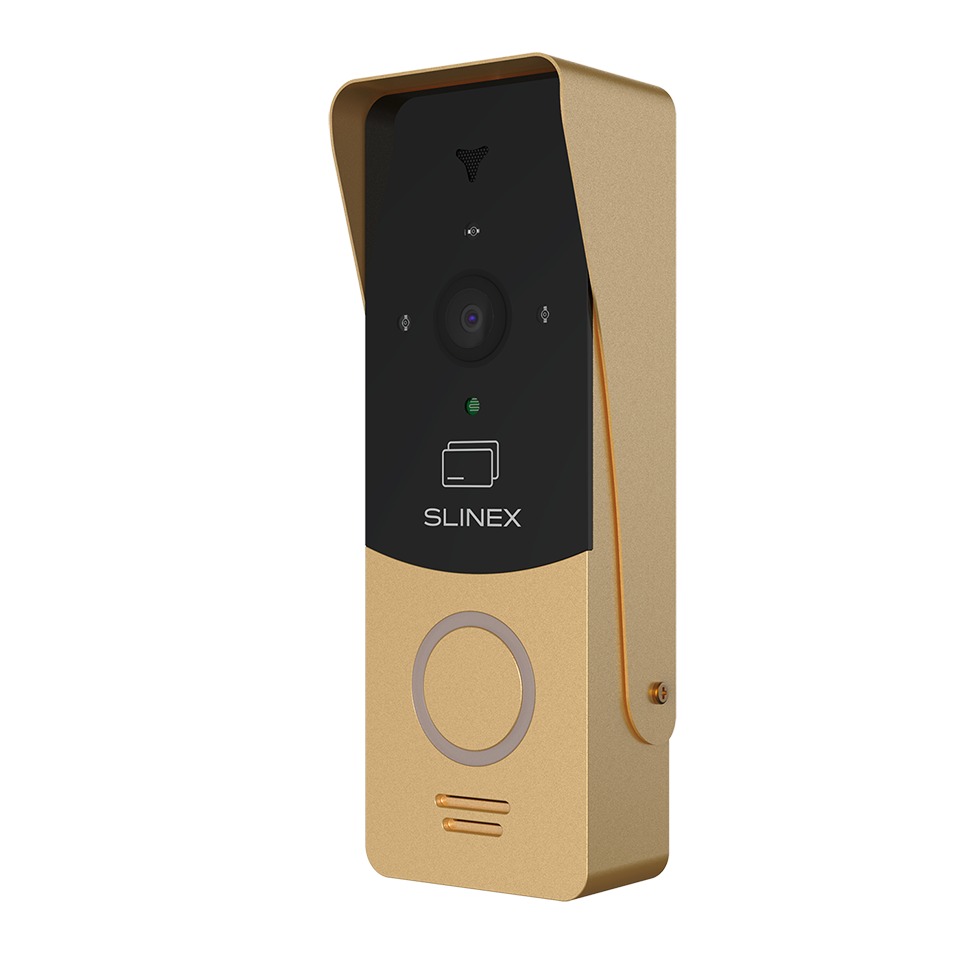

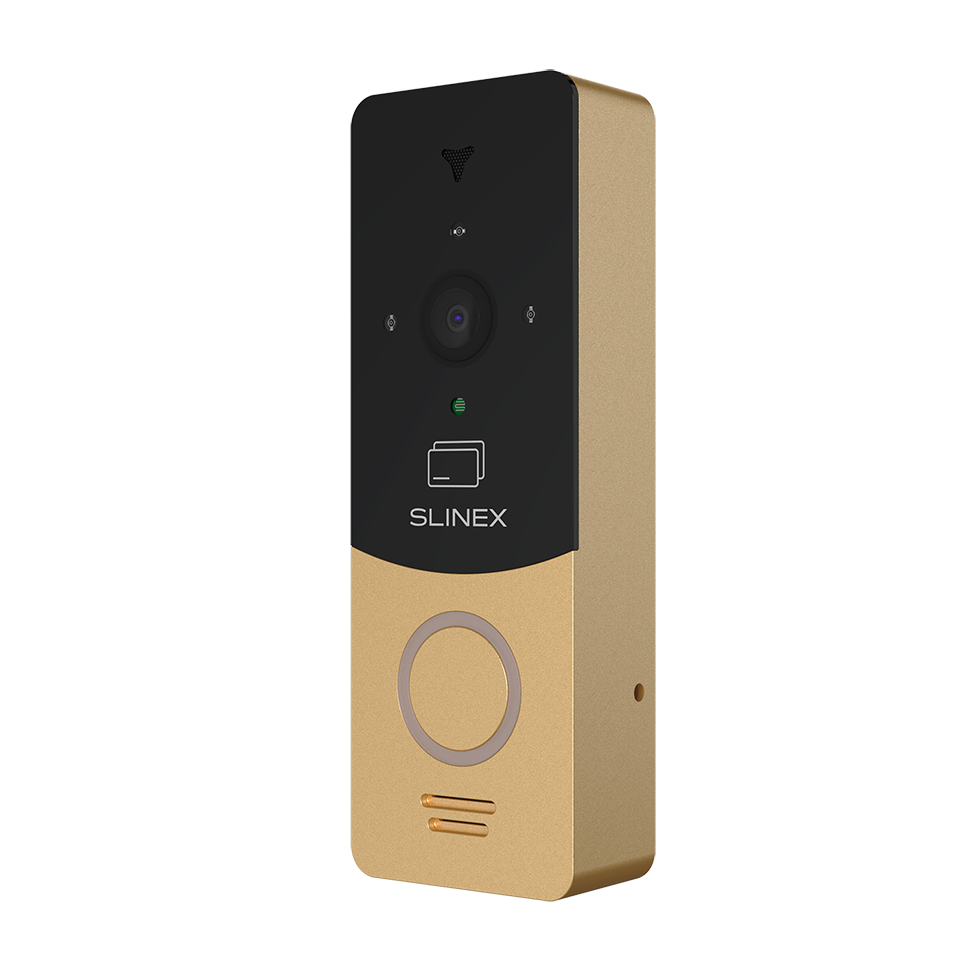

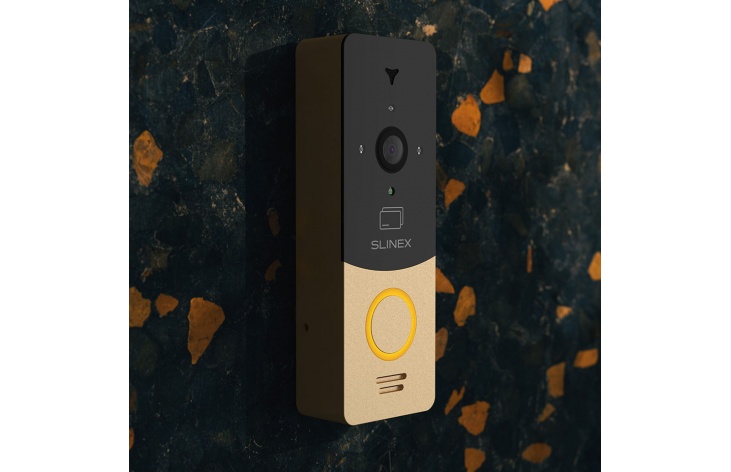

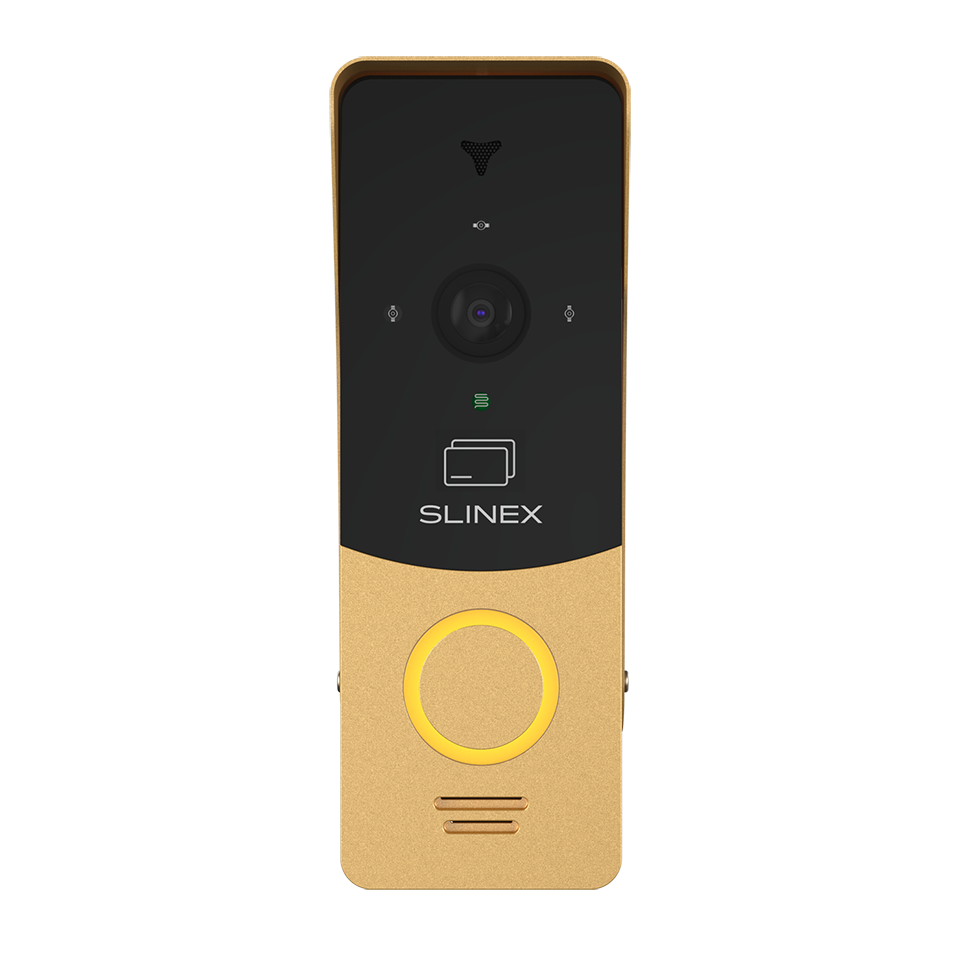

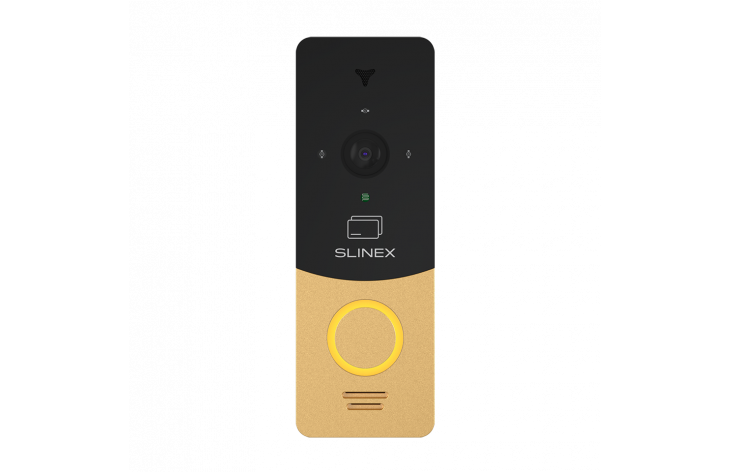

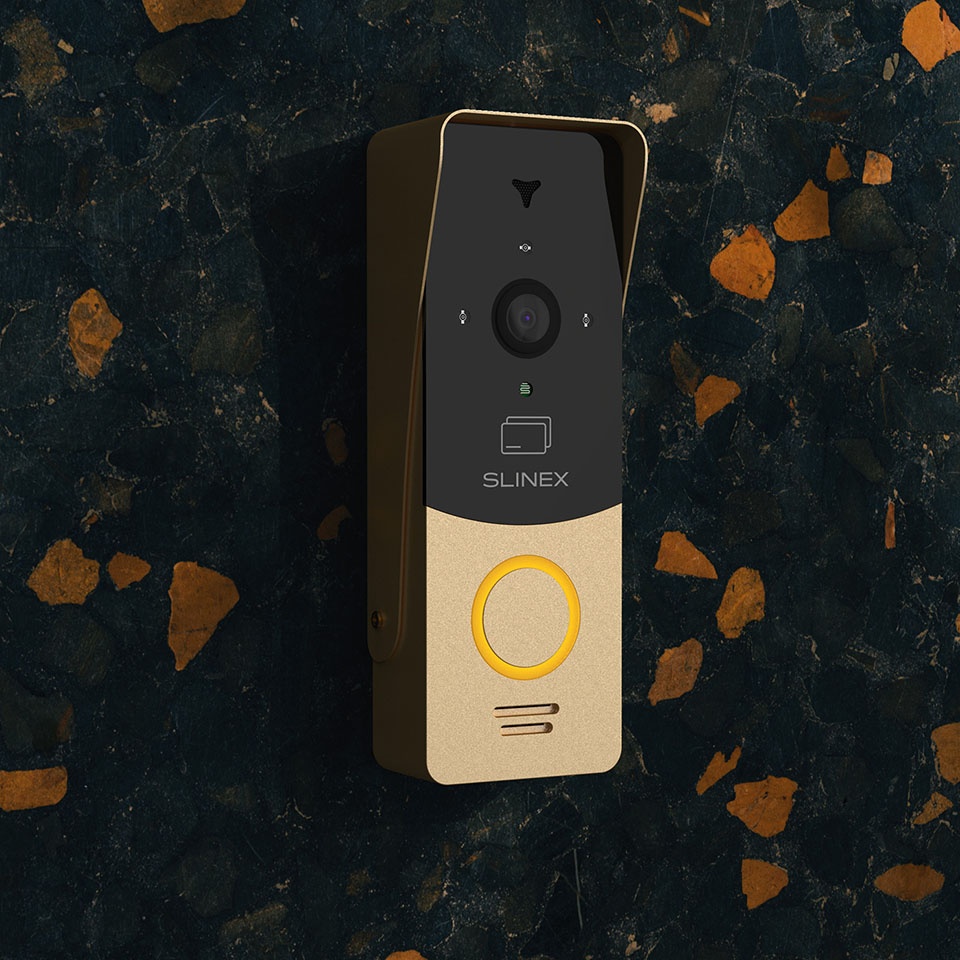

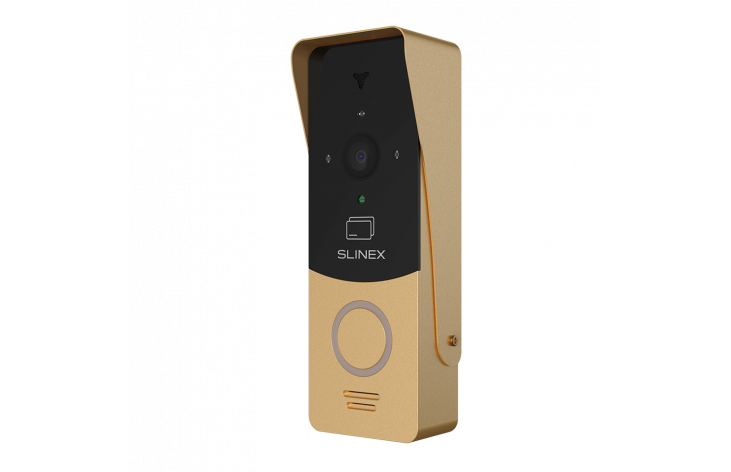

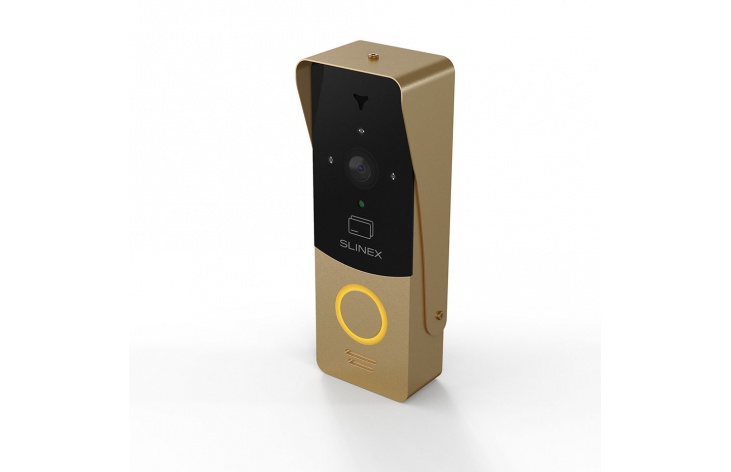

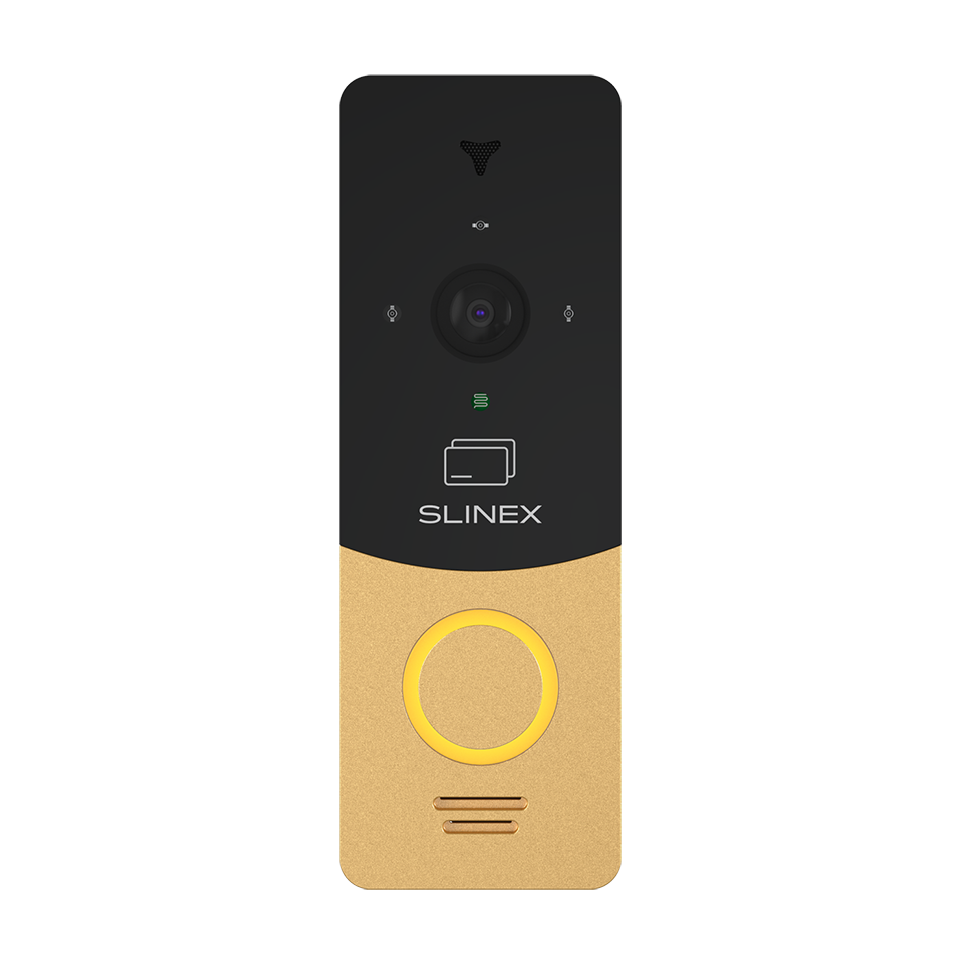

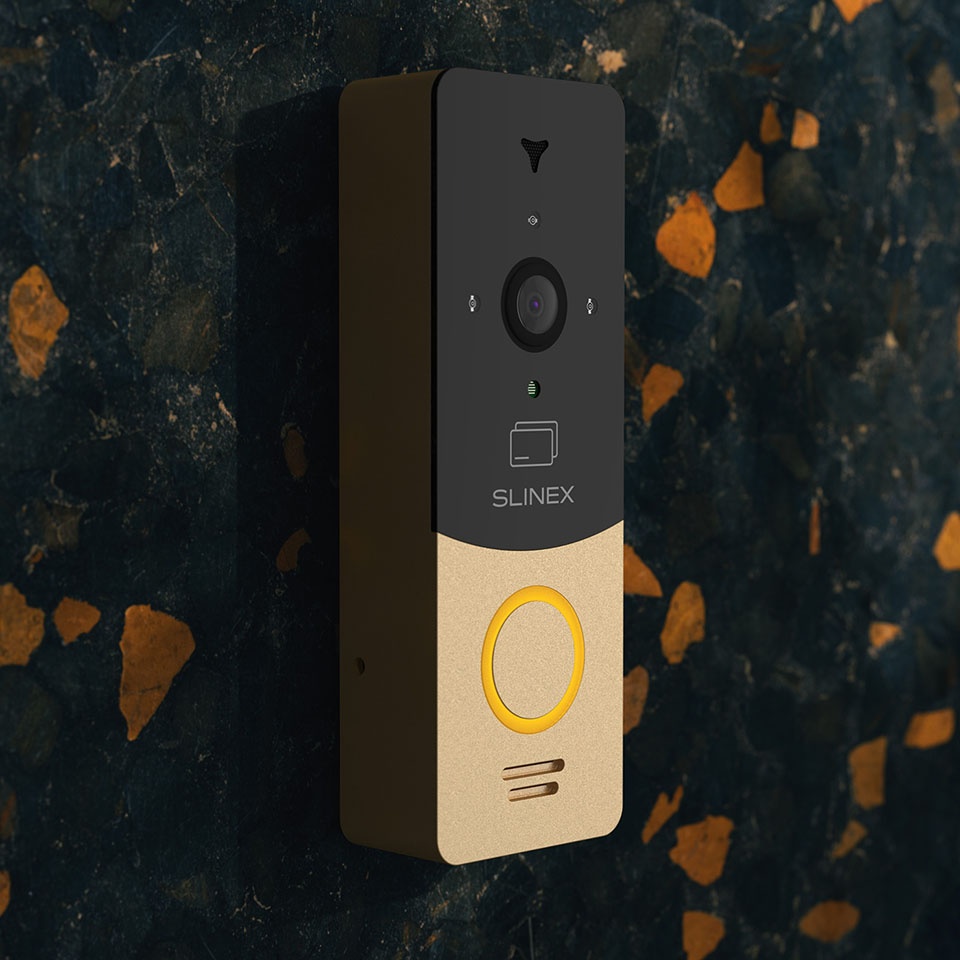

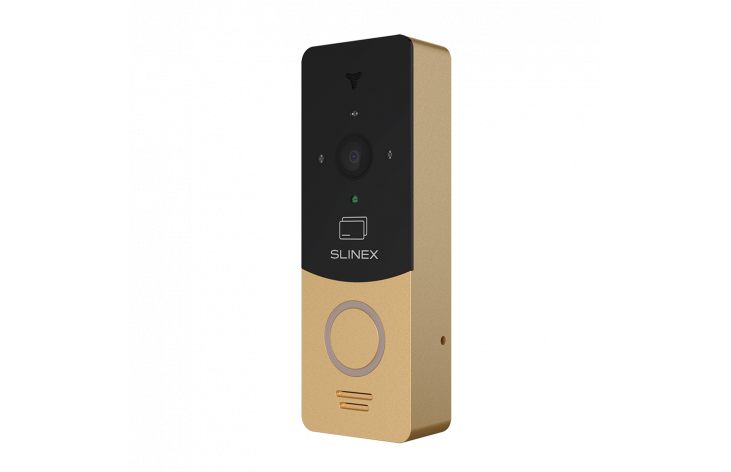

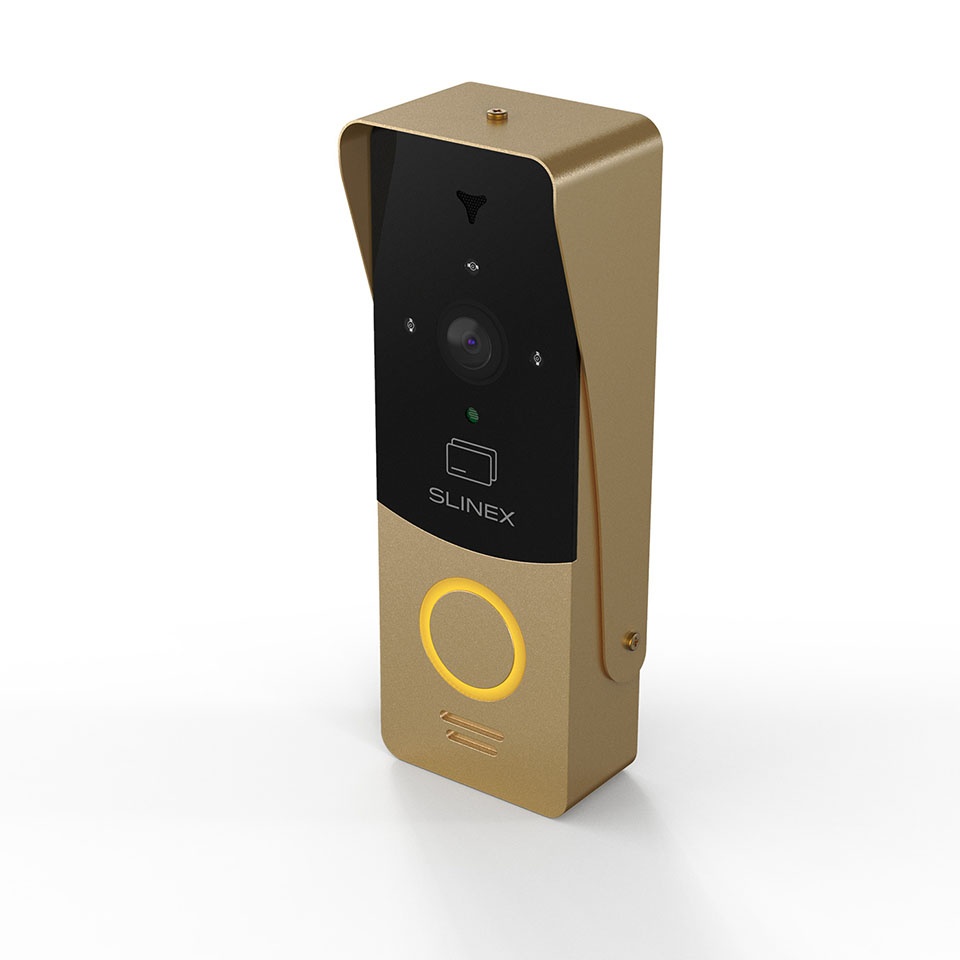

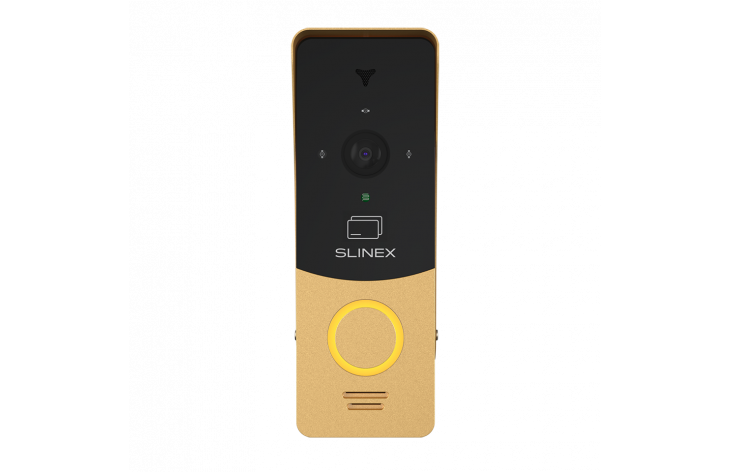

Slinex ML-20CRHD
Individual outdoor panel featuring wide-angle camera, AHD/CVBS compatibility, and EM-Marin wireless ID card reader
- Illuminated call button
- Camera Resolution: 2 Mp AHD / 1 Mp AHD / 960 TVL CVBS
- EM-Marin card reader
Colors
Slinex ML-20CRHD
Individual outdoor panel featuring wide-angle camera, AHD/CVBS compatibility, and EM-Marin wireless ID card reader
- Illuminated call button
- Camera Resolution: 2 Mp AHD / 1 Mp AHD / 960 TVL CVBS
- EM-Marin card reader
Colors
Description
Introduction
Meet the ML-20CRHD: an advanced outdoor panel that combines modern design with high-level functionality. Equipped with a 2-megapixel high-definition camera and an integrated EM-Marin card reader, this panel simplifies secure access control. Compatible with any analog intercom, the ML-20CRHD ensures reliable entry management for authorized users.
Proximity Card Reader
The ML-20CRHD features an EM-Marin proximity card reader capable of securely storing up to 248 individual card identifiers. This functionality makes granting controlled access to authorized personnel both secure and straightforward.
Camera Specifications
The outdoor panel includes a 2-megapixel AHD camera providing an impressive 115° wide-angle view. This ensures clear, detailed Full HD images and videos, capturing every essential detail. With a mechanical IR illuminator, the ML-20CRHD provides excellent nighttime visibility.
Features

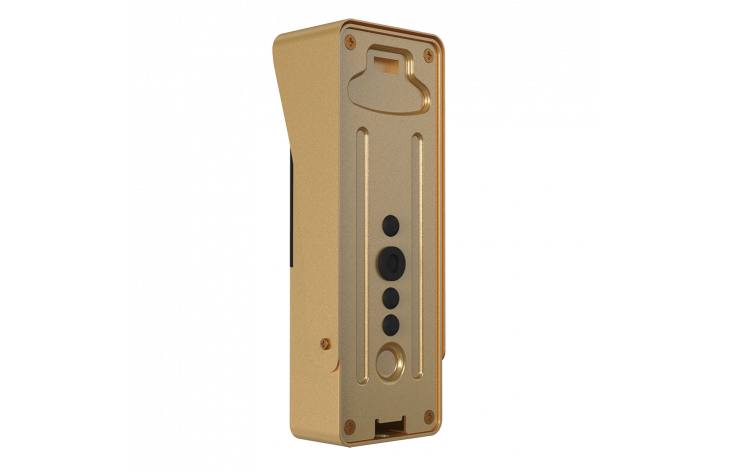

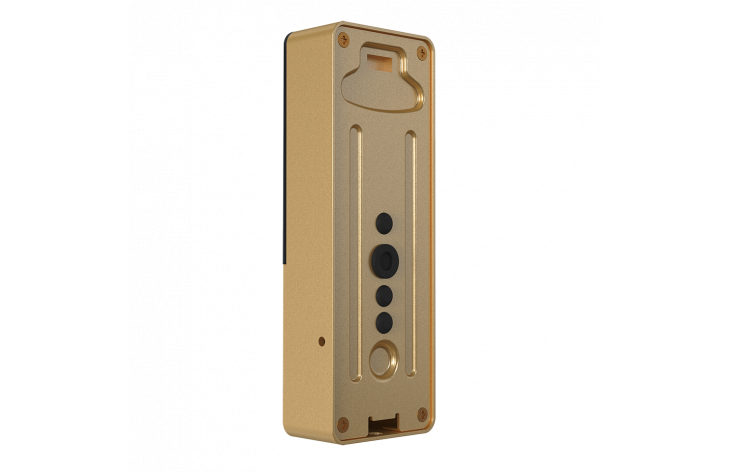

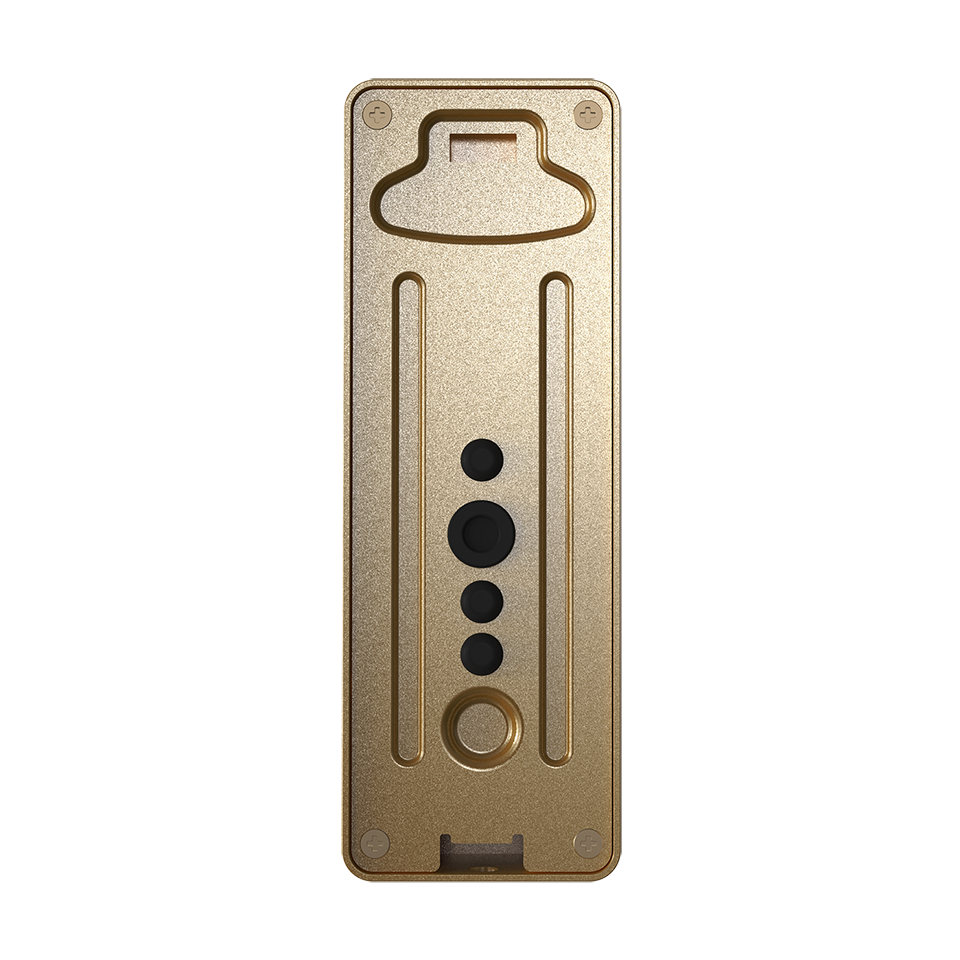

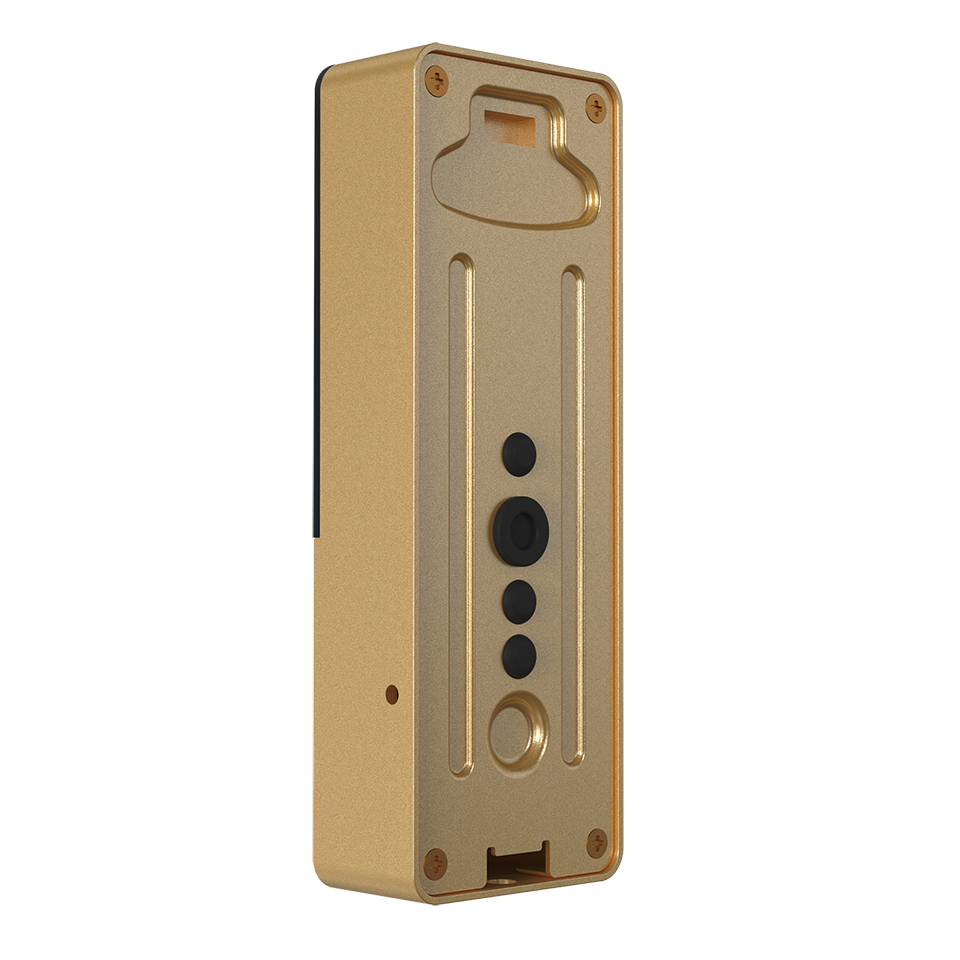

If your existing intercom system doesn’t support AHD video, the ML-20CRHD can simply be switched to CVBS mode using a dedicated rear-panel button. In CVBS mode, the camera supports video resolutions up to 960 TVL. Because it’s compatible with nearly all analog intercom systems, it serves as a versatile, practical solution for a variety of settings.
Slinex ML-20CRHD – providing secure, convenient access for those you trust.
Horizontal viewing angle
115°
Camera resolution
• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)
Dimensions
45×130×24 mm
Operating temperature
-40 – +50 °С
Characteristics
- Unique features
- • Switchable camera operation modes: AHD-H, AHD-M, CVBS
• Mechanical IR-cut filter for optimal nighttime visibility
• Touch-sensitive illuminated call button
• Simple video format switching
• EM-Marin card reader for secure access control - Type of sensor
- 1/4" CMOS
- Night backlight
- IR LED, up to 1.5 m
- Minimal illumination
- 0,01 Lux
- Body structure
- Metal alloy
