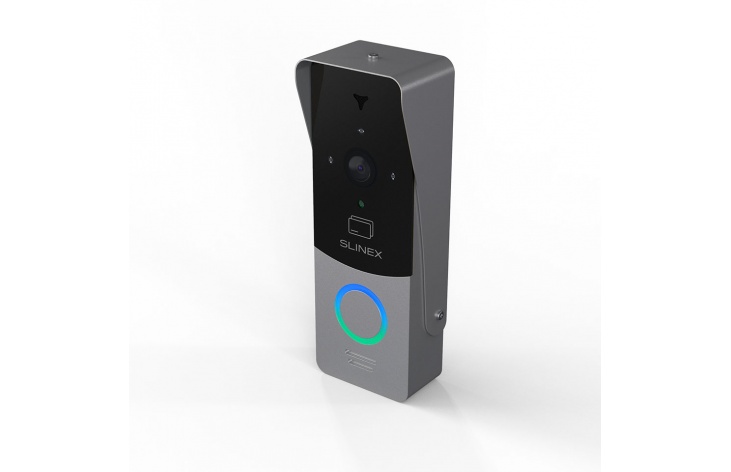

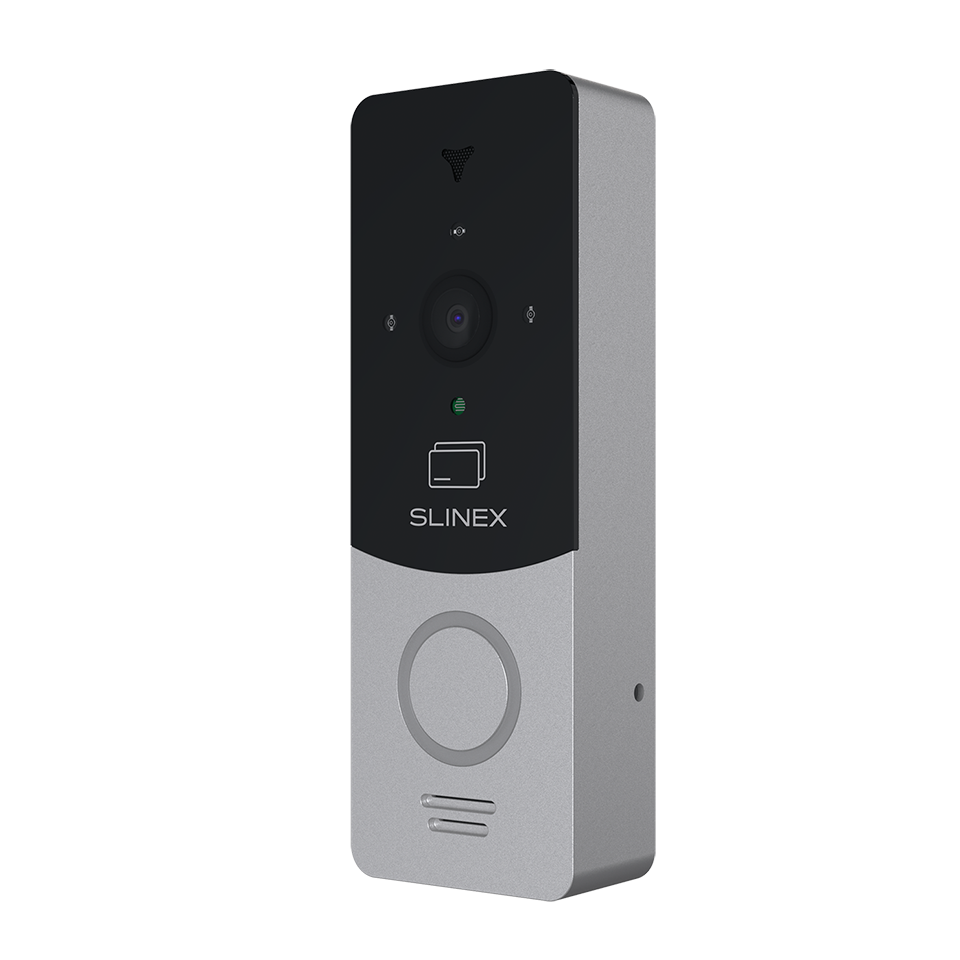

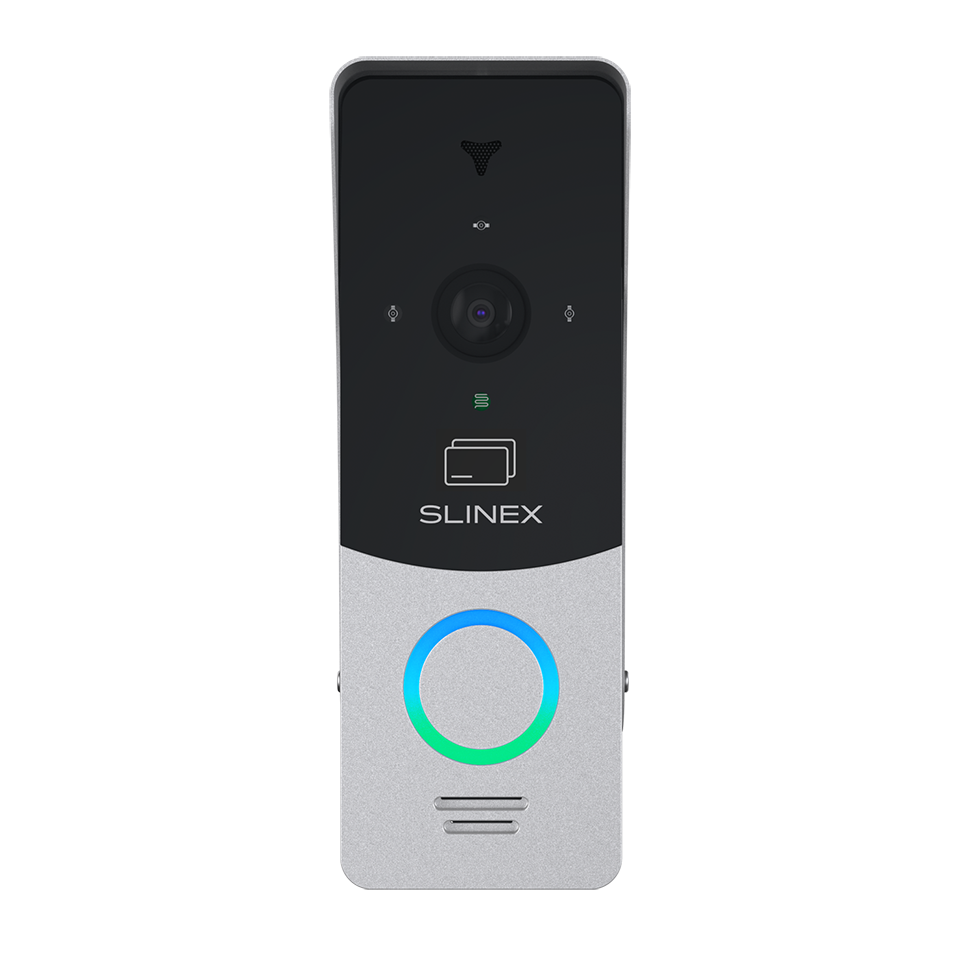

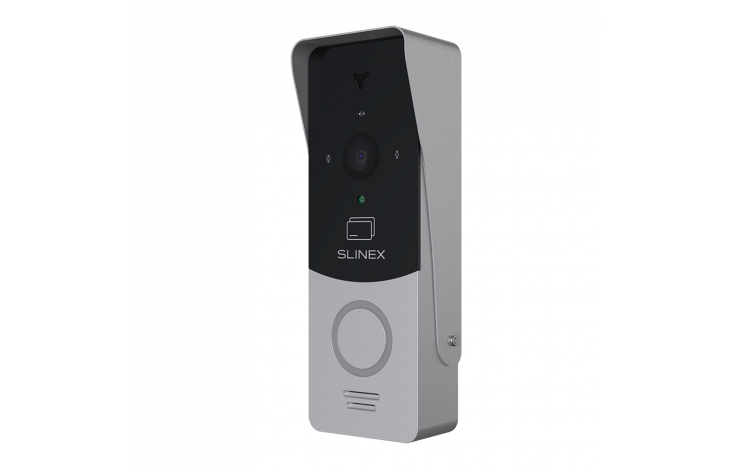

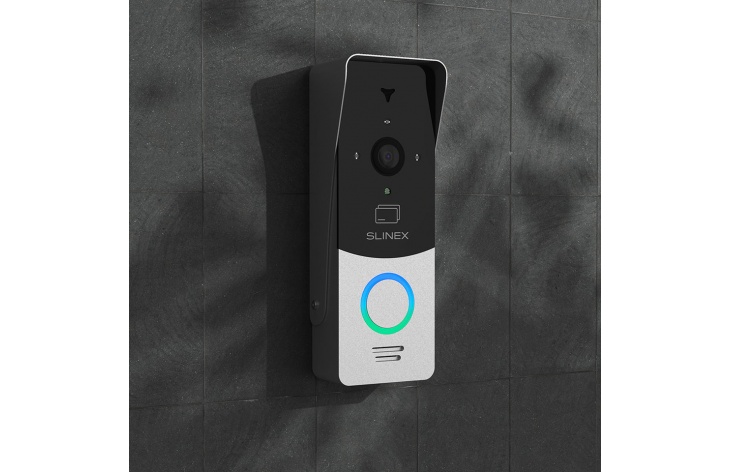

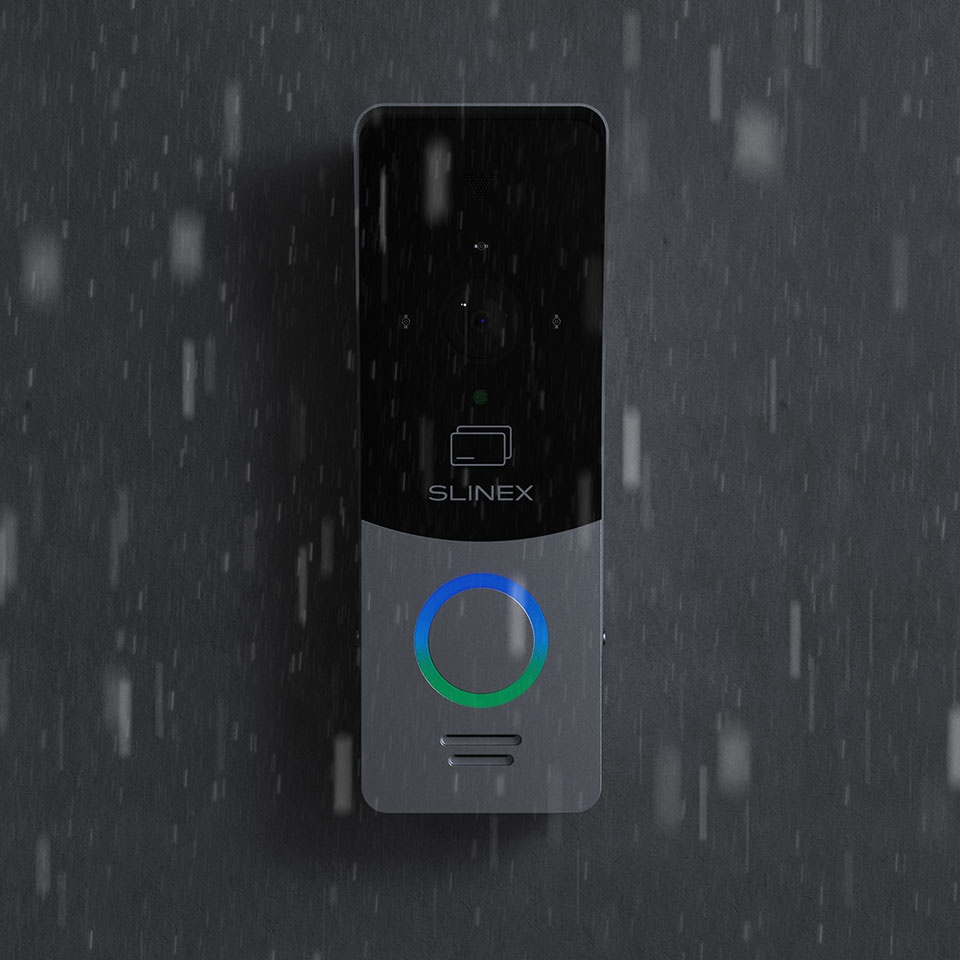

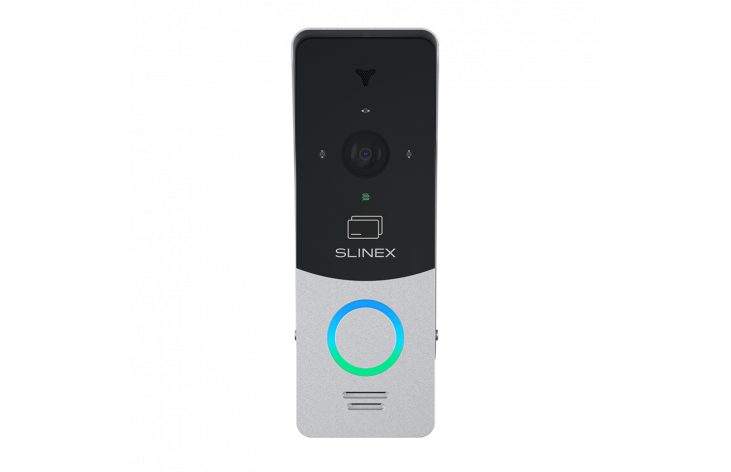

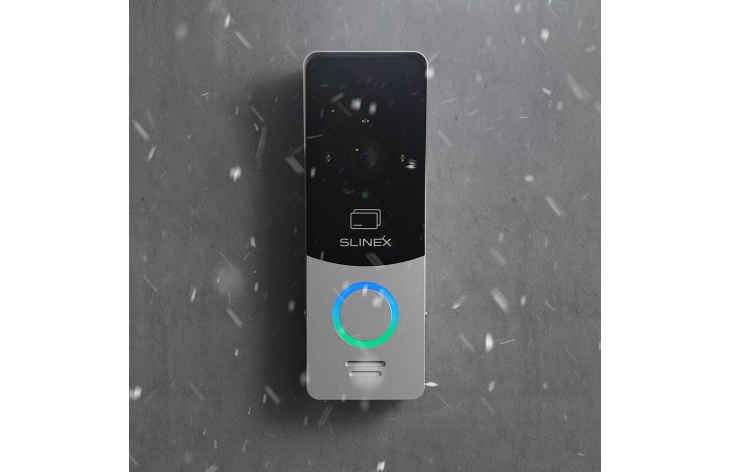

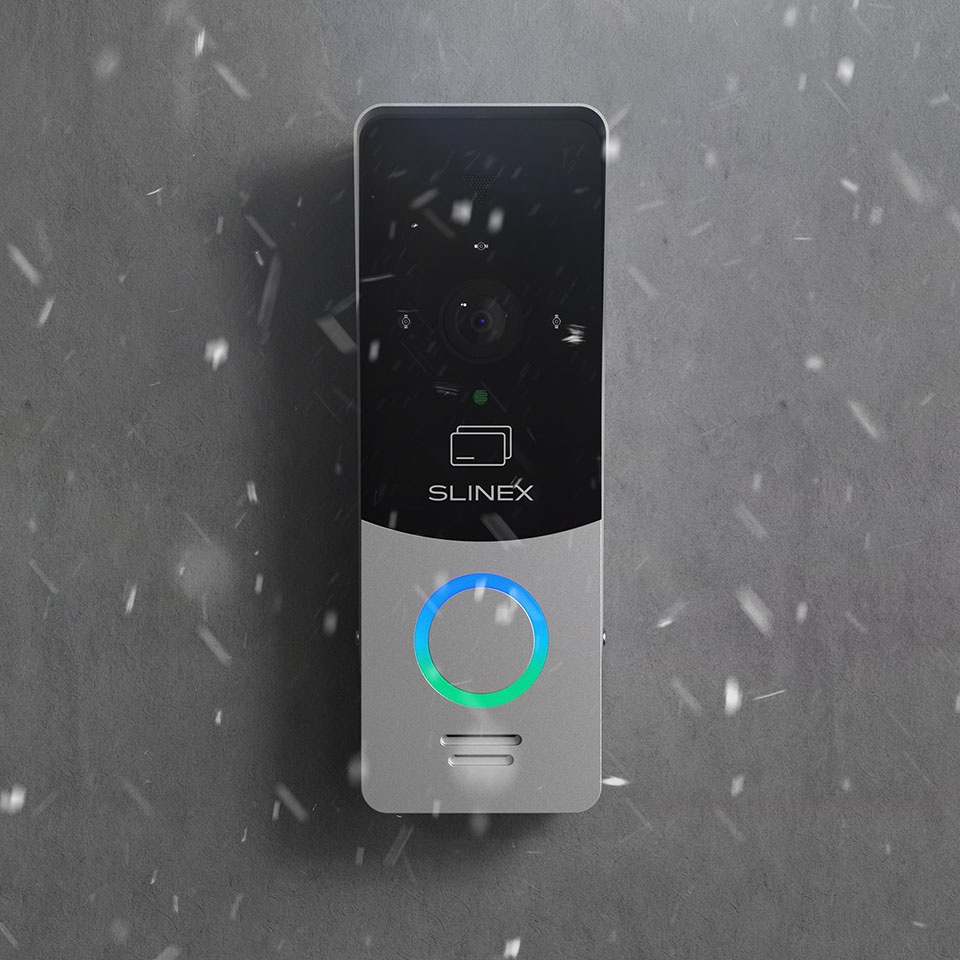

Slinex ML-20CRHD
Individual outdoor panel featuring wide-angle camera, AHD/CVBS compatibility, and EM-Marin wireless ID card reader
- Illuminated call button
- Camera Resolution: 2 Mp AHD / 1 Mp AHD / 960 TVL CVBS
- EM-Marin card reader
Colors
Slinex ML-20CRHD
Individual outdoor panel featuring wide-angle camera, AHD/CVBS compatibility, and EM-Marin wireless ID card reader
- Illuminated call button
- Camera Resolution: 2 Mp AHD / 1 Mp AHD / 960 TVL CVBS
- EM-Marin card reader
Colors
Description
Introduction

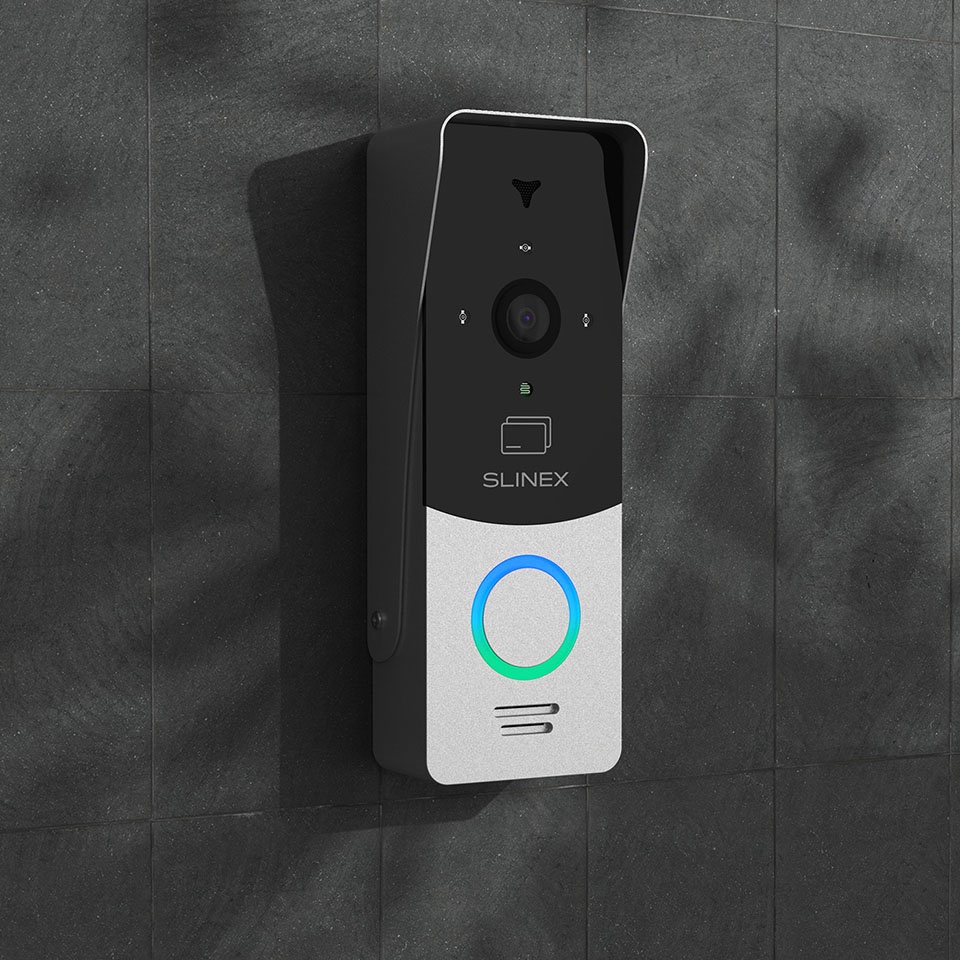

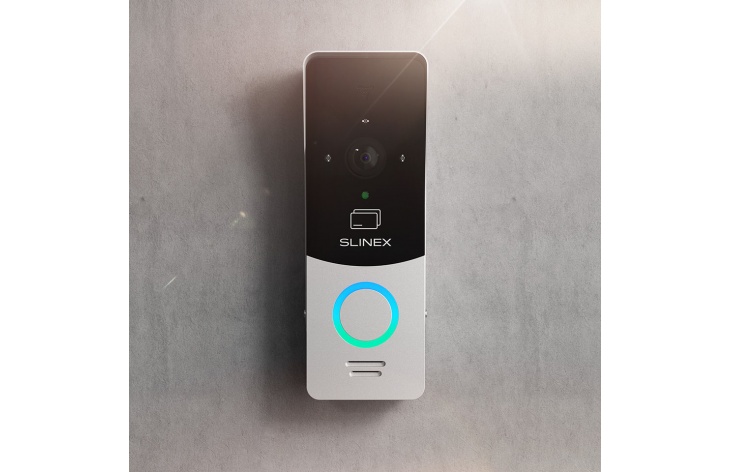

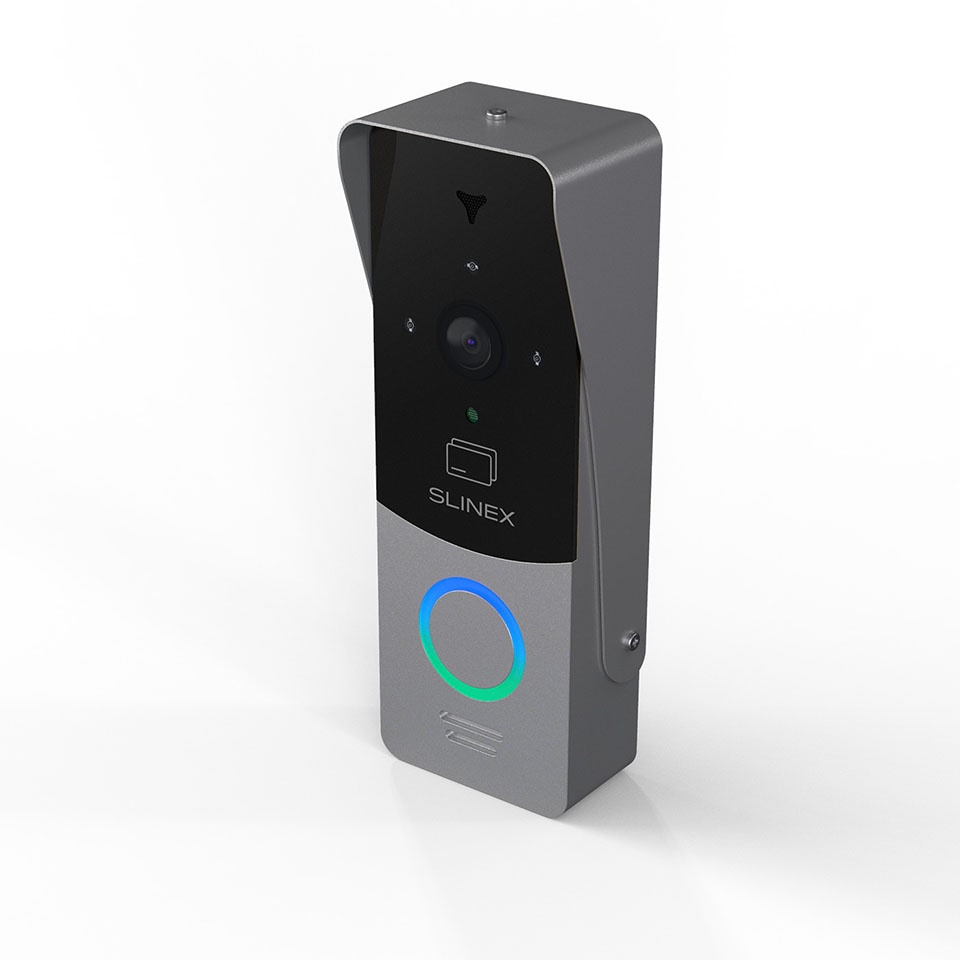

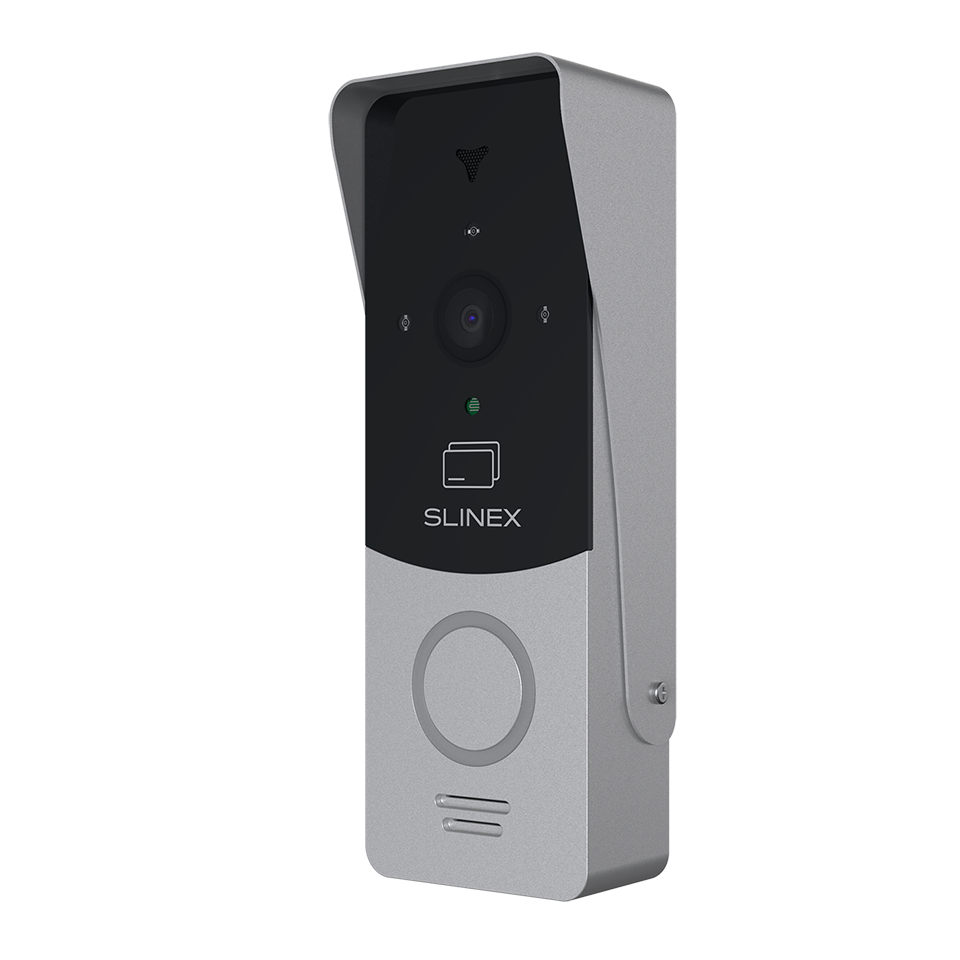

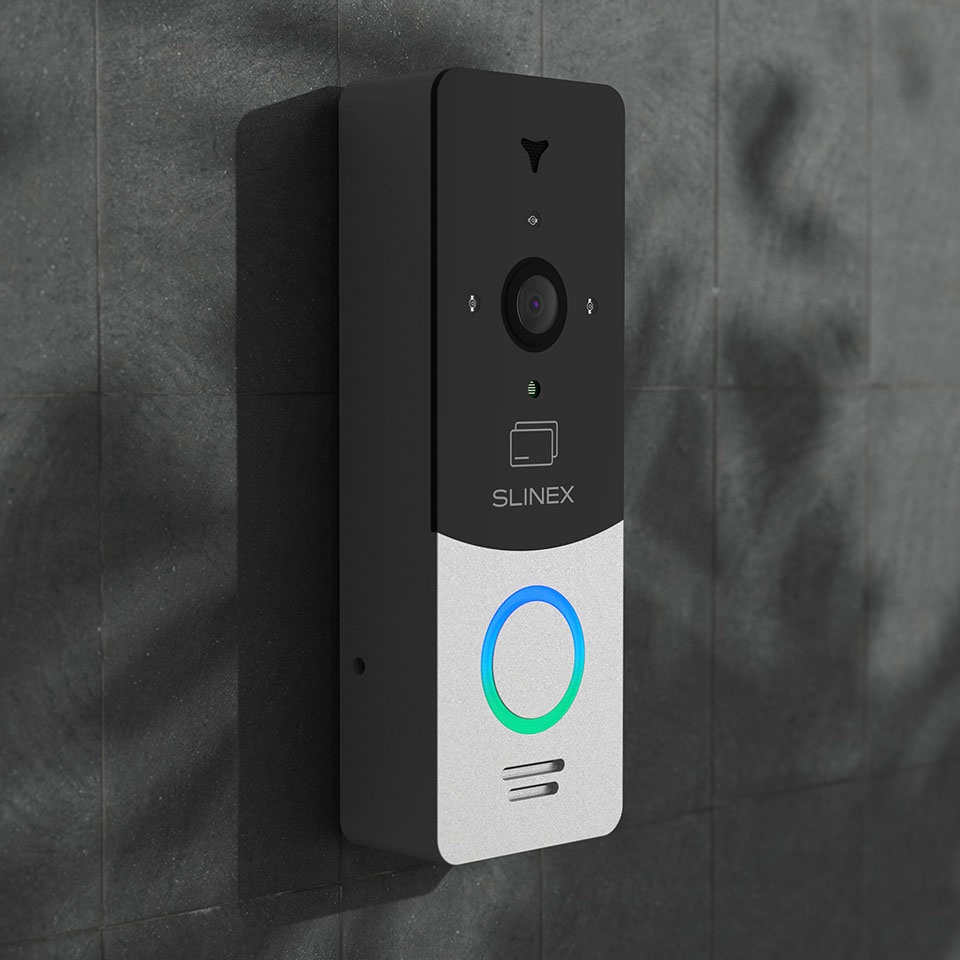

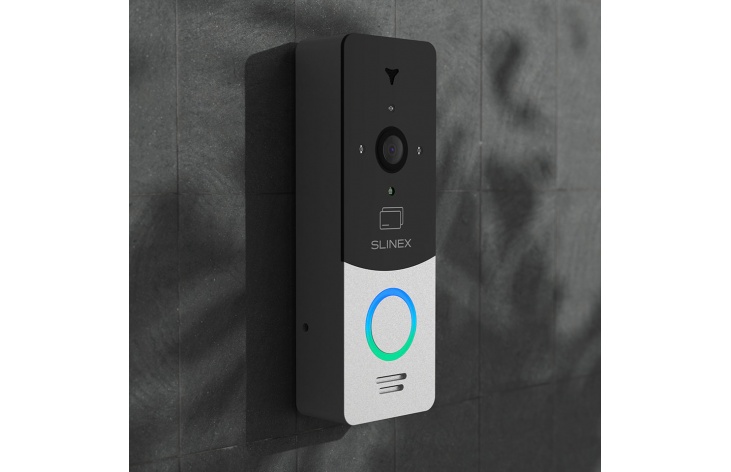

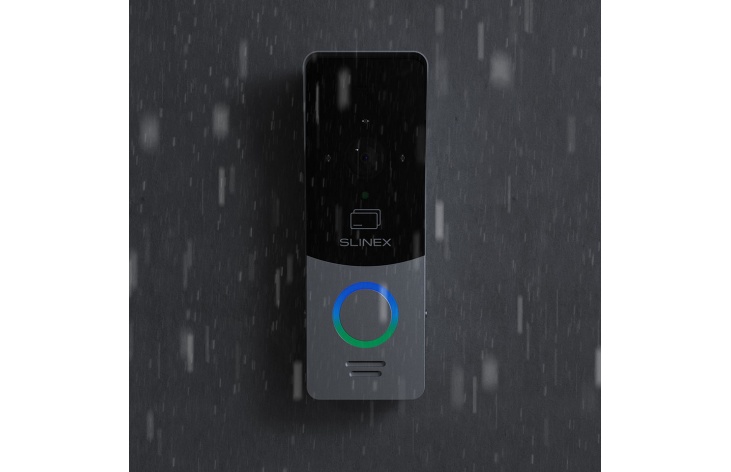

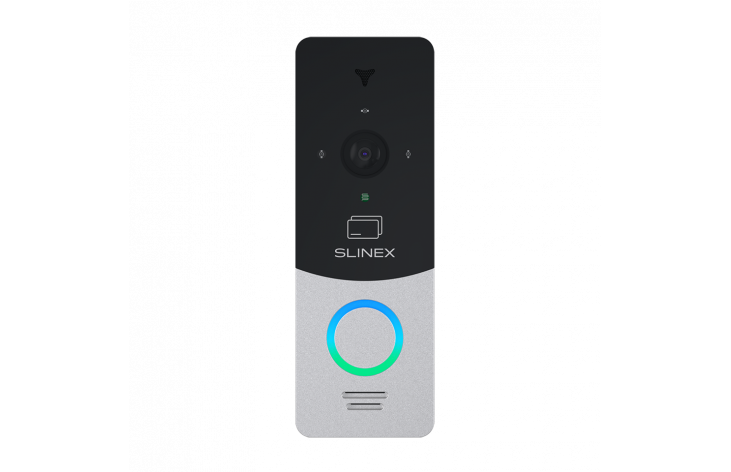

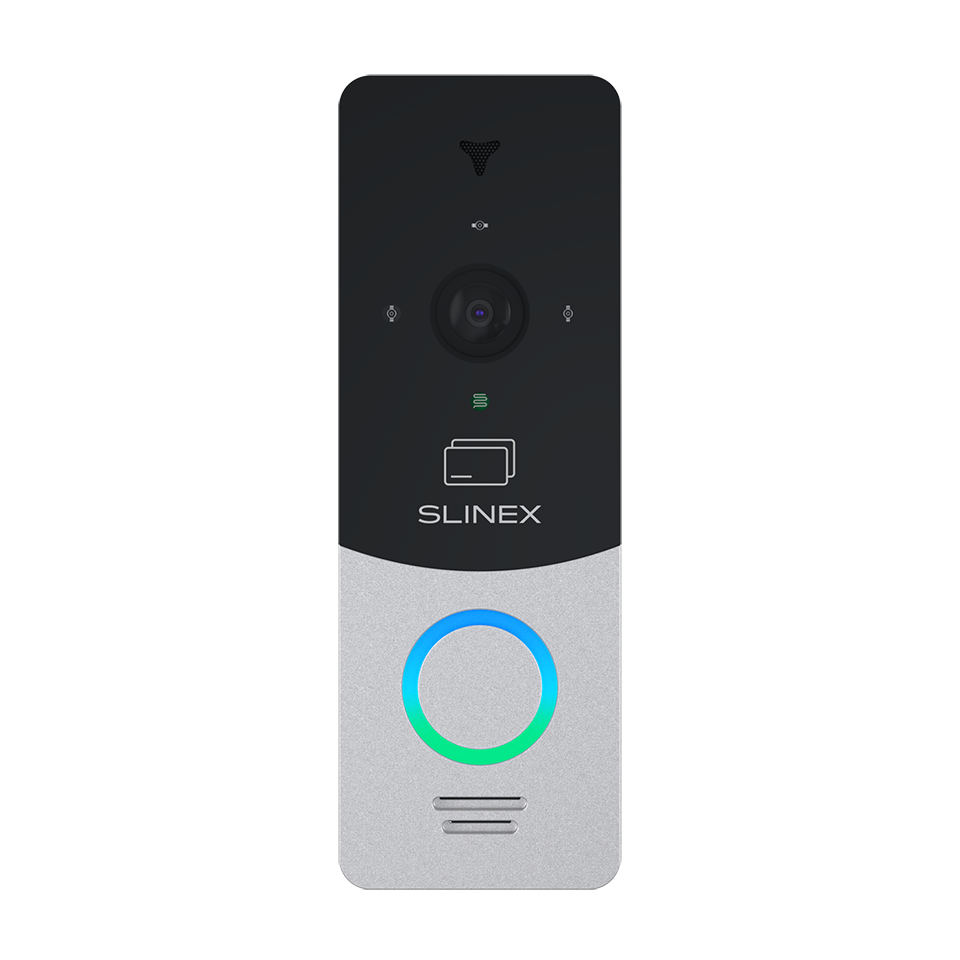

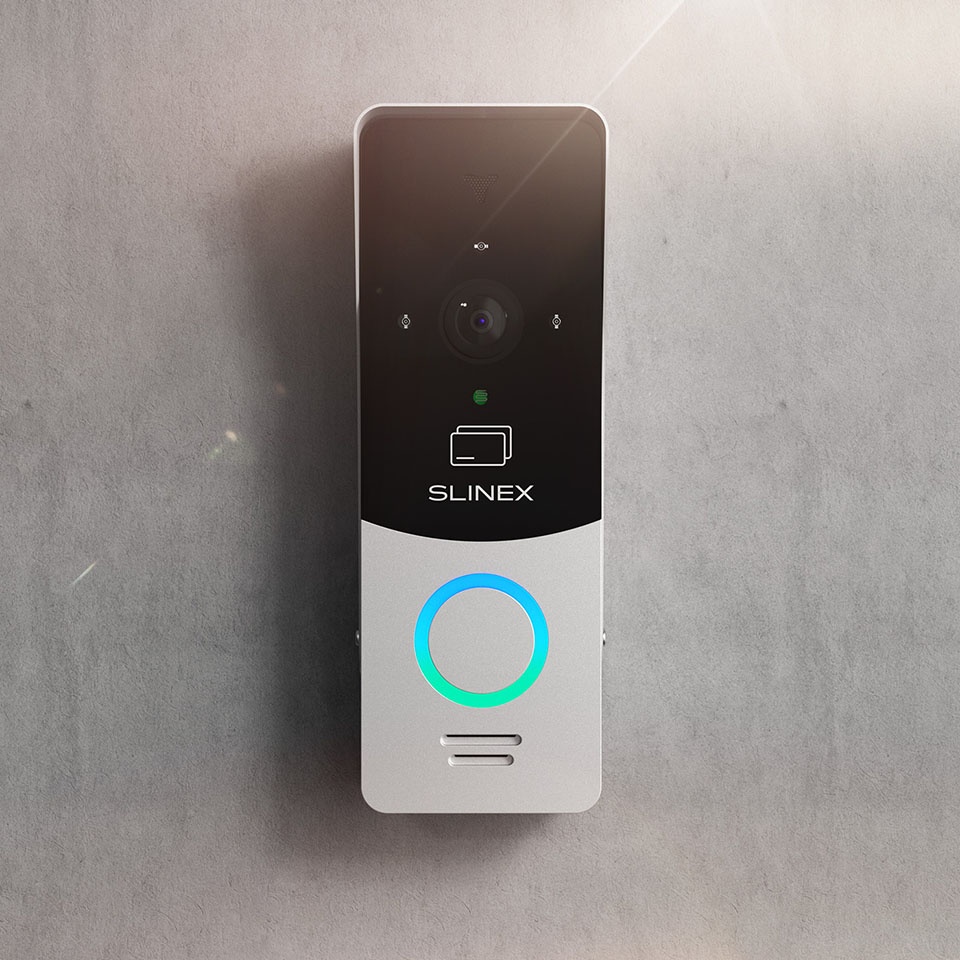

Introducing the ML‑20CRHD in elegant silver and black – a premium outdoor panel that merges contemporary styling with advanced capability. A 2‑megapixel HD camera teams up with a built‑in EM‑Marin reader to streamline secure access. Fully compatible with virtually any analogue intercom, the ML‑20CRHD delivers dependable entry control for authorised users.
Proximity Card Reader
The integrated EM‑Marin reader stores up to 248 unique card IDs, making it easy to grant or revoke access while maintaining a high level of security.
Camera Specifications
A 2‑megapixel AHD camera offers a broad 115° viewing angle, capturing crisp Full‑HD footage in vivid detail. A mechanical IR illuminator guarantees clear night‑time images, so you see visitors clearly at any hour.
Features

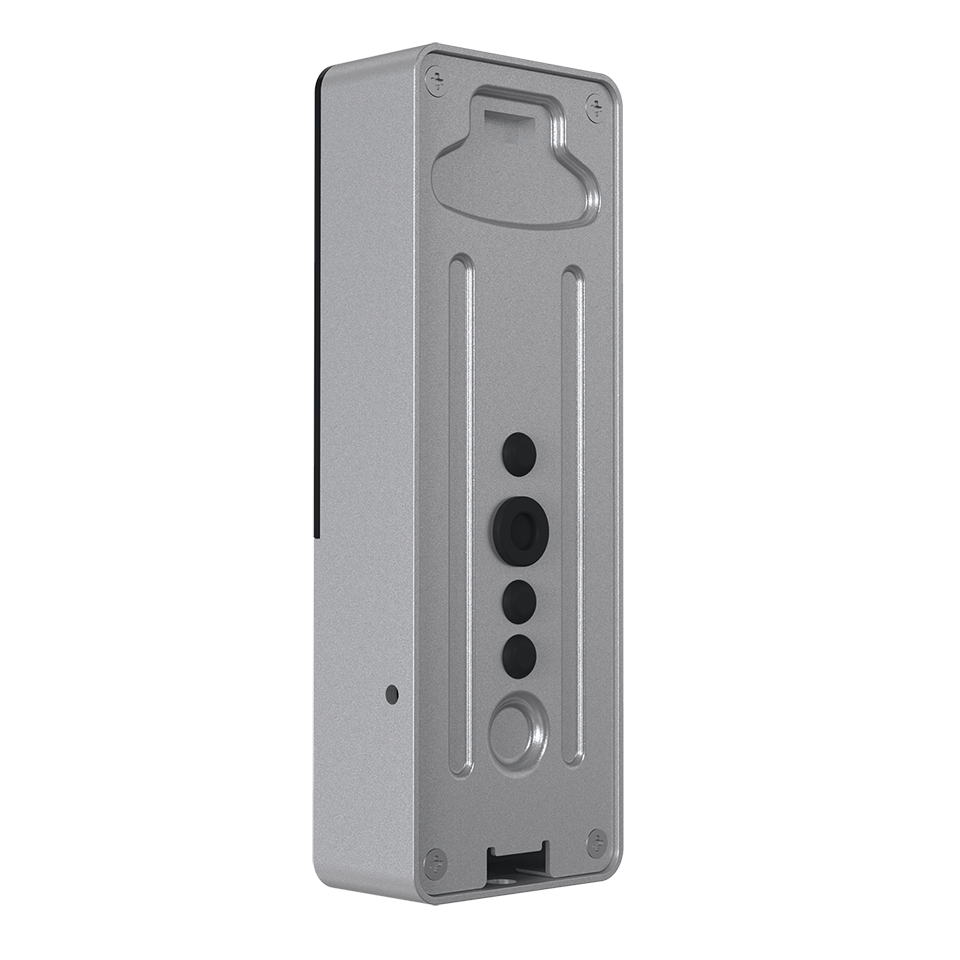

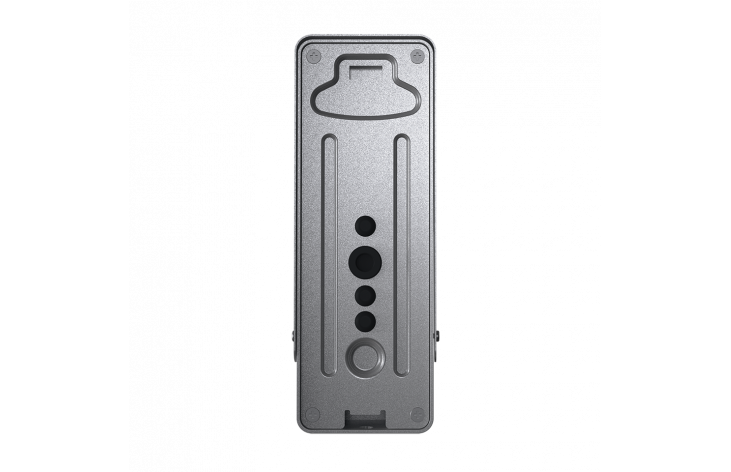

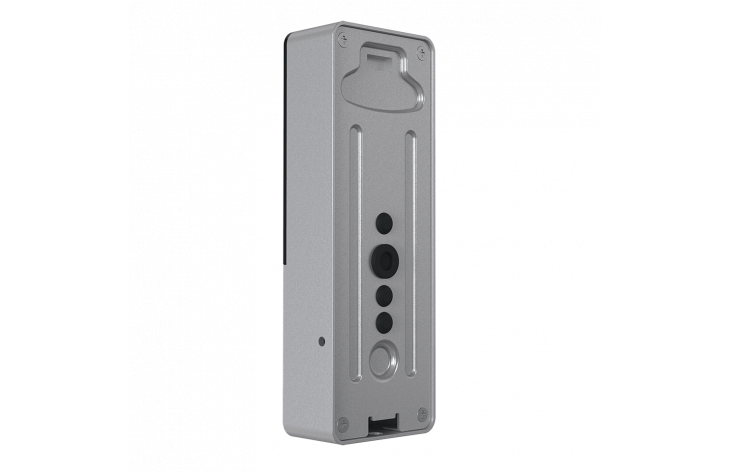

If your monitor doesn’t accept AHD video, a rear switch toggles the ML‑20CRHD to CVBS mode, supporting up to 960 TVL resolution. This versatility ensures smooth integration with nearly every analogue intercom setup.
Slinex ML‑20CRHD – secure, convenient access for the people you trust.
Horizontal viewing angle
115°
Camera resolution
• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)

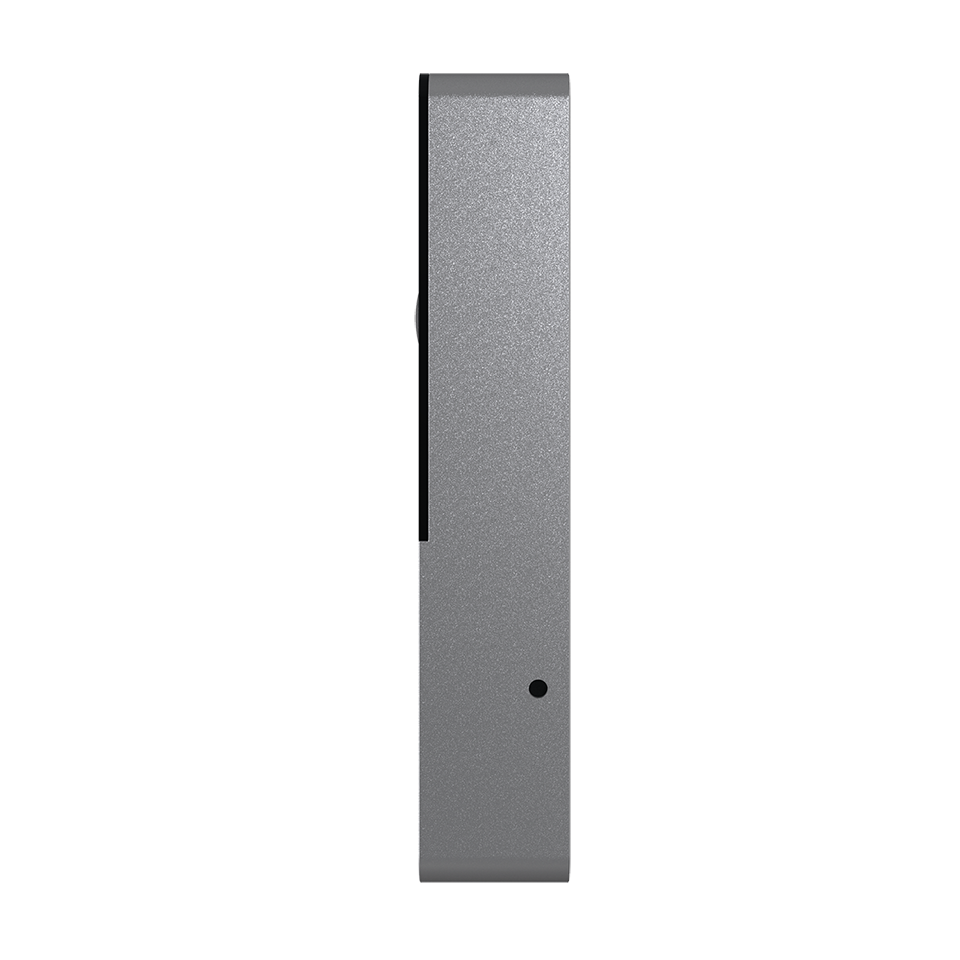

Dimensions
45×130×24 mm
Operating temperature
-40 – +50 °С
Characteristics
- Unique features
- • Switchable camera operation modes: AHD-H, AHD-M, CVBS
• Mechanical IR-cut filter for optimal nighttime visibility
• Touch-sensitive illuminated call button
• Simple video format switching
• EM-Marin card reader for secure access control - Type of sensor
- 1/4" CMOS
- Night backlight
- IR LED, up to 1.5 m
- Minimal illumination
- 0,01 Lux
- Body structure
- Metal alloy
